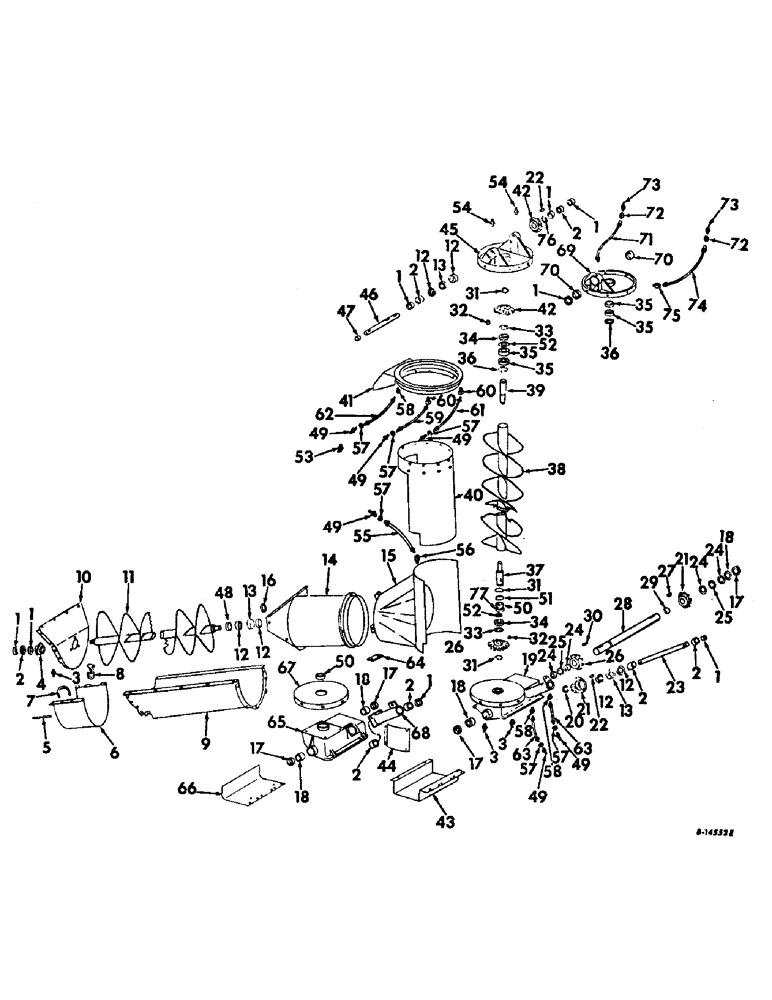

Запчасти Case IH 915 (T-11) - GRAIN TANK AND BAGGER, UNLOADER SLOPING AND VERTICAL AUGERS Grain Tank

1

697494R91

OIL SEAL

SEAL, oil, serial no. 2670 and below, 6 used, serial no. 2671 and above, 4 used

1шт.

2

466509R91

BEARING ASSY

ASSY, serial no. 2670 and below, 5 used, serial no. 2671 and above, 3 used

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str-lub

1шт.

4

160131C91

HUB ASSY, unloader lower auger brg, includes ref nos. 1 and 2

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

54070D

ROD

PIN, unloader lower auger door hinge

1шт.

6

160325C91

DOOR ASSY, unloader lower auger

1шт.

7

155900C1

BOLT,1/4" - 20 x 4.24" W x 1.12" L

unloader lower auger door U

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 hex. w/nylon insert

1шт.

8

155909C1

LATCH

unloader lower auger door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

9

160318C91

TROUGH ASSY, unloader lower auger

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

17шт.

120376

NUT,5/16"-18, G5

17шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

10

160214C1

SUPPORT, unloader lower auger brg

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

7шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

11шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

11

160116C92

AUGER ASSY, unloader lower

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

12

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

thrust

6шт.

13

368372R91

THRUST BEARING

ASSY

3шт.

14

160158C91

TUBE ASSY, unloader lower auger frt

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

8шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

4шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

15

164759C91

HOUSING ASSY, unloader lower auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

13шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

16

M81540

WASHER

unloader lower auger cup

1шт.

17

606749R91

OIL SEAL

ASSY, unloader auger drive shaft oil

2шт.

18

271274R91

NEEDLE BEARING

ASSY, unloader auger drive shaft

2шт.

19

160142C21

HOUSING ASSY, unloader vertical auger lower gear, includes ref nos. 1, 2, 17, 18, 50 and 51, serial no. 1145 and below

1шт.

19

168204C21

HOUSING ASSY, unloader vertical auger lower gear, includes ref nos. 1, 2, 17, 18 and 50, serial no. 1146 thru 2670

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

20

631530R1

RING, SNAP

RING, unloader lower auger drive shaft snap

1шт.

21

166061C91

GEAR-SET

GEAR, unloader sloping auger jackshaft, matched set

1шт.

22

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

23

160190C1

SHAFT, unloader lower auger drive

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

24

160560C1

WASHER

thrust

4шт.

25

568142R91

THRUST BEARING

ASSY

2шт.

26

166063C91

GEAR-SET

GEAR, unloader vertical auger, matched set

1шт.

27

126554

KEY, 5/16 x 1 Woodruff, hard

1шт.

28

160144C2

SHAFT, unloader auger drive

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

1шт.

21226R1

WASHER

1-9/32 x 2 x 11 ga C-Z

3шт.

632156R1

THRUST WASHER

1-9/32 x 2 x 16 ga

8шт.

22182R1

WASHER

1-9/32 x 2 x 20 ga C-Z

2шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

1шт.

29

583976R1

SNAP RING,#125, 1.179", Ext

RING, unloader auger drive shaft snap

1шт.

30

629618R1

KEY, 5/16 x 7/8 sq parallel 5/16" Sq x7/8", Par

1шт.

31

567879R1

RING

unloader vertical auger upper and lower snap

3шт.

32

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

33

157725C1

THRUST WASHER

WASHER, unloader vertical auger driven gear thrust

2шт.

34

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

ASSY

2шт.

35

876871R91

NEEDLE BEARING,1.375" ID x 1.6245" OD x 0.5"

ASSY, unloader vertical auger upper shaft roller

2шт.

36

570449R91

SEAL

unloader vertical auger upper shaft oil

1шт.

37

160149C1

SHAFT, unloader vertical auger lower, serial no. 1145 and below

1шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga

1шт.

37

168205C1

SHAFT, unloader vertical auger lower, serial no. 1146 thru 2670

1шт.

37

172631C2

SHAFT

unloader vertical auger lower, serial no. 2671 and above

1шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

2шт.

162679C1

WASHER

WASHER, 1-13/32 x 2-1/4 x 16 ga hardened

1шт.

38

160143C91

AUGER ASSY, unloader vertical, serial no. 1145 and below

1шт.

38

168201C1

AUGER ASSY, unloader vertical, serial no. 1146 thru 2670

1шт.

38

172623C1

AUGER ASSY, unloader vertical, serial no. 2671 and above

1шт.

39

160150C1

SHAFT, unloader vertical auger upper, serial no. 2670 and below

1шт.

39

172630C1

SHAFT, unloader vertical auger upper, serial no. 2671 and above

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd

1шт.

40

160125C1

TUBE, unloader vertical auger lower

1шт.

41

160007C2

RETAINER, unloader tube swivel female

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

12шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Q103

WASHER

17/64 x 5/8 x 16 ga

12шт.

42

166062C91

GEAR, unloader final auger jackshaft, matched set

1шт.

43

160178C1

COVER, unloader vertical auger lower housing, serial no. 2670 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

44

160132C91

COVER ASSY, unloader vertical tube

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

160005C11

HOUSING ASSY, unloader vertical auger upper gear, includes ref nos. 1, 2, 35 and 36, serial no. 2670 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

5шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

46

160151C1

SHAFT, unloader upper auger drive, serial no. 2670 and below

1шт.

46

172500C1

SHAFT, unloader upper auger drive, serial no. 2671 and above

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

1шт.

654338R1

THRUST WASHER

1-1/32 x 1-1/2 x 22 ga hard

1шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga C-Z

1шт.

38910K

WASHER, 1-1/32 x 1-3/4 x 16 ga hard

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

47

21696R1

SPACER,1" Pipe x 1 3/8"

unloader upper auger drive shaft, serial no. 2670 and below

1шт.

48

166755C91

BEARING ASSY, unloader lower auger upper housing

1шт.

49

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub unloader lower auger upper housing

1шт.

50

876871R91

NEEDLE BEARING,1.375" ID x 1.6245" OD x 0.5"

ASSY, unloader vertical auger lower, 2 used serial no. 1145 and below, 1 used serial no. 1146 and above

1шт.

50

168732C91

CASING, BEARING ROLL,34.925 mm ID x 41.275 mm OD x 12.7 mm

BEARING ASSY, unloader vertical auger lower needle, serial no. 1146 and above

1шт.

51

157724C91

OIL SEAL

ASSY, unloader vertical auger oil, serial no. 1145 and below

1шт.

52

607147R1

WASHER

WASHER, unloader vertical auger driven gear thrust

2шт.

53

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/8-28 45 deg, not for use w/lub hosed

3шт.

54

16964R91

FITTING

1/4-28 90 deg lub, serial no. 2670 and below

2шт.

55

938778R91

HOSE, unloader lower auger upper brg housing lub 17 inches, serial no. 2670 and below

1шт.

55

168361C1

HOSE,0.14" ID x 19.00"

- Unloader lower auger upper brg housing lb, S/N 2671 and above 0.14" ID x 19.00"

1шт.

56

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 90 deg lub

1шт.

57

581873R1

TUBE NUT,4.8 mm Length

1/8-27 hose mounting

6шт.

58

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 45 deg lub hose

3шт.

59

937780R91

HOSE,0.14" ID x 24.00"

Unloader Tube Swivel Female Retainer Center Lube, Serial No. 2670 and Below 0.14" ID x 24.00"

1шт.

59

173033C1

HOSE, unloader tube swivel female, retainer center lb, 25 in., serial no. 2671 and above, includes ref. no. 60

1шт.

60

21450R1

ADAPTER,1/4"-1/8 NPTF

1/4-28 str lub hose

4шт.

61

173033C1

HOSE, unloader tube swivel female retainer, serial no. 2670 and below

1шт.

61

937781R91

HOSE

unloader tube swivel female retainer inner lub, 27 in, serial no. 2671 and above

1шт.

62

937782R91

HOSE

unloader tube swivel female retainer outer lub 31 inches, serial no. 2670 and below

1шт.

62

174879C1

HOSE, unloader tube swivel female retainer outer lub, 33 in., serial n. 2671 and above

1шт.

63

937768R91

HOSE, unloader vertical auger lower gear housing lub 6 in.

1шт.

63

937769R91

HOSE, unloader vertical auger lower gear housing lub, 7 in.

1шт.

64

574765R1

STRAP, unloader tube tie

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

65

172615C11

HOUSING ASSY, unloader vertical auger lower gear, serial no. 2671 and above, includes ref nos. 17, 18, 50 and 78

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

66

172632C1

COVER, vertical auger lower gear housing, serial no. 2671 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

67

172633C1

COVER, vertical auger lower

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

68

175034C91

TUBE ASSY, unloader drive shaft bearing, serial no. 2671 and above, includes ref. nos. 1 and 2

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

69

172502C11

HOUSING ASSY, unloader vertical auger upper gear, serial no. 2671 and above, includes ref. nos. 1, 35, 36 and 70

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

70

454945R91

BEARING ASSY,25.4 mm ID x 31.763 mm OD x 19.05 mm

ASSY, unloader upper auger shaft, serial no. 2671 and above

1шт.

71

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Unloader Vertical Auger Upper Gear Housing Lube, Serial No. 2671 and Above 0.14" ID x 22.00"

1шт.

72

581873R1

TUBE NUT,4.8 mm Length

unloader vertical auger upper gear housing lub hose, serial no. 2671 and above

2шт.

73

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub, serial no. 2671 and above

1шт.

74

937772R91

HOSE,0.14" ID x 10.00"

Unloader Upper Gear Housing Lub 10 inch, Serial No. 2671 and Above 0.14" ID x 10.00"

1шт.

75

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

unloader upper gear housing lub hose, 90 deg, serial no. 2671 and above

1шт.

76

631530R1

RING, SNAP

RING, upper auger drive shaft bearing snap

1шт.

77

179014C91

OIL SEAL

unloader vertical auger upper oil

1шт.
