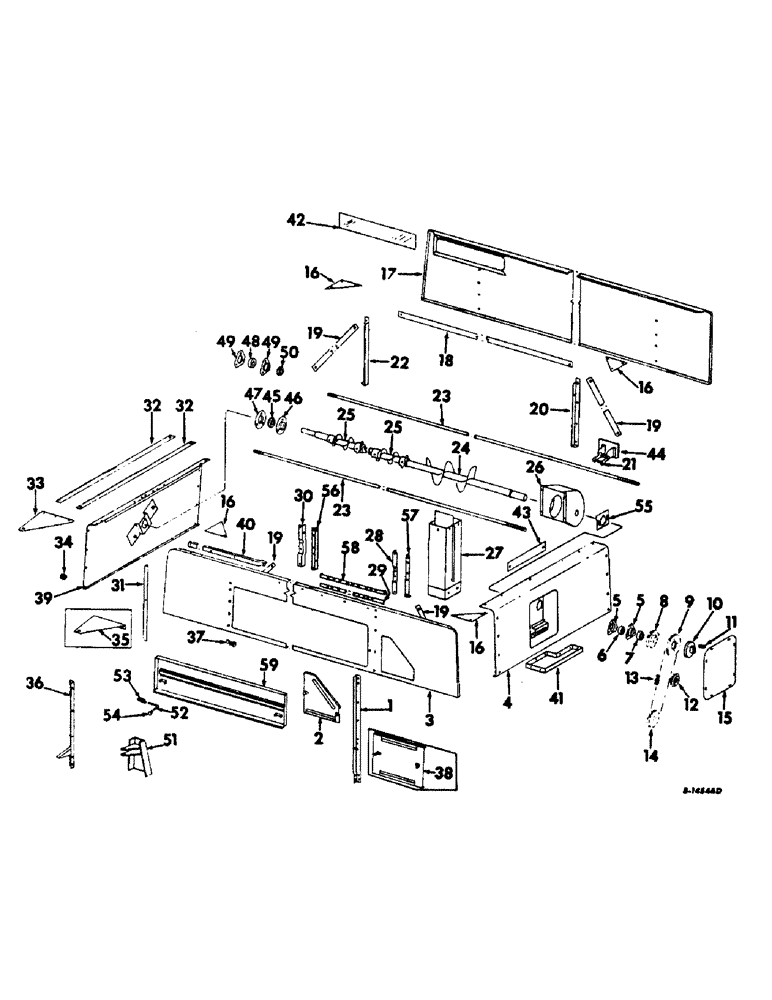

Запчасти Case IH 915 (T-05) - GRAIN TANK AND BAGGER, GRAIN TANK EXTENSIONS AND DISTRIBUTOR AUGER Grain Tank

1

160703C1

ANGLE, grain tank rear right support, DT407 diesel and all V-8 engines

1шт.

1

174367C1

ANGLE, grain tank rear right support, DT414 diesel engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

170285C1

DOOR, grain tank rear right, serial no. 2349 and below

1шт.

3

170308C1

SIDE, grain tank upper rear, for gas or LP gas engine not high capacity grain tank, serial no. 2349 and below

1шт.

3

170309C1

SIDE, grain tank ext rear, for gas or LP gas engine and high capacity grain tank, serial no. 2349 and below

1шт.

3

170423C1

SIDE, grain tank upper rear, for diesel engine not high capacity grain tank, serial no. 2349 and below

1шт.

3

170424C1

SIDE, grain tank ext rear, for diesel engine and high capacity grain tank, serial no. 2349 and below

1шт.

3

174295C1

SIDE, grain tank upper rear, not for high capacity grain tank, serial no. 2350 and above

1шт.

3

174292C1

SIDE, grain tank ext rear, for high capacity grain tank, serial no. 2350 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

15шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

15шт.

4

170310C2

SIDE ASSY, grain tank upper right, not high capacity grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

21шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

21шт.

4

170315C2

SIDE ASSY, grain tank ext right, for high capacity grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

27шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

27шт.

4

170312C1

SIDE ASSY, grain tank top right, for raised leveling auger, auger

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

23шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt truss-hd

23шт.

5

571424R1

FLANGE

grain tank distributor auger brg RH

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

6

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING ASSY, grain tank distributor auger RH

1шт.

7

564853R11

COLLAR

w/set screw lkg RH

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc hd cup pt set

1шт.

8

SPROCKET, grain elevator drive, refer to grain elevator drive section S for listing

1шт.

9

162180C1

SPROCKET ASSY.

SPROCKET, grain tank distributor auger driven 33T, not for fast speed auger drive

1шт.

9

168149C1

SPROCKET

grain tank distributor auger driven 24T, for fast speed auger drive

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

939279R1

HUB

grain tank distributor auger driven sprocket, not used w/raised leveling auger

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

2шт.

102883

SET SCREW

5/16 x 3/4 sq-hd cup pt-set

2шт.

11

Q53

KEY,1/4" Sq x 1", Par

1шт.

12

631905R91

SPROCKET

ASSY, grain tank distributor auger drive chain tightener 17T

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

13

CHAIN ASSY, grain tank leveling auger drive, use 139 links from 10-ft roll marked 1791D, 1 connecting link 1310D and 2 offset links 1315D, not high capacity grain tank

1шт.

13

CHAIN ASSY, grain tank leveling auger drive, use 171 links from 10-ft roll marked 1791D, 1 connecting link 1310D and 3 offset links 1315D, for high capacity grain tank

1шт.

13

CHAIN ASSY, grain tank leveling auger drive, use 135 links from 10-ft roll marked 1791D, 1 connecting link 1310D and 1 offset links 1315D, for standard grain tank ext w/fast speed auger drive

1шт.

13

CHAIN ASSY, grain tank leveling auger drive, use 165 links from 10-ft roll marked 1791D, 2 connecting links 1310D, 2 offset links 1315D and 1 roller link 1309D, for high capacity grain tank w/fast speed auger drive

1шт.

14

SPROCKET, elevator drive slip clutch, refer to grain elevator drive, section S for listing

1шт.

15

160554C1

COVER, grain tank well, serial no. 1249 and below

1шт.

15

170294C1

DOOR

COVER, grain tank well, serial no. 1250 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

16

160555C1

BAR, grain tank top section corner

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

17

160520C1

SIDE, grain tank upper front, for standard grain tank ext

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

164783C91

SIDE ASSY, grain tank ext front, for high capacity grain tank

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

160656C1

BAR, grain tank front cross

1шт.

19

160654C1

BAR, grain tank rear top to side tie, 4 used serial no. 2349 and below 2 used serial no. 2350 and above

1шт.

19

174311C1

BAR, grain tank rear top to side tie, serial no. 2350 and above

2шт.

20

160662C1

SUPPORT, grain tank front right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

160707C91

CONVEYOR ASSY, grain elevator extension, includes ref no. 44, for high capacity grain tank, serial no. 2349 and below

1шт.

22

160661C1

SUPPORT, grain tank front left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

160659C1

ROD, grain tank side tie

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24

160800C92

AUGER ASSY, grain tank distributor, not used w/raised leveling auger

1шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga C-Z

4шт.

25

162103C91

AUGER

ASSY, grain tank distributor extension, not used w/raised leveling auger

2шт.

102604

SET SCREW,Hex Skt, 7/16" - 14 x 1/2"

4шт.

26

160720C91

SPOUT, DISCHARGE

SPOUT ASSY, grain elevator head, for standard grain tank ext

1шт.

26

160715C91

SPOUT, DISCHARGE

SPOUT ASSY, grain elevator head, foor high capacity tank or w/raised level auger

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 3/4 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

160725C91

HOUSING ASSY, grain elevator extension, for high capacity grain tank, serial no. 2349 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

28

160913C1

ANGLE, grain tank rear right support, for high capacity grain tank, serial no. 2349 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

29

160653C1

BAR, grain tank rear top, serial no. 2349 and below

1шт.

30

160912C1

ANGLE, grain tank rear support left, for high capacity grain tank, serial n. 2349 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

162460C1

ANGLE, grain tank unloader vertical tube pivot corner, for high capacity grain tank

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

160651C1

BAR, grain tank front to rear tie, for high capacity grain tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

33

160668C1

SUPPORT, unloader upper pivot, not high capacity grain tank

1шт.

34

622567R1

WASHER

SPACER, unloader pivot support

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

35

167284C91

SUPPORT ASSY, grain tank unloader upper pivot, for high capacity grain tank

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

36

160824C91

SUPPORT ASSY, grain tank rear left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

37

565449R1

CLIP

grain tank rear door

20шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

20шт.

935736R1

NUT, WING

NUT, 5/16 wing

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

38

166537C91

DOOR ASSY, grain tank rear, serial no. 1249 and below

1шт.

38

568807R1

DOOR, grain tank rear, serial no. 1250 thru 2349

1шт.

39

160691C91

SIDE ASSY, grain tank upper left, for standard grain tank ext

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

17шт.

39

160879C91

SIDE ASSY, grain tank ext left, for high capacity grain tank

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

21шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

21шт.

40

162461C1

ANGLE, grain tank unloader vertical tube pivot support, for high capacity grain tank

1шт.

41

160552C1

SUPPORT, grain tank well bottom

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss-hd

1шт.

42

WINDOW, grain tank ext 36.74 x 7.50 x 1/8 thick plexiglass, procure form local glass co.

1шт.

43

169192C1

STRAP, elevator head shaft bearing, not used w/raised leveling auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

44

160704C1

FLIGHT, grain elevator conveyor, serial no. 2349 and below

3шт.

45

170278C11

BEARING

HOUSING, w/needle bearing distributor auger LH, serial no. 1250 and above

1шт.

46

937518R91

FLANGE

w/str lub fitting LH brg, serial no. 1250 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

937517R1

FLANGE

LH brg grooved, serial no. 1250 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

48

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING ASSY, grain tank distributor auger ball bearing LH, serial no. 1249 and below

1шт.

49

571424R1

FLANGE

grain tank distributor auger brg LH, serial no. 1249 and below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

50

564853R11

COLLAR

w/set screw lkg LH, for use w/160796C91 ball bearing assy, serial no. 1249 and below

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup pt set

1шт.

51

167706C1

SUPPORT ASSY, unloader swing cylinder anchor

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

52

168433C1

PIN, grain tank rear door lock, serial no. 2350 and above

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

53

606245R1

SPRING

grain tank rear door lock pin, serial no. 2350 and above

2шт.

54

166918C1

KNOB, grain tank rear door lock pin, serial no. 2350 and above

2шт.

55

169178C1

PLATE, grain tank distributor auger RH brg, not raised leveling auger

1шт.

55

172411C1

PLATE, grain tank distributor auger RH brg, for raised leveling auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

2шт.

56

174301C1

ANGLE ASSY, grain tank rear support LH, not high capacity grain tank, serial no. 2350 thru 3479

1шт.

56

174302C1

ANGLE, grain tank rear support LH, not high capacity grain tank, serial no. 3480 and above

1шт.

56

174305C1

ANGLE ASSY, grain tank rear support LH, for high capacity grain tank, serial no. 2350 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

57

174303C1

ANGLE ASSY, grain tank rear support RH, not high capacity grain tank, serial no. 2350 thru 3479

1шт.

57

174304C1

ANGLE, grain tank rear support RH, not high capacity grain tank, serial no. 3480 and above

1шт.

57

174307C1

ANGLE ASSY, grain tank rear support RH, for high capacity grain tank, serial no. 2350 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

58

174310C1

BAR, grain tank rear top, serial no. 2350 and above

1шт.

59

174299C1

DOOR ASSY, grain tank rear, serial no. 2350 and above

1шт.
