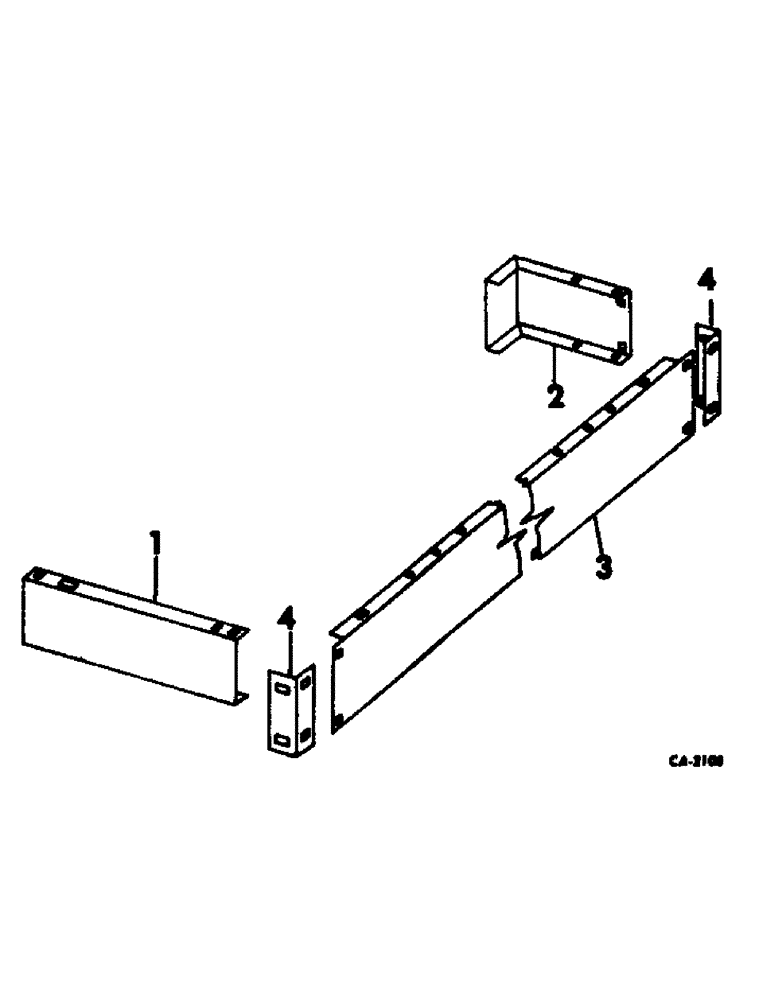

Запчасти Case IH 915 (T-04) - GRAIN TANK AND BAGGER, GRAIN TANK EXTENSION FOR BEAN SPECIAL COMBINES Grain Tank

1

174171C1

SIDE, grain tank ext left

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

174175C1

SIDE, grain tank ext right

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

174177C1

SIDE, grain tank extension rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

15шт.

120376

NUT,5/16"-18, G5

15шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

4

174178C1

ANGLE, grain tank extension side tie

2шт.
