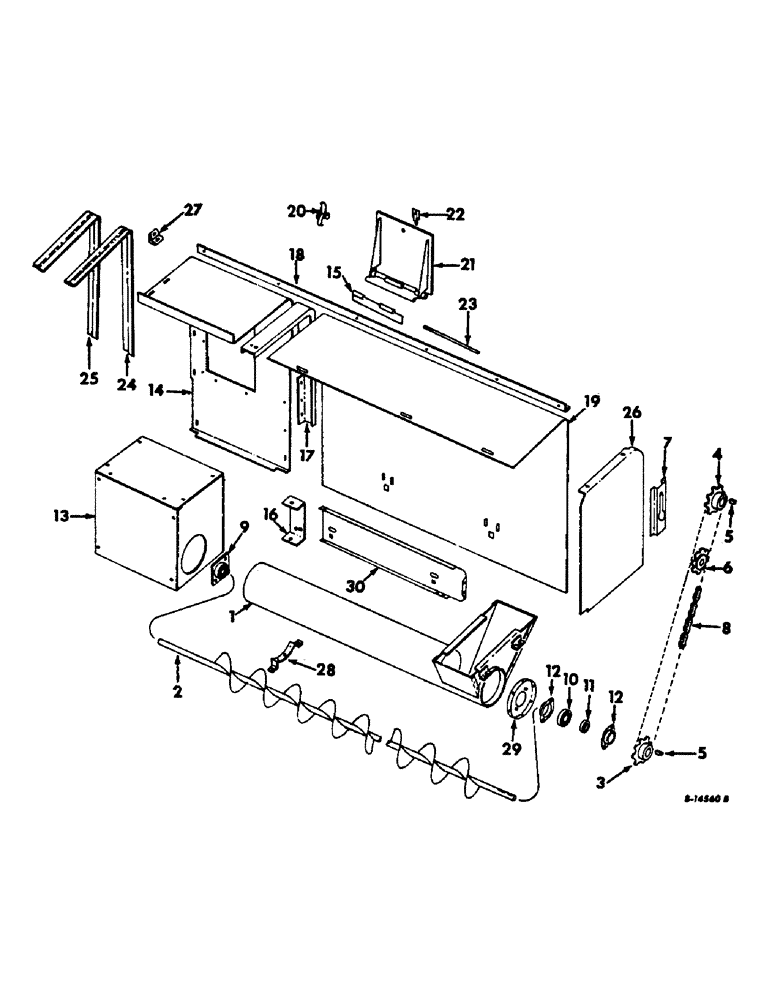

Запчасти Case IH 915 (S-15) - ELEVATORS, TAILINGS DELIVERY AUGER AND DRIVE Elevators
№
Артикул
Название
Примечание
Количество
1
164457C91
SPOUT, DISCHARGE
SPOUT ASSY, tailings delivery
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
2
160565C92
AUGER
ASSY, tailings delivery
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 C-Z
8шт.
3
160445C1
SPROCKET ASSY.
SPROCKET, tailings delivery auger drive 8T, serial no. 1088 and below
1шт.
3
168689C1
SPROCKET ASSY.
SPROCKET, tailings delivery auger drive 9T, serial no. 1089 and above
1шт.
4
160445C1
SPROCKET ASSY.
SPROCKET, tailings delivery auger driven 8 T
1шт.
5
124551
SCREW
1/4 x 7/8 Woodruff
2шт.
20180R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2
BOLT, 1/2 x 2 C-Z sq-nk crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga C-Z
1шт.
607896R1
SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole
17/32 sq x 1-1/4 x 11 ga C-Z
2шт.
7
160449C1
SUPPORT
tailings delivery auger drive chain tightener sprocket
1шт.
12653R1
BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2
BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
142619H
WASHER
11/32 x 3/4 x 11 ga C-Z
3шт.
8
CHAIN ASSY, tailings delivery auger drive, use 21 links from 10-ft roll marked 569089R91 one connecting link 587372R91 and one offset link 456929R91
1шт.
9
631527R91
BALL BEARING
ASSY, tailings delivery auger LH
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
10
564991R91
BEARING
ASSY, tailings delivery auger RH
1шт.
11
658006R11
COLLAR
w/set screw, lkg
1шт.
12
612031R1
FLANGED BEARING
tailings delivery auger rt brg
2шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
13
164452C91
HOUSING ASSY, tailings check
1шт.
120376
NUT,5/16"-18, G5
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
18шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
18шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
14
164501C1
COVER, tailings distributor auger LH
1шт.
15
164502C11
HINGE ASSY, tailings check door
1шт.
172455
SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"
SCREW, 5/16 x 3/4 hex-hd
1шт.
16
167980C11
SUPPORT ASSY, tailings auger cover sheet
1шт.
17
167981C1
CHANNEL, tailings auger cover sheet
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
3шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
3шт.
18
167983C11
ANGLE ASSY, tailings auger cover support
1шт.
19
164499C21
SHEET ASSY, tailings distributor auger RH
1шт.
20
168481C1
LATCH ASSY.
LATCH, tailings auger cover
2шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
no. 10 x 1/2 C-Z slt-pan-hd
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
607893R1
WASHER
13/64 x 1/2 x 16 ga C-Z
4шт.
21
164475C91
DOOR ASSY, tailings check
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
2шт.
22
167800C1
CLIP
LOCK, tailings check door
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
1шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
no. 10 x 1/2 C-Z slt-pan-hd
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
23
160748C1
PIN
ROD, tailings check door hinge
1шт.
24
161748C11
SUPPORT ASSY, tailings distributing auger cover extension
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
5шт.
25
161749C1
SUPPORT, tailings distributing auger cover LH extension, not for use w/operators cab
1шт.
18653R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 C-Z hex-hd mach
6шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
120376
NUT,5/16"-18, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
26
161750C1
SUPPORT, tailings distributing auger cover RH extension
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1/4 C-Z flange lock
9шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
9шт.
27
631818R1
CLIP, tailings distributing auger LH cover
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd mach
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
28
165764C1
SADDLE, tailings delivery auger tube
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
161108C1
BOLT,Hex Serr, 1/4" - 20 x 1/2"
SCREW, 1/4 x 1/2 C-Z slt truss hd
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt truss hd
2шт.
29
160675C1
WASHER
SUPPORT, tailings delivery auger right bearing
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
6шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-z slt-truss-hd
6шт.
30
168485C1
SECTION, RH side tank trim
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
4шт.
Выбрано товаров: 88
