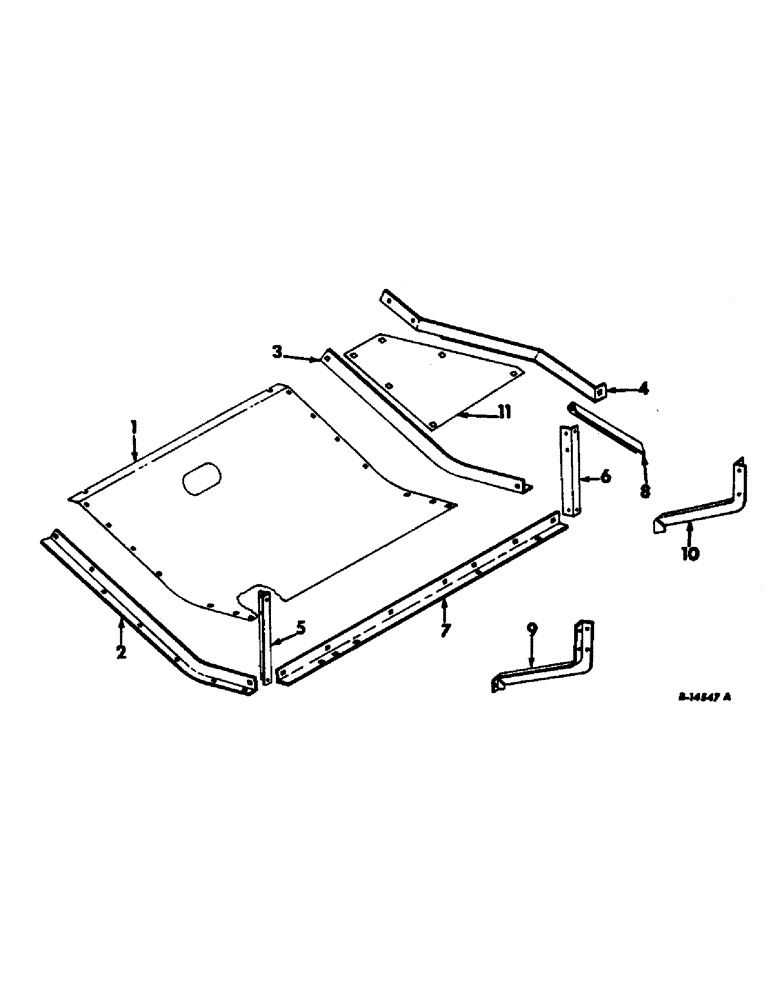

Запчасти Case IH 915 (S-11) - ELEVATORS, GRAIN AUGER TROUGH SHIELD Elevators

1

170483C1

SHIELD, grain auger trough bottom

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

19шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

2

162078C1

ANGLE, grain auger trough bottom shield left

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

3

162079C1

ANGLE, grain auger trough bottom shield right

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq nk crg

3шт.

271501

SOCKET

NUT, 7/16 C-Z hex

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

4

164207C91

SUPPORT ASSY, grain auger bottom outer

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z med lock

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

5

162083C1

SUPPORT, grain auger trough bottom shield rear left

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

176022

SPROCKET

SCREW, 3/8 x 1-1/2 C-Z hex-hd tap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

162084C1

SUPPORT, grain auger trough bottom shield rear right

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

176022

SPROCKET

SCREW, 3/8 x 1-1/2 C-Z hex-hd tap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

162082C1

ANGLE, grain auger trough bottom shield rear

1шт.

8

162080C1

BRACE, grain auger trough bottom shield

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

9

164841C1

SUPPORT, grain auger bottom shield LH

1шт.

10

164842C1

SUPPORT, grain auger bottom shield RH

1шт.

11

170484C1

SHIELD, grain auger trough bottom RH

1шт.
