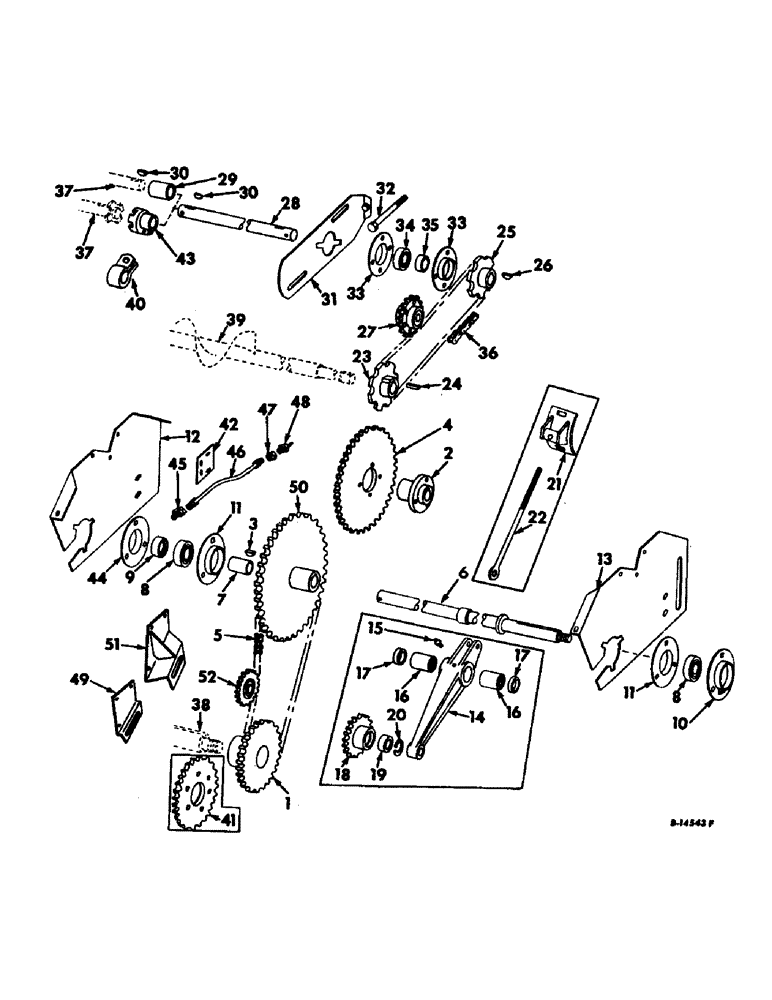

Запчасти Case IH 915 (S-08) - ELEVATORS, GRAIN ELEVATOR DRIVE Elevators

1

160237C91

SPROCKET ASSY.

SPROCKET ASSY, elevator jackshaft drive 25T, mechanical cylinder drive serial no. 2349 & below, all combines serial no. 2350 & above

1шт.

2

160622C1

HUB, elevator jackshaft driven sprocket, mechanical cylinder drive, serial no. 2670 and below

1шт.

2

164193C2

HUB, jackshaft driven sprocket, variable cylinder drive, serial no. 2670 and below

1шт.

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

557266R1

WASHER, 15/32 x 1-3/4 x 16 ga

4шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff hard

1шт.

4

160621C1

SPROCKET, elevator jackshaft driven 47T, serial no. 2670 and below

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach.

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

CHAIN ASSY, elevator jackshaft drive, use 73 links from 10-ft roll marked 1793D, one connecting link 1786D and one offset link 1318D

1шт.

6

160623C11

SHAFT

ASSY, elevator drive jack, mechanical cylinder drive, serial no. 2349 and below

1шт.

6

164192C11

SHAFT ASSY, elevator drive jack, variable cylinder drive, serial no. 2349 and below

1шт.

6

174441C1

SHAFT ASSY, elevator drive jack, mechanical cylinder drive, serial no. 2350 thru 2670

1шт.

6

174442C1

SHAFT ASSY, elevator drive jack, variable cylinder drive, serial no. 2350 thru 2670

1шт.

6

172460C11

SHAFT

ASSY, elevator drive jack, serial no. 2671 and above

1шт.

22244R1

LOCK NUT

3/4-10 C-Z hex nylon insert lock

1шт.

467750R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

21753R1

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

2шт.

21714R1

WASHER

1-5/32 x 2 x 11 ga C-Z

2шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga C-Z

7шт.

21716R1

WASHER

1-5/32 x 2 x 16 ga C-Z

2шт.

7

174439C1

SPACER, elevator jackshaft, serial no. 2670 and below

1шт.

8

939475R91

BEARING

ASSY, elevator jackshaft ball, serial no. 2349 and below

2шт.

8

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, elevator jackshaft ball, serial no. 2350 and above

2шт.

9

557115R11

COLLAR

COLLAR, w/set screw, jackshaft LH brg lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup-pt

1шт.

10

939460R91

FLANGE

w/65 deg lub fitting, jackshaft

1шт.

11

939461R1

FLANGE

jackshaft brg grooved

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

169212C1

SUPPORT

jackshaft brg inner

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

13

160627C1

SUPPORT, jackshaft brg outer, serial no. 1249 and below

1шт.

13

169289C1

SUPPORT, jackshaft bearing outer, serial no. 1250 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

3шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

160678C11

LEVER, w/brgs and seals, jackshaft chain idler, includes ref nos. 16 and 17, serial no. 2670 and below

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 2670 and below 1/8"-27 x .66 lg

1шт.

16

454256R91

BEARING CUP,Needle, 28.56mm ID x 38.11mm OD x 19.05mm W

ASSY, roller, serial no. 2670 and below

2шт.

17

460550R91

OIL RESERVOIR

SEAL ASSY, oil, serial no. 2670 and below

2шт.

21885R1

WASHER

1-1/32 x 2 x 16 ga C-Z

8шт.

18

160679C91

SPROCKET ASSY, jackshaft drive chain tightener, 16 T, serial no. 2670 and below

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 5/8 x 3 C-Z hex-hd mach.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

5шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, jackshaft drive chain tightener sprocket ball, serial no. 2670 and below

1шт.

20

571393R1

SNAP RING

RING, jackshaft tightener sprocket snap, serial no. 2670 and below

2шт.

21

160750C91

SUPPORT ASSY, jackshaft drive chain tightener draw bolt pivot, serial no. 2670 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

160749C1

BOLT

jackshaft drive tightener draw, serial no. 2670 and below

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-3/8 C-Z std-hd

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

23

168687C1

DRIVE SPROCKET

SPROCKET ASSY, grain elevator drive 19T, not raised leveling auger or bean special, serial no. 1089 and above

1шт.

23

167448C1

SPROCKET ASSY, grain elevator drive 22T, not raised leveling auger or bean special, serial no. 1088 and below

1шт.

23

167449C1

SPROCKET ASSY.

SPROCKET ASSY, grain elevator drive 16T, standard for corn special, for fast speed grain tank lever auger drive att

1шт.

23

162463C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator drive 27T, for bean special

1шт.

24

Q53

KEY,1/4" Sq x 1", Par

1шт.

25

167449C1

SPROCKET ASSY.

SPROCKET ASSY, grain elev driven 16T, not bean special or fast speed grain tank level auger drive att

1шт.

25

162463C91

SPROCKET ASSY.

SPROCKET ASSY, grain elev driven 27T, bean special

1шт.

25

168687C1

DRIVE SPROCKET

SPROCKET ASSY, grain elev driven 19T, standard for corn special, for fast speed grain tank lever auger drive att

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z

2шт.

26

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

27

594706R91

SPROCKET ASSY.,15T

SPROCKET ASSY, grain elevator drive chain tightener 15T

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 C-Z sq-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga C-Z

1шт.

28

160692C1

SHAFT

grain elevator drive extension

1шт.

29

160693C1

COUPLING, grain elevator drive extension shaft, serial no. 1249 and below

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3516

PIN

1/4 x 2 std-hd

2шт.

30

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2 used S/N 1249 and below, 1 used S/N 1250 and above #15, 1/4" x 1", HT

1шт.

31

160428C11

SUPPORT

w/nut, grain elevator drive extension shaft, not used w/raised leveling auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

grain elevator drive adj, not used w/raised leveling auger

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

33

155265C1

FLANGE

grain elevator drive extension shaft brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING ASSY, grain elevator drive extension shaft ball

1шт.

35

564853R11

COLLAR

w/set screw, brg lkg

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt

1шт.

36

CHAIN ASSY, grain elevator drive, for standard grain tank extension, use 53 links from a 10-ft roll marked 1791D, one connecting link 1310D and 2 offset links 1315D

1шт.

36

CHAIN ASSY, grain elevator drive, for high capacity grain tank, use 45 links from 10-ft roll marked 1791D, one connecting link 1310d and one offset link 1315D

1шт.

37

HEADSHAFT, grain elevator, refer to grain elevator unit for listing

1шт.

38

SHAFT, cylinder beater, refer to section R, cylinder beater grate & concave unit for listing

1шт.

39

AUGER, grain tank distributor, refer to section T, grain tank extension & distributor auger unit for listing

1шт.

40

561695R11

CLAMP ASSY, grain elevator drive coupling, includes 181646 bolt, 120369 nut and 120382 washer, serial no. 1249 and below

1шт.

41

163877C1

SPROCKET ASSY.

SPROCKET, elevator jackshaft drive 25T, variable cylinder drive, serial no. 2349 and below

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

6шт.

20571R1

SCREW, 7/16 x 7 C-Z hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

42

169213C1

PLATE, tightener pivot inner bearing support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

43

939108R1

COUPLING

grain elev drive ext shaft, serial no. 1250 and above

1шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

1/2 x 2-1/4 znd hex-hd mach

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex. type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

44

939460R91

FLANGE

w/65 deg lub fitting, jackshaft, serial no. 2349 and below

1шт.

44

164948C91

FLANGE

w/str lub adapter, inner brg, serial no. 2350 and above

1шт.

45

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

90 deg elbow lub hose

1шт.

46

937775R91

HOSE,3.56mm ID x 330.2mm L

Inner Brg Lub 0.14" ID x 13.00"

1шт.

47

581873R1

TUBE NUT,4.8 mm Length

inner brg lub hose clamp

1шт.

48

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lub

1шт.

49

172463C1

BRACKET

elevator jackshaft drive chain tightener, variable cyl drive, serial no. 2671 and above

1шт.

50

172465C1

SPROCKET ASSY.

SPROCKET ASSY, elevator jackshaft driven, 47T, serial no. 2671 and above

1шт.

NLS

NO LONGER SERVICED

5/16 hex. jam

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 sq-hd set

1шт.

51

172461C1

BRACKET

ASSY, elevator jackshaft drive chain tightener, mechanical cyl drive, serial no. 2671 and above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

1шт.

52

154113C91

DRIVE SPROCKET

SPROCKET ASSY, elevator jackshaft drive chain tightener, 13T, serial no. 2671 and above

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga C-Z sq

1шт.
