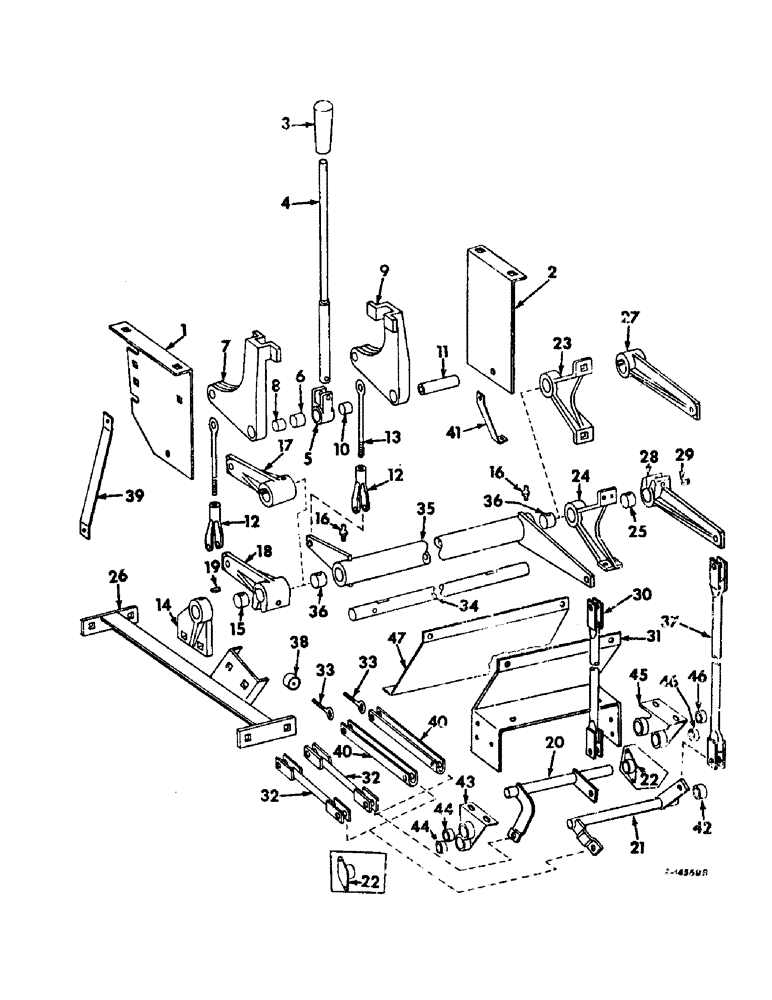

Запчасти Case IH 915 (H-15) - CONTROLS, TRANSMISSION GEAR SHIFT CONTROL Controls

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

1

165284C1

SECTOR, gear shift pattern front

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

164669C1

SECTOR, gear shift pattern rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

157473C1

KNOB

GRIP, gear shift rod

1шт.

4

164694C91

ROD ASSY, gear shift

1шт.

5

157360C11

ARM

w/BUSHING, gear shift rod, includes ref. no. 6

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

1шт.

6

568920R1

BUSHING

gear shift rod arm

1шт.

7

164697C11

LEVER w/BUSHING, gear shift left, includes ref. no. 8

1шт.

8

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

gear shift left lever

1шт.

9

164698C11

LEVER w/BUSHING, gear shift right, includes ref. no. 10

1шт.

10

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

gear shift right lever

1шт.

11

564519R1

BUSHING, gear shift lever pivot

1шт.

19677R1

BOLT, 3/8 x 4-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

12

144243

CLEVIS

3/8-24 x 2-1/2 C-Z LT adj rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

2шт.

13

164699C1

EYE BOLT, gear shift

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1-7/32 rod end

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

14

164591C11

SUPPORT w/BUSHING, gear shift front, serial no. 1145 and below

1шт.

14

169296C11

SUPPORT w/BUSHING, gear shift front, includes ref. no. 15, serial no. 1146 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

front support, serial no. 1145 and below

1шт.

15

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

front support, serial no. 1146 and above

1шт.

16

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg angle lub

2шт.

17

164707C1

ARM, gear selector outer front, serial no. 1145 and below

1шт.

616255R1

LOCK PIN,1/4" x 1 5/8", Slotted

Pin, 1/4" x 1 5/8", Slotted

1шт.

18

169301C1

ARM, gear selector outer front, serial no. 1146 and above

1шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex.

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff, serial no. 1145 and below

1шт.

19

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff, serial no. 1146 and above

1шт.

20

165407C91

CRANK ASSY, transmission shift upper, serial no. 1249 and below

1шт.

20

170389C1

CRANK ASSY, transmission shift upper, serial no. 1250 and above

1шт.

21

165411C91

CRANK ASSY, transmission shift lower, serial no. 1249 and below

1шт.

21

169317C1

CRANK ASSY, transmission shift lower, serial no. 1250 and above

1шт.

22

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, transmission shift crank, serial no. 1249 and below

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

23

164700C11

BLOCK w/BUSHING, gear selector rear, includes ref. no. 25, serial no. 1145 and below

1шт.

24

169304C11

SUPPORT w/BUSHING, gear selector rear, includes ref. no. 25, serial no. 1146 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

pivot, serial no. 1145 and below

1шт.

25

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

pivot, serial no. 1146 and above

1шт.

26

167043C91

BRACKET ASSY, gear shift front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

27

164706C1

ARM, gear selector outer rear, serial no. 1145 and below

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

1шт.

28

169303C1

ARM, gear selector outer rear, serial no. 1146 and above

1шт.

21333R1

NUT,3/8"-16, G8

3/8 C-Z hex.

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

KEY, 1/4 x 1 Woodruff, serial no. 1145 and below

1шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff, hard, serial no. 1146 and above

1шт.

30

165425C91

LINK ASSY, vertical shift front, serial no. 1249 and below

1шт.

30

170387C1

LINK ASSY, vertical shift front, serial no. 1250 and above

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

2шт.

31

167795C1

BRACKET ASSY, transmission shift, serial no. 1145 and below

1шт.

31

169453C1

BRACKET ASSY, transmission shift, serial no. 1146 thru 1251

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

32

165421C91

LINK ASSY, horizontal shift, serial no. 1145 and below

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

4шт.

33

167997C1

BOLT

shifter rail eye

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

34

164696C1

SHAFT, gear selector upper, serial no. 1145 and below

1шт.

34

169302C1

SHAFT, gear selector upper, serial no. 1146 and above

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

8шт.

35

164702C91

CRANK w/BUSHINGS, gear selector, serial no. 1145 and below

1шт.

35

169297C91

CRANK w/BUSHINGS, selector, includes ref. no. 36, serial no. 1146 and above

1шт.

36

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

rear selector crank, serial no. 1145 and below

2шт.

36

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

rear selector crank, serial no. 1146 and above

2шт.

37

165425C91

LINK ASSY, vertical shift rear

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

2шт.

38

168966C1

STOP ASSY, 2nd & 3rd shift rail, serial no. 1249 and below

1шт.

38

170554C1

STOP ASSY, 2nd & 3rd shift rail, serial no. 1250 and above

1шт.

39

168968C1

STRAP, transmission shift support

1шт.

40

169451C1

LINK, horizontal shift, serial no., Serial Range: 1145-1249

2шт.

40

170386C1

LINK, horizontal shift, serial no. 1250 and above

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 rod end

4шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

41

169322C1

STRAP, selector support, serial no. 1146 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

42

568675R1

SPACER,1 1/8" Tube x 1/2"

lower shift crank, serial no. 1250 and above

1шт.

43

170392C11

BRACKET w/BUSHINGS, lower front pivot, includes ref. no. 44, serial no. 1250 and above

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

44

561905R1

BUSHING

lower front, serial no. 1250 and above

2шт.

45

170393C11

BRACKET w/BUSHINGS, lower rear pivot, includes ref. no. 46, serial no. 1250 and above

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

46

561905R1

BUSHING

lower rear

2шт.

47

169312C1

BRACE, lower front, serial no. 1252 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
