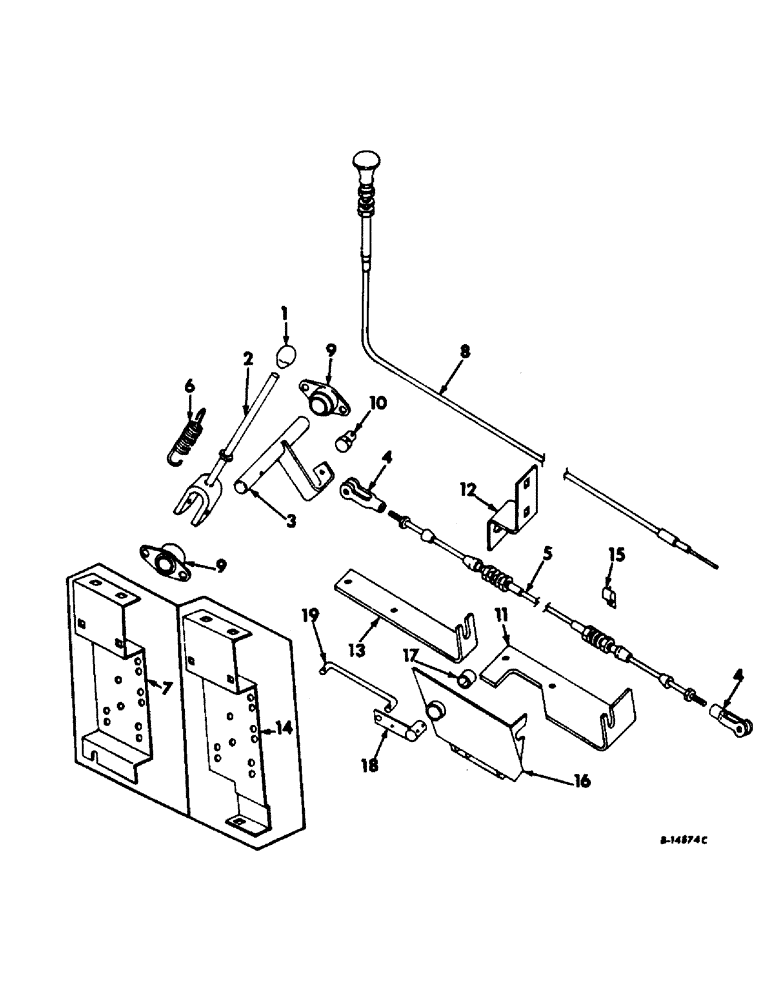

Запчасти Case IH 915 (H-13) - CONTROLS, THROTTLE CONTROL Controls

1

167012C1

KNOB, throttle control lever

1шт.

2

164846C91

ROD

ASSY, throttle control

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

3

164843C91

SHAFT ASSY, throttle control, for gasoline or LP gas engine

1шт.

3

166879C91

SHAFT ASSY, throttle control, for diesel engine

1шт.

4

NLS

NO LONGER SERVICED

CLEVIS, no. 10 x 1-9/16 lght adj rod end, 1 used DT 407 diesel & all V-8 engines, 2 used ST 414 diesel

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32 C-Z rod end

1шт.

5

164398C91

CABLE

ASSY, throttle

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

6

860060R1

SPRING

throttle control rod, for gasoline or LP gas engine

1шт.

6

52572R1

SPRING, throttle control rod, for diesel engine

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

2шт.

7

170524C1

BRACKET, fuse block support, for use w/belt drive feeder

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

120376

NUT,5/16"-18, G5

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

174893C1

CABLE

ASSY, choke, for gasoline engine

1шт.

9

164864C91

FLANGE,15.89mm ID

BEARING ASSY, throttle control shaft

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

165291C1

PIVOT, throttle

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22256R1

WASHER

9/32 x 1/2 x 16 ga

1шт.

11

165210C1

BRACKET, throttle rear, for gasoline engine

1шт.

12

166880C1

BRACKET, throttle front, for gasoline or LP gas engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

168876C1

BRACKET, throttle rear, for LP gas engine, serial no. 2349 and below

1шт.

14

170716C1

BRACKET, fuse block support, for use w/chain drive feeder

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

9380016R1

NUT, 1/4 C-Z flange lock

4шт.

120376

NUT,5/16"-18, G5

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

140577

CLIP, choke cable, for gasoline engine

1шт.

16

174942C1

BRACKET ASSY, throttle, includes ref. no. 17, for DT 414 diesel engine

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

throttle bracket

1шт.

18

174945C1

LINK ASSY, throttle, for DT 414 diesel engine

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

2шт.

19

174948C1

ROD, throttle, for DT 414 diesel engine

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
