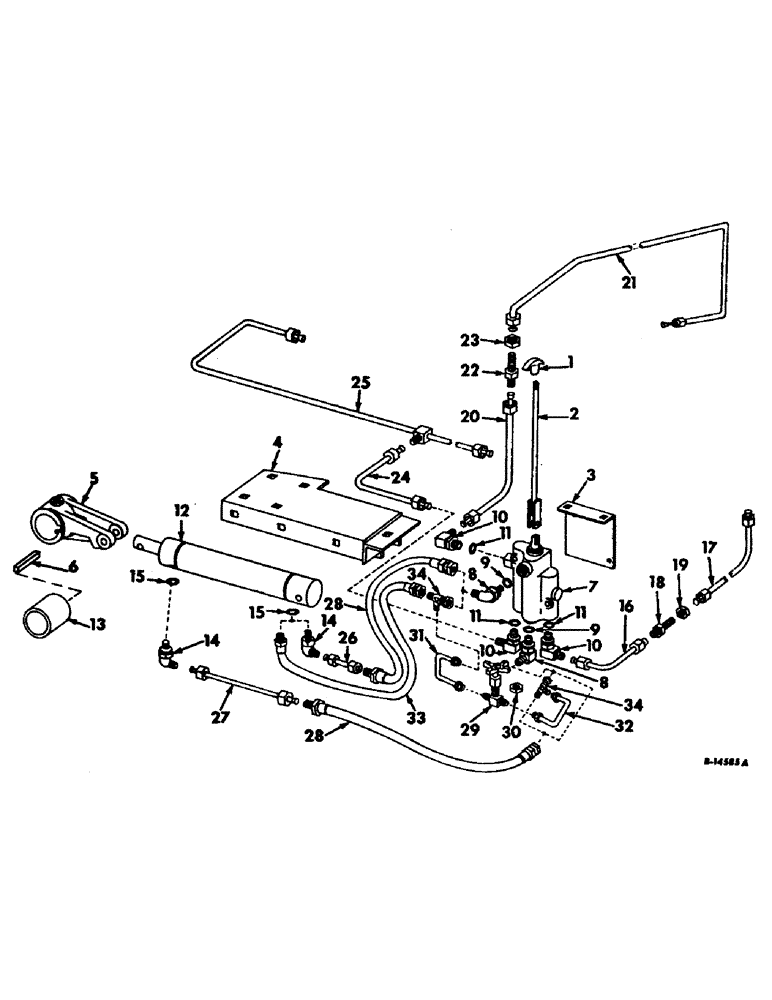

Запчасти Case IH 915 (H-08) - CONTROLS, OPERATORS DECK LADDER LIFT CONTROL Controls

1

166554C1

HANDLE, operator ladder lift control

1шт.

2

166555C91

ROD ASSY, operator ladder lift control

1шт.

20155R1

CLEVIS PIN,3/16" x .719"

PIN, 3/16 x 23/32 C-Z rod end

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

3

16657C1

BRACKET, operator ladder lift valve

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

166558C91

BRACKET ASSY, operator ladder lift cyl

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

164562C2

ARM, operators ladder lift

1шт.

473443R1

COTTER PIN

3/32 x 2 Q A C-Z

1шт.

22077R1

PIN, 5/16 x 3-1/4 STD hd C-Z

1шт.

21719R1

WASHER

2-1/32 x 2-3/4 x 11 ga C-Z

2шт.

6

Q56

KEY, 1/2 x 2 sq 1/2" Sq x 2", Par

1шт.

7

166995C91

VALVE ASSY, operator ladder lift control, for components, see list of parts under details of ladder swing valve listing, section F

1шт.

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg

2шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

10

935036R91

ELBOW

3/4-16 x 9/16-18 hyd tube 90 deg, serial no. 1777 and below

3шт.

10

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg, serial no. 1778 and above

3шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

3шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

3шт.

12

166996C91

CYLINDER ASSY, operator ladder lift control

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

22895R1

PIN,1/2" x 2 7/8"

1/2 x 2-7/8 C-Z std-hd-dld

2шт.

13

24569R1

SPACER, 2 x 1-3/8 STD pipe

1шт.

14

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

9/16-18 37 deg hyd tube 90 deg, one used w/release valve 170614R91, two used w/o release valve 170614C91

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, for 3/8 OD tube

2шт.

16

167399C1

TUBE ASSY, platform lift valve to ladder valve front

1шт.

17

167402C1

TUBE ASSY, platform lift valve to ladder valve rear

1шт.

18

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 bulk head

1шт.

19

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulk head union

1шт.

20

167400C1

TUBE ASSY, by pass to auxiliary valve front

1шт.

21

167401C1

TUBE ASSY, by pass to auxiliary valve rear

1шт.

22

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 bulkhead

1шт.

23

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulk head union

1шт.

24

167397C1

TUBE, hyd ladder lift valve return

1шт.

25

167398C1

TUBE, foot-n-inch valve return

1шт.

26

167403C1

TUBE ASSY, hyd ladder lift cyl short, not used w/release valve 170614C91

1шт.

27

167404C1

TUBE ASSY, hyd ladder lift cyl long

1шт.

28

162305C91

HOSE

ASSY, hyd ladder lift cyl to valve 12 in., one used w/release valve 170614R91, two used w/o release valve 170614C91

1шт.

29

170614C91

VALVE ASSY, manual ladder release

1шт.

30

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock, for use w/release valve 170614C91

1шт.

31

170615C1

TUBE, manual valve to cyl piston end, for use w/release valve 170614C91

1шт.

32

170616C1

TUBE, manual valve to cyl rod end, for use w/release valve 170614C91

1шт.

33

170617C1

HOSE, lift valve to cyl end, for use w/release valve 170614C91

1шт.

34

9410330

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run

7/16-20 37 deg hyd flared, for use w/release valve 170614C91

2шт.
