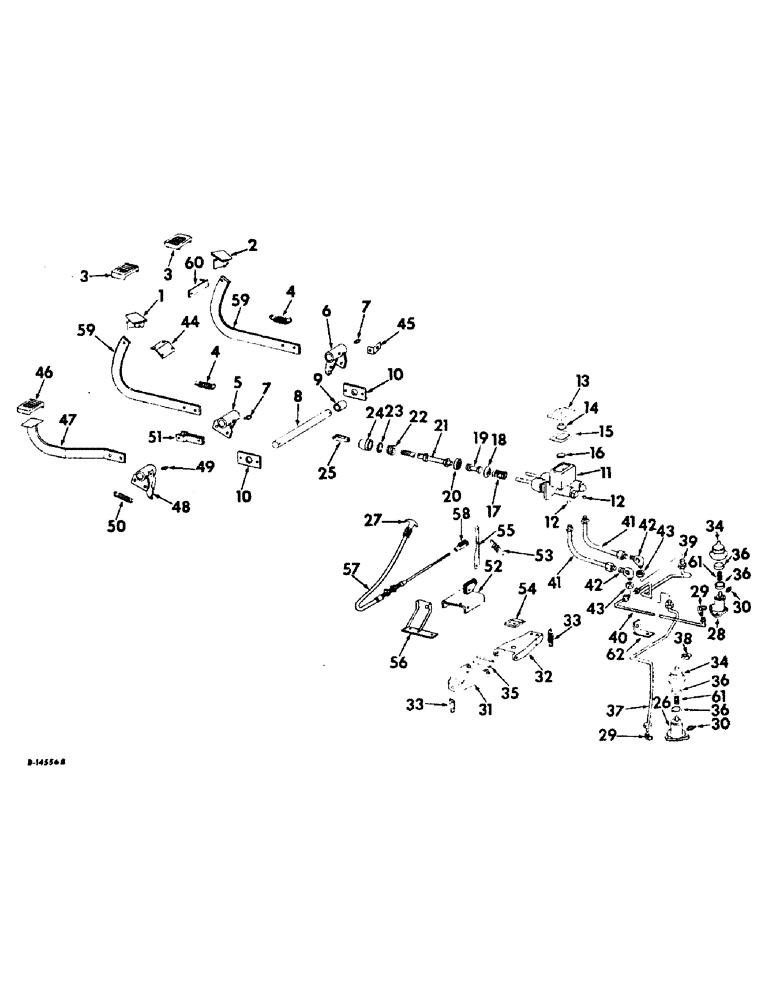

Запчасти Case IH 915 (H-02) - CONTROLS, WHEEL, FOOT-N-INCH AND PARKING BRAKE CONTROLS Controls

1

163426C1

PEDAL

left wheel brake

1шт.

2

163427C1

PEDAL

right wheel brake

1шт.

3

863426R1

PAD

wheel brake pedal

2шт.

4

398763R2

SPRING

wheel brake pedal return

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

5

165902C1

PIVOT, wheel brake pedal LH

1шт.

6

165903C1

PIVOT, wheel brake pedal RH

1шт.

7

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 NPT x 45 deg lub

2шт.

8

164776C1

SHAFT, wheel brake pivot

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

9

151478C1

SPACER,1 1/4" Tube x 1 5/8"

brake pivot shaft

1шт.

10

165901C1

BAR

SUPPORT, wheel brake pivot shaft

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd-mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

672828R91

CYLINDER

ASSY, brake master, includes ref. nos. 12 thru 24

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

SCREW, 3/8 x 1-1/4 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

284588C1

INSERT

fitting body

2шт.

13

868351R1

CAP

master cylinder filler

1шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4-20 x 2-3/4 C-Z hex-hd cap

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

14

673857R1

SLEEVE

automatic adjustor

1шт.

15

868447R1

GASKET

filler cap

1шт.

16

673856R1

X

RING, external retainer

1шт.

17

228607R91

SPRING ASSY, piston return

2шт.

18

965553R1

CUP

piston

2шт.

19

965552R21

PISTON

ASSY, master cylinder, includes ref. no. 20

2шт.

20

965564R1

CUP

SEAL, piston

2шт.

21

965560R1

ROD

master cylinder push

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

22

965561R1

RETAINER

push rod

2шт.

23

228621R1

RING, master cylinder lock

2шт.

24

228629R1

BOOT

master cylinder

2шт.

25

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/4

2шт.

120369

NUT,3/8"-24, G5

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

26

CYLINDER ASSY, left wheel brake, order 167691C91 kit assy

1шт.

27

170273C1

HANDLE

brake control cable

1шт.

28

CYLINDER ASSY, right wheel brake, order 167691C91 kit assy

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd-mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

29

137421

ELBOW UNION

ELBOW, 1/8-27NPT inverted flare 90 deg plain

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd-mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

30

660901R1

VALVE

wheel brake cylinder bleeder

2шт.

31

162328C2

LEVER

left wheel brake cylinder

1шт.

354630R1

NUT

brake pull rod

1шт.

441373

PIN, 1/2 x 2-1/4 STR 1/2" x 2 1/4"

1шт.

32

165260C2

LEVER

right wheel brake cylinder

1шт.

354630R1

NUT

brake pull rod

1шт.

441373

PIN, 1/2 x 2-1/4 STR 1/2" x 2 1/4"

1шт.

33

168567C1

SPRING

brake return

2шт.

34

381699R1

BOOT

wheel brake housing

2шт.

35

162329C1

PIN

wheel brake lever

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

36

51906H

CUP

wheel brake cylinder piston rubber

4шт.

37

TUBE ASSY, left brake, use 70 ins. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one nut 9403525, one sleeve 9403447 and one nut, 142432

1шт.

38

587501R2

CLAMP

CLIP, left brake tube

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

39

TUBE ASSY, right brake, use 60 ins. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, two nuts 9403525 and two sleeves 9403447

1шт.

40

TUBE ASSY, lower right brake, use 45 ins. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one nut 142432 and one spud 157279C1

1шт.

41

TUBE ASSY, left upper brake cyl, use 8 ins. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one nut 9403525, one sleeve 9403447 and one nut 142432

1шт.

42

TUBE ASSY, right upper brake cyl, use 8 ins. of 1/4 OD steel tubing from 25-ft roll marked 990094C1, one nut 9403525, one sleeve 9403447 and one nut 142432

1шт.

42

168298C1

ELBOW, 7/16-20 C-Z 37 deg flared tube

2шт.

43

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT, 7/16-20 flared tube 37 deg C-Z

2шт.

44

165899C1

SUPPORT, wheel brake return spring

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

165900C1

ANGLE

CLIP, wheel brake pivot shaft

1шт.

46

863426R1

PAD

foot-n-inch control pedal rubber

1шт.

47

165505C91

LEVER ASSY, foot-n-inch control

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

48

164779C1

PIVOT, foot-n-inch control pedal support

1шт.

49

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 x 45 deg lub

1шт.

50

635503R1

SPRING,148.8mm Free Length

foot-n-inch control pedal return

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

51

165504C91

YOKE

ASSY, foot-n-inch control valve

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, 5/16" x 1 3/16"

1шт.

52

165249C91

SUPPORT ASSY, parking brake ratchet

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 C-Z rod end

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

271199R1

SPRING

parking brake ratchet

1шт.

54

165222C1

BAR

parking brake ratchet

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

55

165235C1

SECTOR, parking brake ratchet

1шт.

56

165246C91

SUPPORT ASSY, parking brake cable

1шт.

57

166149C91

CABLE

ASSY, parking brake, includes ref. no. 27

1шт.

58

110322

CLEVIS, no. 10-32 C-Z adjustable rod end

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1-1/32 C-Z rod end

1шт.

59

164670C1

LEVER, wheel brake pedal

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd-mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

60

614251R11

BAR

ASSY, brake locking

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

61

662612R1

SPRING

wheel brake cup

2шт.

62

168266C1

ANGLE, brake tube clip upper

1шт.

167691C91

PACKAGE, REPAIR

KIT ASSY, wheel brake cylinder, consists of (1) cylinder 162327C1 (NSS), (1) spring 662612R1, (1) piston 662616R1 (NNS), (1) spacer 662617R1 (NSS), (1) plunger 662618R1 (NSS), (1) boot 662620R1 (NSS), (2) cup 51906H

2шт.
