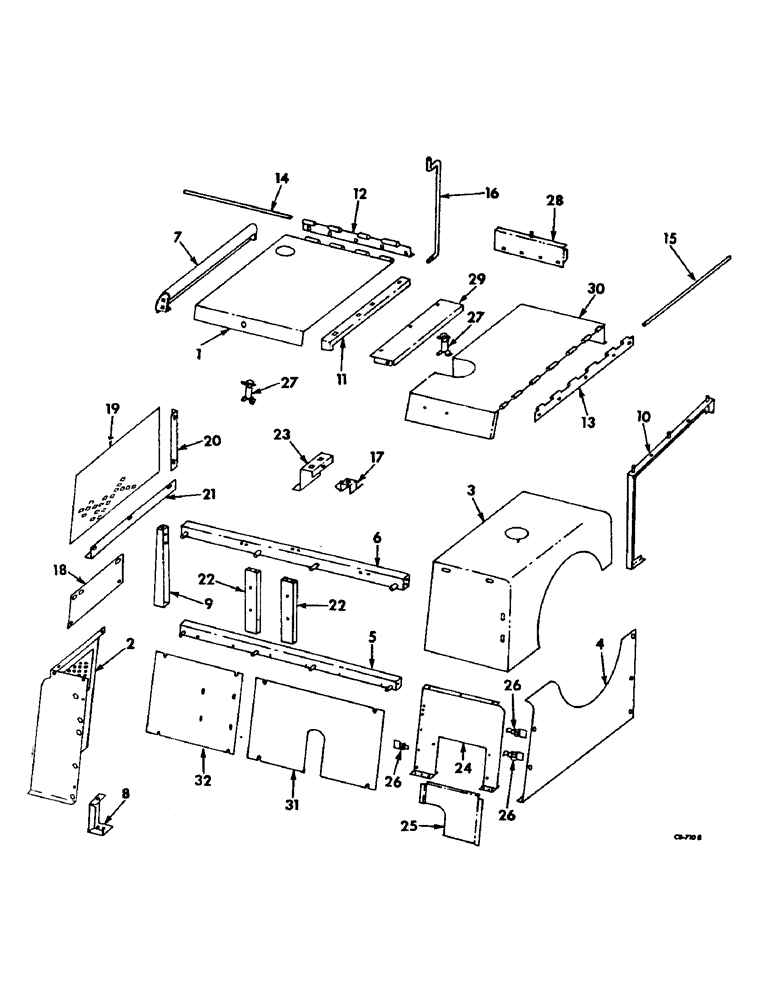

Запчасти Case IH 915 (A-14) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD COVER, FOR DT-407 DIESEL ENGINE, S/N 2349 AND BELOW Chassis, Radiator & Sheet Metal
№
Артикул
Название
Примечание
Количество
1
160951C92
HOOD ASSY, engine left
1шт.
2
160910C91
HOOD ASSY, engine lower left
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 C-Z hex-hd. mach
6шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
166535C1
NUT, no. 14 C-Z speed
1шт.
445449
NUT
no. 14 C-Z speed
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
3
169010C1
HOOD ASSY, engine upper right
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
12шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd.
12шт.
4
168715C1
SUPPORT, engine hood right
1шт.
5
167301C91
CHANNEL ASSY, engine hood lower
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
4шт.
6
167300C91
CHANNEL ASSY, engine hood upper
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
3шт.
7
164898C91
FRAME ASSY, engine hood
1шт.
8
160946C1
ANGLE, engine hood support left
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex-hd. mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
9
160943C1
SUPPORT, engine hood left
1шт.
10
168797C1
ANGLE ASSY, engine hood support right
1шт.
11
165310C91
CHANNEL. engine hood support
1шт.
12
160899C1
HINGE, engine hood left
1шт.
475954R1
NUT
3/8 C-Z flange lock
5шт.
13
168773C1
HINGE, engine hood right
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 znd sq-nk crg
5шт.
120377
NUT,3/8" - 16, Gr 5
5шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
14
161852C1
ROD, engine hood hinge left
1шт.
15
168774C1
ROD, engine hood hinge right
1шт.
648002
KNIFE
1/8" x 3/4"
2шт.
16
160896C1
ROD, engine hood support
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
17
164008C1
CLIP, engine hood support rod holder
1шт.
18
163805C1
SHEET, engine hood left
1шт.
19
160984C1
HOOD, engine left
1шт.
20
161853C1
ANGLE, engine hood support
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd.
2шт.
21
166507C1
ANGLE, engine hood trim support
1шт.
22
170791C1
CHANNEL, engine hood support center
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd.
8шт.
23
167280C1
BRACKET, engine hood
1шт.
24
168759C1
SUPPORT, engine hood lower right
1шт.
25
168760C1
DOOR, air cleaner
1шт.
26
167800C1
CLIP
CLIP, air cleaner door retainer
3шт.
225-14112
NUT,#12-24
no. 12 C-Z hex.
3шт.
436767
SCREW, no. 12-24 C-Z pan-hd sltd mach
3шт.
120744
WASHER, no. 12 C-Z med lock
3шт.
27
353443R91
LATCH ASSY.
LATCH, fencing hood
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
2шт.
436750
SCREW,Slotted Pan Hd, #10-32 x 1/2"
no. 10-32 x 1/2 C-Z pan-hd. slt mach
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
28
168756C1
FILLER, center hood front
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
3шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
1шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
29
167758C1
ANGLE, hood support right
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 znd hex-hd. mach
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 znd sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
30
168764C1
HOOD ASSY, engine center
1шт.
31
170787C1
SHEET, engine hood rear cover
1шт.
32
170788C1
SHEET, engine cover LH
1шт.
Выбрано товаров: 73
