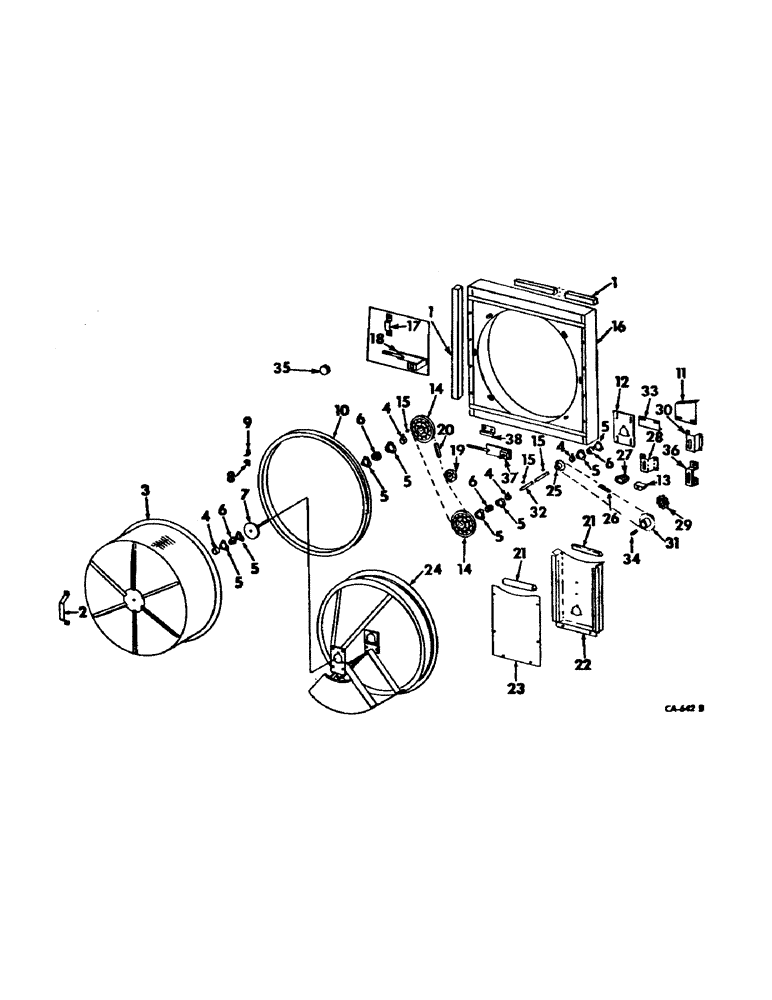

Запчасти Case IH 915 (A-08) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR ROTARY AIR SCREEN AND DRIVE, S/N 2349 AND BELOW Chassis, Radiator & Sheet Metal

1

400143R1

GASKET

STRIP, stafoam

4шт.

2

164628R1

HANDLE, rotary air sieve adapter

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt truss hd.

2шт.

3

164629C91

SCREEN

SIEVE ASSY, rotary air

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 semi-tubular truss hd. aluminum

12шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt truss hd.

12шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd. cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

165483C11

BEARING

COLLAR W/SET SCREW LOCKING

4шт.

20683R1

SCREW, 1/32 x 1/4 hex-soc-hd. set

1шт.

5

165484C1

FLANGE

rotary air screen sieve brg

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

165482C91

BEARING ASSY,19.05mm ID x 42mm OD x 12mm W

rotary air sieve

4шт.

7

166487C91

SHAFT ASSY, rotary air screen

1шт.

8

164617C1

ANGLE

CLIP, rotary air sieve brush long

1шт.

19910R1

LOCK NUT

no. 10-24 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10-24 x 1 C-Z pan hd. slt mach

1шт.

9

164616C1

ANGLE

CLIP, rotary air sieve brush short

1шт.

10

164615C91

BRUSH ASSY.

BRUSH ASSY, rotary air sieve, inludes ref. nos. 8 and 9

1шт.

11

166481C1

SUPPORT, rotary air screen drive lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd. mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

166477C1

SUPPORT, rotary air screen drive brg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

13

575622R1

BLOCK, drive chain tightener front, serial no. 1778 and above

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd. mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

3шт.

14

166472C91

PULLEY ASSY, rotary air screen drive and driven

2шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

107345

SUPPORT

SCREW, 1/4 x 1 C-Z sq-hd cup pt

2шт.

15

106751

KEY

3/16 x 3/4 Woodruff

3шт.

16

162401C91

ADAPTER ASSY, rotary air sieve, for gasoline or LP gas engine, includes ref. no. 1

1шт.

16

168716C1

ADAPTER ASSY, rotary air sieve, for diesel engine, ncludes ref. no. 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss hd.

8шт.

17

166473C1

CLAMP, rotary air screen drive belt tightener, serial no. 1777 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd.

2шт.

18

166474C92

TIGHTENER ASSY, rotary air screen drive belt, serial no. 1777 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

19

572267R91

PULLEY ASSY.

PULLEY ASSY, rotary air screen drive belt tightener 3.25 in OD

1шт.

19081R1

BOLT,5/8"-11 x 2", G2, Full Thd

5/8 x 2 C-Z plow

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 x 1-1/4 x 12 ga C-Z sq hole

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

20

38331K

V-BELT

Rotary air screen drive, For gasoline or LP gas engine

1шт.

20

168725C1

V-BELT,0.49" W x 84.99" L

Rotary Air Screen Drive, for Diesel Engine 0.49" W x 84.99" L

1шт.

21

166484C1

STRIP, rotary air screen sealing

2шт.

22

166479C91

SUPPORT ASSY, rotary air screen drive, for gasoline or LP gas engine

1шт.

22

168721C1

SUPPORT ASSY, rotary air screen drive, for diesel engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt truss hd

8шт.

23

166480C1

COVER, rotary air screen drive support, for gasoline or LP gas engine

1шт.

23

168720C1

COVER, rotary air screen drive support, for diesel engine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/15 x 3/4 C-Z slt-truss hd

6шт.

24

165318C91

FRAME ASSY, rotary air screen, for gasoline or LP gas engine

1шт.

24

168856C1

FRAME ASSY, rotary air screen, for diesel engine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

6шт.

120376

NUT,5/16"-18, G5

8шт.

106884

RIVET

3/16 x 1/2 truss-hd

8шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 truss-hd

4шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

6шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd tap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

16шт.

25

163884C2

SPROCKET ASSY.

SPROCKET, rotary air screen driven 10T

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4 x 1 C-Z sq-hd cup pt set

1шт.

26

CHAIN, rotary air screen drive, use 113 links from 10-ft roll marked 569088R91, one connecting link 457113R91 and one offset link 457114R91

1шт.

27

936878R1

BLOCK

rotary air screen drive chain tightener, serial no. 1777 and below

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

28

164096C1

BRACKET, rotary air screen drive chain tightener block

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

565336R91

BEARING

SPROCKET, rotary air screen drive tightener, 11T

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga C-Z

1шт.

30

164096C1

BRACKET, rotary air screen tightener sprocket, serial no. 1777 and below

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z slt truss hd

4шт.

938017

NUT, 5/15 C-Z flange lock

4шт.

31

166991C1

SPROCKET, radiator rotary air screen

1шт.

32

164177C1

SHAFT, rotary air screen jack

1шт.

33

167018C1

SUPPORT, jackshaft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

34

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 2-2/1 gib

1шт.

35

178031

SHIM,1 3/4"

1-3/4 button

1шт.

36

173241C1

BRACKET, rotary air screen tightener sprocket rear, serial no. 1778 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 C-Z whiz lock

2шт.

37

170467C1

TIGHTENER ASSY, rotary screen drive, serial no. 1778 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex. jam

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

38

170469C1

CLIP, rotary air screen drive belt tightener, serial no. 1778 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.
