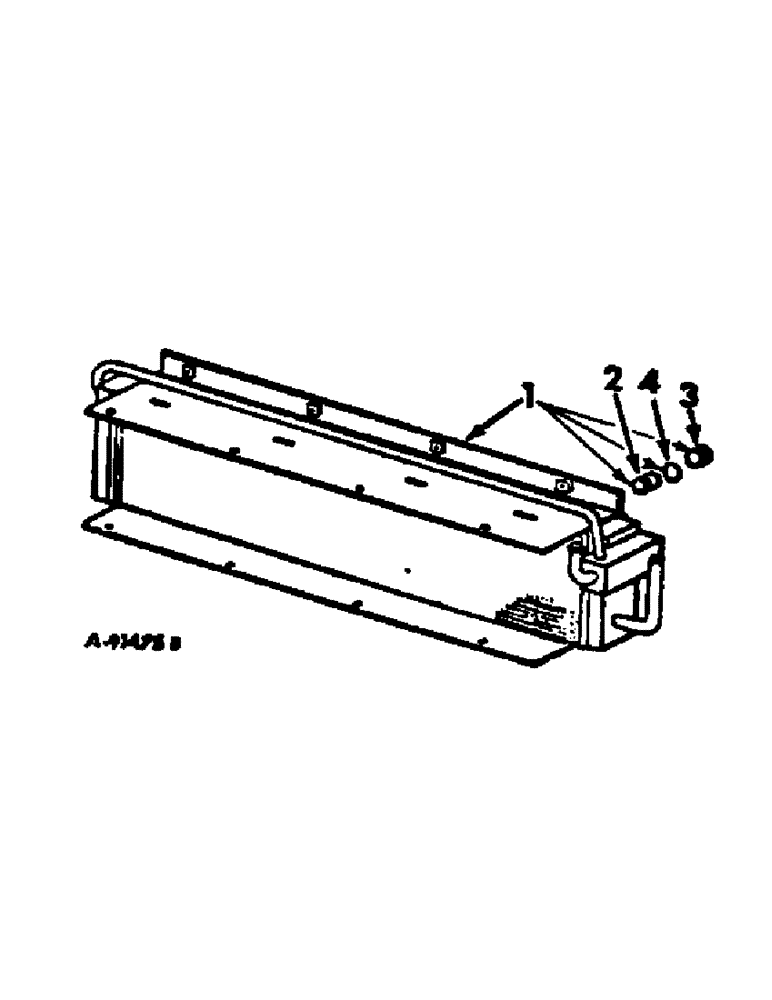

Запчасти Case IH 915 (A-05) - CHASSIS, RADIATOR AND SHEET METAL, OIL COOLER Chassis, Radiator & Sheet Metal

1

400733R3

COOLER ASSY.

COOLER ASSY, oil

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd. cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

8шт.

2

529816R1

VALVE, oil cooler

1шт.

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

oil cooler

1шт.

3

546729R1

PLUG, hex-soc-hd. pipe

1шт.

4

130041H1

RING, retaining

1шт.
