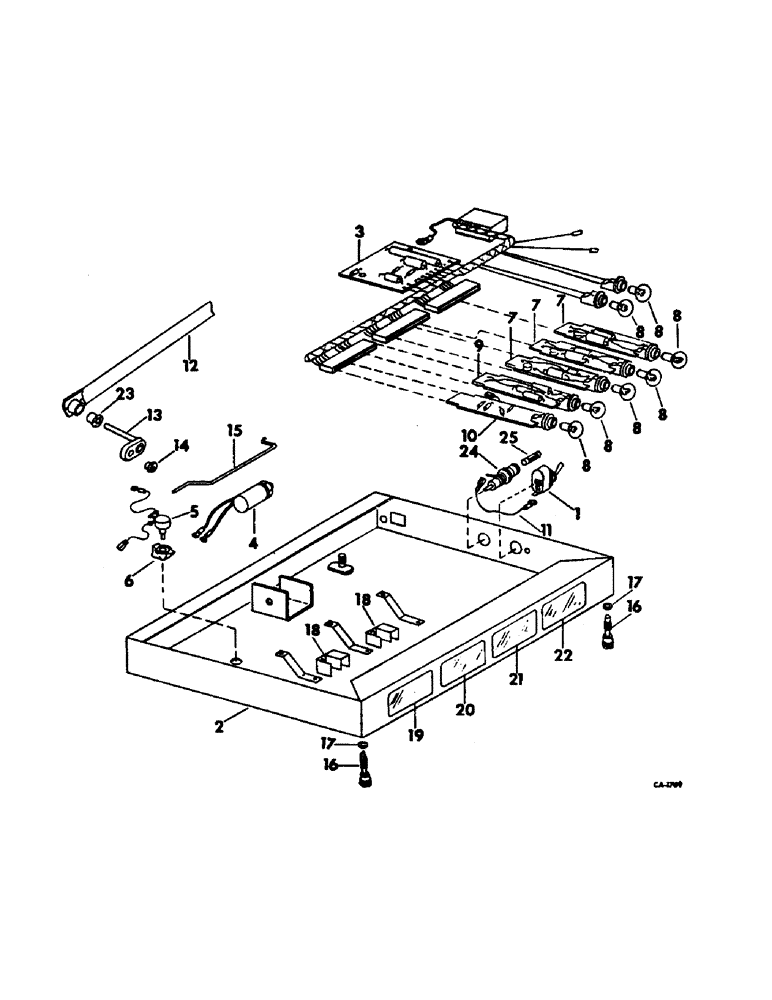

Запчасти Case IH 915 (N-22) - PARTS ACCESSORIES AND ATTACHMENTS, MONITOR CONTROL PANEL Accessories & Attachments

174016C91

PANEL ASSY, monitor, includes ref. nos. 1 thru 25

1шт.

1

244641R91

SWITCH

ASSY, monitor control

1шт.

2

174017C1

TRAY ASSY, monitor control panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

5шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

131183

WASHER, no. 10 C-Z med lock

5шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

5шт.

3

174027C1

HARNESS ASSY, monitor relay

1шт.

21595R1

SCREW

no. 10 x 3/8 pan-hd SLT

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

4

174031C1

SOLENOID ASSY

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

174033C91

POTENTIOMETER ASSY, includes ref. no. 6

1шт.

6

174035C1

KNOB, potentiometer

1шт.

7

174036C1

INDICATOR ASSY, grain & tailings augers and straw rack warning, includes ref. no. 8

3шт.

8

9417863

BULB,C2F, #1895, 14V

LAMP, trade no. 1895

7шт.

9

174038C1

INDICATOR ASSY, shoe warning, includes ref. no. 8

1шт.

10

174039C1

INDICATOR ASSY, fan, includes ref. no. 8

1шт.

11

174041C1

WIRE ASSY, fuse holder to switch, 2.25 inches

1шт.

12

174042C91

WAND ASSY, monitor warning

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

131240

RIVET, 3/32 x 5/32 oval-hd tubular

2шт.

13

174047C1

SHAFT ASSY, solenoid link

1шт.

14

174050C1

PIVOT, solenoid link

1шт.

936694

SCREW, no. 8 x 7/16 C-Z pan-hd SLT

1шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .036 C-Z

1шт.

15

174051C1

LINK, solenoid

1шт.

16

174052C1

SCREW, monitor control panel mount

2шт.

17

891615C1

WASHER, panel mount screw retaining

2шт.

18

174053C1

HOLDER ASSY, warning indicator

4шт.

19

174056C1

WINDOW ASSY, fan-shoe

1шт.

20

174060C1

WINDOW ASSY, tailings, grain

1шт.

21

174062C1

WINDOW ASSY, rack, chopper

1шт.

22

174064C1

WINDOW ASSY, rack load

1шт.

23

174069C1

BUSHING, monitor warning wand

1шт.

24

376852R91

HOUSING

ASSY, fuse

1шт.

25

142630

FUSE

5 amp type 3AG

1шт.
