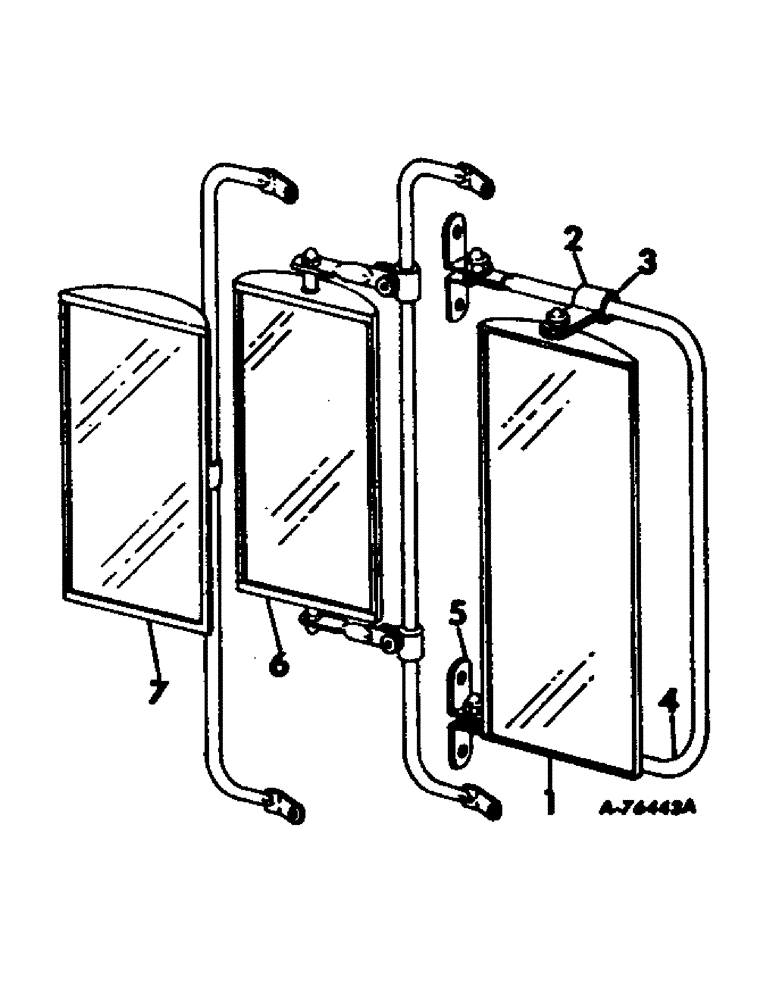

Запчасти Case IH 915 (N-18) - PARTS ACCESSORIES AND ATTACHMENTS, REAR VIEW MIRROR Accessories & Attachments

527346R91

MIRROR ASSY, rear view, delbar, for grain tank, includes ref. nos. 1 thru 5, optional for mirror assy 401538R91

1шт.

401538R91

MIRROR ASSY, rera view, pathfinder, for grain tank, includes ref. nos. 1 thru 5, optional for mirror assy 527346R91

1шт.

1

527347R1

HEAD

ASSY, mirror, delbar, for grain tank

1шт.

131422

SUPPORT,Crown, 3/8"-16

NUT, 3/8 C-Z low crown

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

21843R1

WASHER

13/32 x 1 x 4 ga C-Z

2шт.

1

403628R1

HEAD

ASSY, mirror, pathfinder, for grain tank

1шт.

131502

NUT, 3/8 C-Z low crown

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

4шт.

2

352299C1

BRACKET, mirror head, delbar, for grain tank

2шт.

231-2444

NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

2шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

403629R1

BRACKET, mirror head, pathfinder, for grain tank

2шт.

120376

NUT,5/16"-18, G5

1/4-28 C-Z hex.

2шт.

181565

SCREW, 1/4-28 C-Z hex.

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

3

527348R1

GASKET, head bracket, delbar, for grain tank

1шт.

4

527349R1

SUPPORT

LOOP, mirror mounting, delbar, for grain tank

1шт.

4

403630R1

SUPPORT

LOOP, mirror mounting, pathfinder, for grain tank

1шт.

5

527350R1

BRACKET, mirror mounting, delbar, for grain tank

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

5

403631R1

BRACKET, mirror mounting, pathfinder, for grain tank

4шт.

120369

NUT,3/8"-24, G5

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

181636

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-24 x 7/8 C-Z hex-hd cap

2шт.

167477C91

MIRROR ASSY, rear view, for operators cab

1шт.

6

168974C1

HEAD ASSY, mirror, pathfinder, for operator cab, optional for head assy 168975C1, 168976C1 or 174489C1

1шт.

6

168975C1

HEAD ASSY, mirror, re-trac, for operators cab, optional for head assy 168974C1, 168976C1 or 174489C1

1шт.

6

168976C1

HEAD ASSY, mirror, delbar, for operators cab, optional for head assy 168974C1, 168975C1 or 174489C1

1шт.

7

174489C1

HEAD ASSY, mirror, velvac, optional for head assy 168974C1, 168975C1 or 168976C1

1шт.
