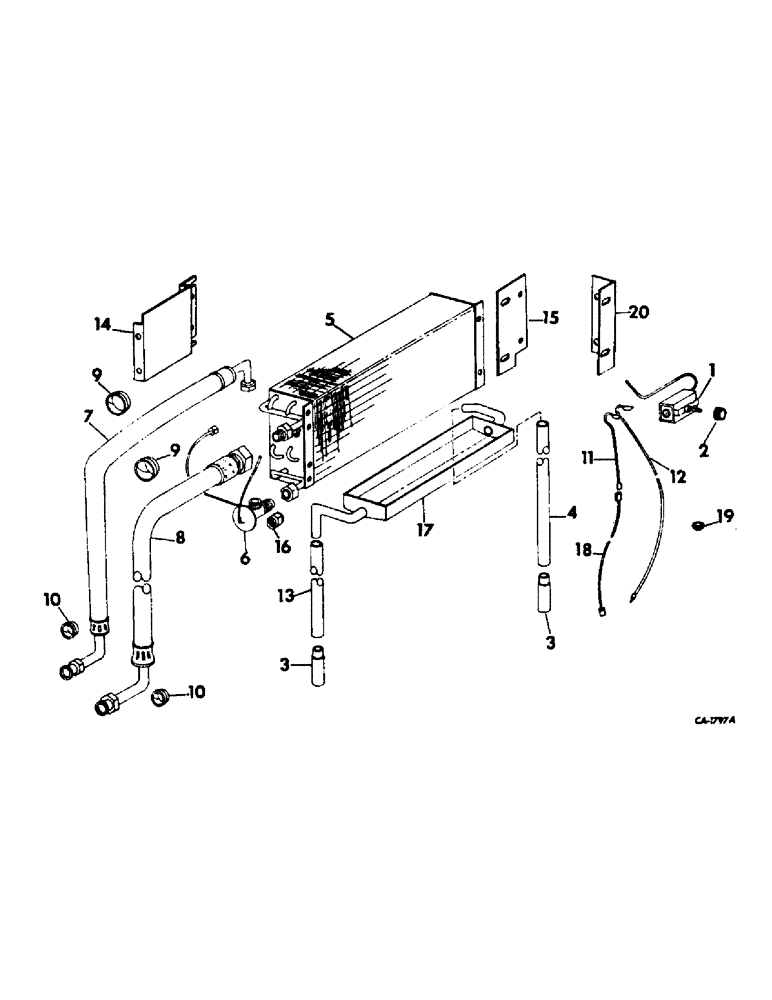

Запчасти Case IH 915 (N-15) - PARTS ACCESSORIES AND ATTACHMENTS, AIR CONDITIONING, EVAPORATOR & CONNECTIONS, S/N 1865 & ABOVE Accessories & Attachments

1

175575C1

THERMOSTAT

1шт.

109311H

JAM NUT

thermostat switch

1шт.

2

200860C1

KNOB

thermostat

1шт.

3

173910C1

HOSE

drain 3-3/4 inches

2шт.

4

HOSE, drain, use 123 inches of 1/2 in plastic tubing

1шт.

5

173915C1

CORE

ASSY, evaporator

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

4шт.

164539

GEAR

SCREW, no. 14 x 3/8 pan-hd

4шт.

6

173899C1

VALVE

expansion, external sensing

1шт.

6

168903C1

VALVE

expansion, internal sensing

1шт.

7

171851C1

HOSE ASSY.

HOSE AND TUBE ASSY, 99 inches

1шт.

8

171850C1

HOSE

AND TUBE ASSY, 101-1/2 inches

1шт.

9

173895C1

GROMMET

3/4 ID

1шт.

9

166868C1

GROMMET

1 ID

1шт.

10

173893C1

GROMMET

3/8 ID

1шт.

10

173894C1

GROMMET

5/8 ID

1шт.

11

WIRE, switch to thermostat jumper, use 6 inches of 16 ga wire from 100-ft roll marked 995056R1 and 2 terminals 915073R1

1шт.

12

WIRE, thermostat to condenser rear, use 162 inches of 16 ga wire from 100 ft roll marked 995056R1 and 2 terminals 377279C1

1шт.

13

HOSE, drain LH, use 66-3/4 inches of 1/2 inch plastic tubing

1шт.

14

175581C1

BRACKET

evaporator mounting LH, cab w/left side air intake

1шт.

447163

SCREW, no. 10 x 1/2 hex-hd mach

2шт.

552847R1

SCREW, 1/4 x 1/2 hex-hd washer

2шт.

175799C1

PLATE, evaporator mounting LH, cab w/rear air intake

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

164539

GEAR

SCREW, no. 14 x 3/8 pan-hd

2шт.

15

175582C1

BRACKET

evaporator mounting RH, cab w/left side air intake

1шт.

447163

SCREW, no. 10 x 1/2 hex-hd mach

2шт.

552847R1

SCREW, 1/4 x 1/2 hex-hd washer

2шт.

16

615195C1

NUT, flared cap, for use w/168903C1, ref. no. 6

1шт.

17

175803C1

PAN ASSY, drain, cab w/rear air intake

1шт.

17

175802C1

PAN ASSY, drain, cab w/left side air intake

1шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. x 3/4 pan-hd

2шт.

16553R1

WASHER, .219 x 1/2 x 16 ga C-Z

2шт.

18

WIRE, thermostat to condenser rear, cab w/rear air intake, use 235 inches of 16 ga wire from 100 ft roll marked 995056R1 and 2 terminals 377279C1

1шт.

19

399347R1

GROMMET, 3/16 ID, cab w/rear air intake

1шт.

20

175800C1

PLATE, evaporator mounting RH, cab w/rear air intake

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

164539

GEAR

SCREW, no. 14 x 3/8 pan-hd

2шт.
