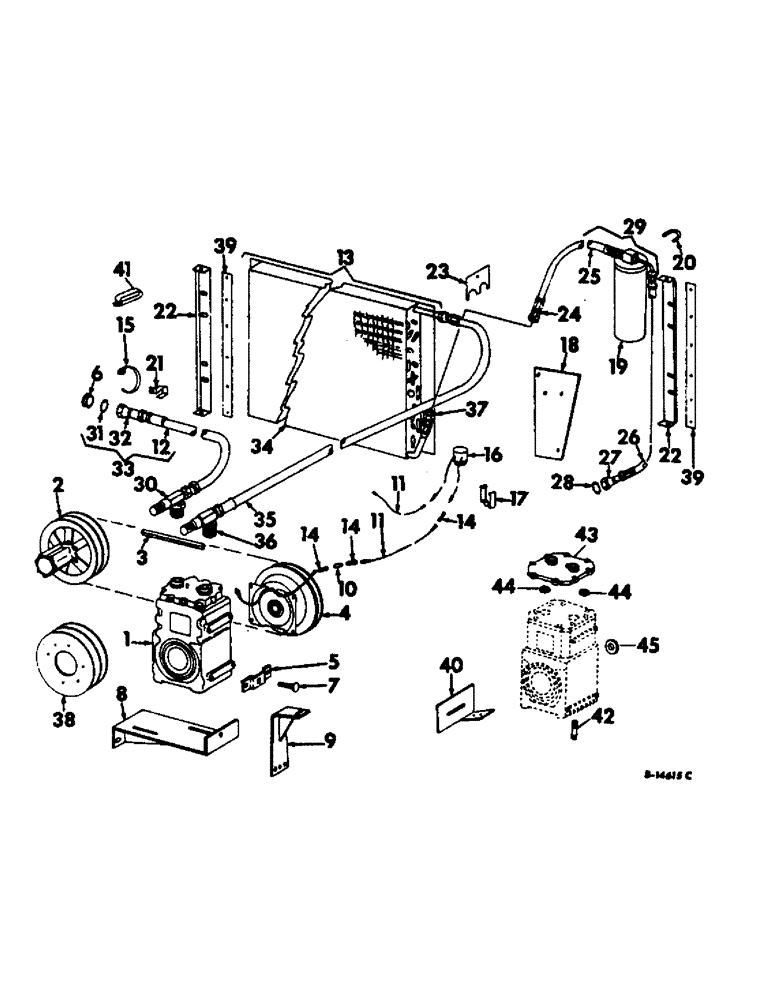

Запчасти Case IH 915 (N-10) - PARTS ACCESSORIES AND ATTACH., AIR CONDITIONER ATTACH., COMPRESSOR AND CONDENSER, S/N 1864 AND BELOW Accessories & Attachments

1

527541R91

AIRCOND. COMPRESSOR

COMPRESSOR ASSY, air conditioning, includes ref. no. 43 thru 46 and kit assy 302810R91, 527624R91 and 52772R91

1шт.

1

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

1

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd-mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

PULLEY, water pump and compressor drive, refer to ENG-3 Sec A or B for parts listing

1шт.

3

167031C2

V-BELT,0.50" W x 51.23" L

V-BELT, , Compressor Drive, for V-8 Gas and LP Gas Engines 0.50" W x 51.23" L

1шт.

3

574615R1

V-BELT,0.50" W

Compressor drive, for diesel engine

1шт.

4

165129C91

CLUTCH

CLUTCH ASSY, compressor

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z hex-hd mach

4шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

SCREW, 5/16 x 1-1/4 C-Z hex-hd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22859R1

WASHER

WASHER 11/32 x 3/4 x 7 ga C-Z

1шт.

5

165125C1

SPARE PART STRAP, compressor tightener

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

GROMMET, 7/8 ID rubber for compressor hose

2шт.

7

935032R1

SPARE PART BOLT, compressor draw

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

166146C92

SPARE PART BRACKET ASSY, compressor mount

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 C-Z hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

166984C91

SPARE PART SUPPORT ASSY, compressor, for gasoline or LP gas engine

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

BOLT, 5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, compressor clutch wire

1шт.

11

167424C1

CABLE, thermostat

2шт.

12

167887C1

HOSE

HOSE ASSY, compressor to cab, 185 in.

1шт.

13

165144C91

CONDENSER

CONDENSER ASSY, air conditioning, includes ref. nos. 34, 35, 36 and 37

1шт.

14

46893H

CONNECTION

CONNECTOR, cable snap in

4шт.

15

702093C1

CABLE TIE

CABLE STRAP STRAP, compressor hose tie

6шт.

16

155491C91

THERMOSTAT

THERMOSTAT ASSY, 170 deg

1шт.

17

155482C1

CLIP

CLIP, thermostat

1шт.

18

165165C91

SPARE PART SUPPORT ASSY, receiver dryer filter

1шт.

19

572832R91

CONTAINER

FILTER ASSY, receiver

1шт.

20

165164C1

BOLT

SPARE PART BOLT, receiver dryer filter U

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

394271R1

CLIP

CLIP, cab to compressor hose

2шт.

22

162363C1

SPARE PART ANGLE, condenser support, for gasoline or LP gas engine

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 C-Z flange lock

8шт.

63227R1

SCREW

SCREW, 5/16 x 3/4 C-Z slt-truss-hd

8шт.

23

159940C1

BAR

COVER, compressor hose opening

2шт.

178944

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tap.

2шт.

24

163658C91

SPARE PART COUPLING ASSY

1шт.

25

167888C1

HOSE ASSY.

HOSE ASSY, suction 161 in.

1шт.

26

167889C1

HOSE

HOSE ASSY, discharge, 198 in.

1шт.

27

168528C1

SPARE PART COUPLING, quick

1шт.

28

168530C1

SPARE PART O-RING, 3/8 x 1/2 x 1/16

1шт.

29

165142C91

SPARE PART FILTER AND HOSE TO COMPRESSOR ASSY, includes ref. nos. 19, 24, 25, 26, 27 and 28

1шт.

30

938196R91

VALVE

VALVE ASSY

1шт.

31

168531C1

SPARE PART O-RING, 11/16 x 13/16 x 1/16

1шт.

32

168529C1

SPARE PART COUPLING, quick

1шт.

33

165143C91

SPARE PART HOSE ASSY, compressor assy, includes ref. nos. 12, 30, 31 and 32

1шт.

34

165130C91

COIL

CORE ASSY

1шт.

35

159930C91

A/C HOSE,0.41" ID x 48.00"

1шт.

36

938197R91

LOCK VALVE

VALVE ASSY

1шт.

37

1636579C1

COUPLING ASSY

1шт.

38

168791C11

SPARE PART PULLEY, water pump and compressor drive, 7 in. OD, diesel engine

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

39

167344C1

SPARE PART SUPPORT CONDENSER, for diesel engine

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

BOLT, 1/4 x 3/4 C-Z hex-hd mach

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

40

168878C1

SPARE PART SUPPORT ASSY, compressor, for diesel engine

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

BOLT, 5/16 x 1 C-Z he-xhd mach

2шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

WASHER, 11/32 x 3/4 x 16 ga C-Z

2шт.

41

154695C1

CLAMP

CLAMP, cab to compressor hose

2шт.

42

527730R1

SPARE PART SCREW, 5/16 x 1-3/8 12-pt hd cap

4шт.

43

527731R1

SPARE PART CYLINDER HEAD, rotalock

1шт.

44

527733R1

GASKET

GASKET, rotalock

2шт.

45

406838R1

SPARE PART FLINGER, dust cap

1шт.

527732R91

SPARE PART KIT, valve plate

1шт.

302710R91

KIT, compressor gasket

1шт.

527624R91

SEAL KIT

KIT, seal service, includes ref. nos. 43 thru 46 and kit assy 302810R91, 527624R91 and 527732R91

1шт.
