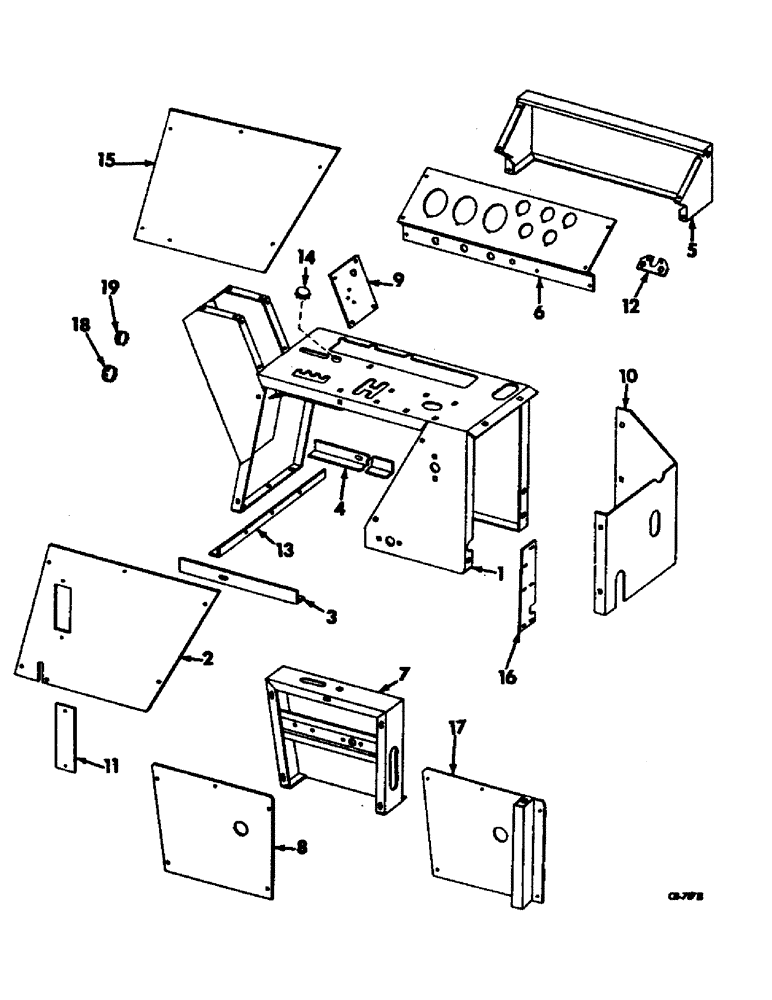

Запчасти Case IH 915 (M-08) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS CONTROL CONSOLES (10) - OPERATORS PLATFORM

1

169000C2

CONSOLE ASSY, operators control

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

168249C21

SIDE ASSY, operators control console LH

1шт.

391426R1

NUT

1/4-20 speed grip

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

3

164656C2

CLIP, operators control console side left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

164657C2

CLIP, operators control console side right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

164867C91

PANEL ASSY, instrument

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

6

164872C1

PANEL, instrument

1шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10-16 x 3/8 C-Z pan-hd cross recess tapping type 8

12шт.

7

164874C91

CONSOLE ASSY, operator control left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

164877C1

COVER, operator control left console

1шт.

391426R1

NUT

1/4 speed grip

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

5шт.

9

164947C1

DOOR, operator control console extension, for gasoline or LP gas engine

1шт.

9

166267C1

DOOR, operators control console extension, for diesel engine

1шт.

163303

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan hd tap

4шт.

10

166001C1

SHIELD, operators console rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

170715C1

PLATE, fuse block cover

1шт.

935735R1

WING NUT

1/4-20 wing

2шт.

12

166846C1

PLATE, instrument light

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

164871C1

CLIP, instrument panel lower

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

432535

HOLE PLUG BUTTON,13/32"

PLUG, 1/2 C-Z button, for choke cable hole LP gas and diesel engines

1шт.

15

164655C2

SIDE, operators control console RH, not operators cab

1шт.

391426R1

NUT

1/4 speed grip

5шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

5шт.

16

172955C1

FILLER, console, for use w/operators cab

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

17

174245C1

COVER ASSY, operators control left console, for use w/platform automatic control

1шт.

18

432327

HOLE PLUG BUTTON,1"

PLUG, 1 inch button

1шт.

19

432439

PLUG, 15/32 button

1шт.
