Запчасти Case IH 915 (M-02) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS PLATFORM (10) - OPERATORS PLATFORM

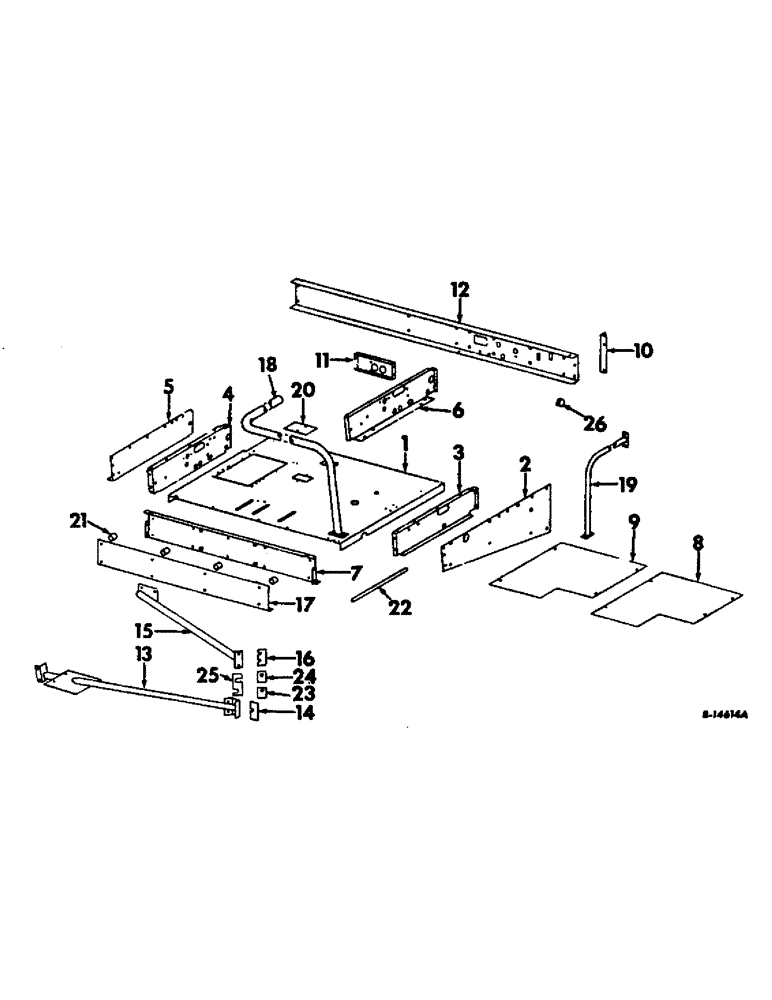

Схема запчастей Case IH 915 - (M-02) - SEAT, OPERATORS PLATFORM & MISC., OPERATORS PLATFORM (10) - OPERATORS PLATFORM
2
26
11
18
24
21
17
20
7
19
8
12
1
3
13
15
14
5
10
6
23
4
25
16
9
22

Артикул

Название

Примечание

Количество

1

164590C1

PLATFORM, operators

1шт.

2

164570C91

SUPPORT ASSY, operators platform left trim

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

164573C1

SUPPORT, operators platform left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

164574C1

SUPPORT, operators platform right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

164575C1

SUPPORT, operators platform RH trim

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

164576C1

SUPPORT, operators platform center

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

164578C1

SUPPORT, operators platform front trim

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

11шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

8

164579C1

COVER, operators platform bottom left

1шт.

391426R1

NUT

1/4-20 speed grip

4шт.

20245R1

SCREW, 1/4 x 3/4 C-Z slt-hex-hd mach

4шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

4шт.

9

164580C1

COVER, operators platform bottom right

1шт.

391426R1

NUT

1/4-20 speed grip

4шт.

20245R1

SCREW, 1/4 x 3/4 C-Z slt-hex-hd mach

4шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

4шт.

10

161560C1

ANGLE, operator PLTF left rear trim

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

164581C1

SUPPORT, brake master cylinder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

164582C2

CHANNEL, operators platform

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

13

167853C2

BRACE ASSY, operator platform diagonal LH, for windrow special

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

165496C92

BRACE ASSY, operator platform diagonal LH, not windrow special

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

165501C1

SHIM, operator platform diagonal brace, not windrow special

1шт.

15

166687C91

BRACE ASSY, operators platform right diagonal, grain, rice and bean special

1шт.

15

166771C91

BRACE ASSY, operators platform right diagonal, windrow special

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

16

166847C1

SHIM, platform right diagonal brace, windrow special (use as required)

2шт.

17

166756C1

SHIELD, operator deck front panel, serial no. 1249 and below

1шт.

174754

SPARE PART

SCREW, no. 14-20 x 1/2 C-Z slt-pan-hd self tap

8шт.

18

164752C91

RAIL ASSY, operator platform front hand, not operators cab

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

164771C91

RAIL ASSY, operator platform rear hand, not operators cab

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

157564C1

COVER, master cylinder, not operators cab

1шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4-14 x 1/2 C-Z pan-hd

2шт.

21

U13039

SPACER

1/4 x 1 STD pipe, serial no. 700 and below

8шт.

22

155615C1

TAPE, operators deck non skid

4шт.

23

168280C1

FILLER, operators platform left diagonal brace, not windrow special

1шт.

24

168281C1

SHIM, operators platform left diagonal brace filler, not windrow special, (or as required)

2шт.

25

168282C1

SHIM, operators platform left diagonal brace, not windrow special (or as required)

10шт.

26

432439

PLUG, 15/32 button

1шт.

Выбрано товаров: 92
