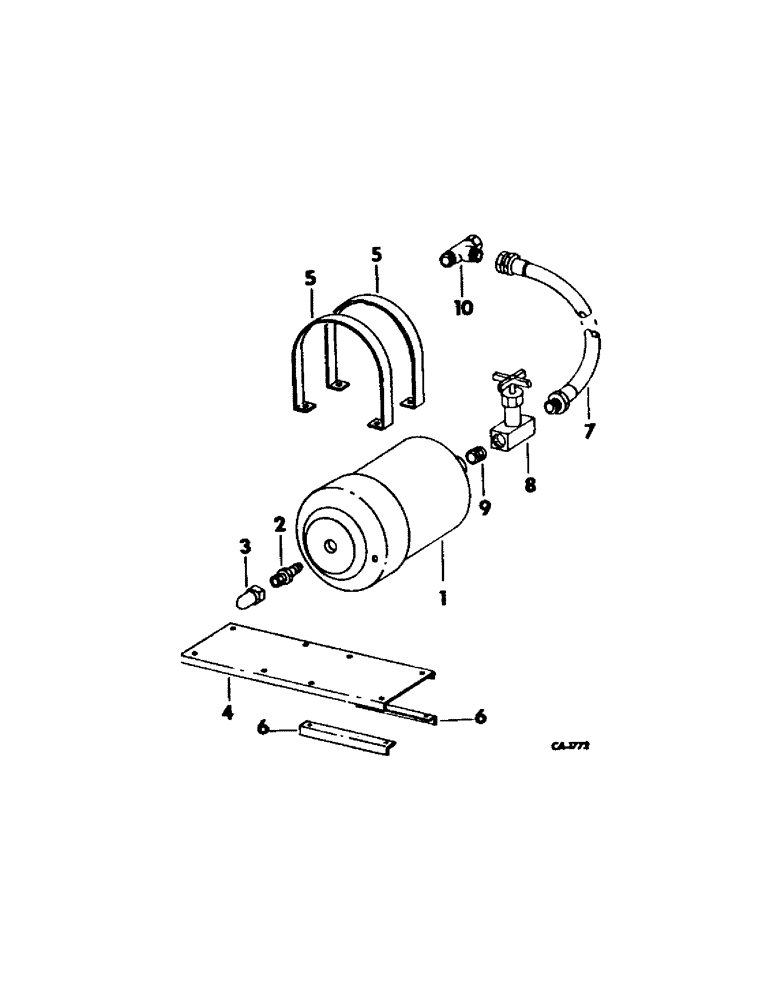

Запчасти Case IH 915 (F-26) - HYDRAULICS SYSTEM, ACCUMULATOR ATTACHMENT (07) - HYDRAULIC SYSTEM

1

172129C91

ACCUMULATOR ASSY, includes ref. nos. 2 and 3

1шт.

2

172130C91

VALVE

ASSY, accumulator tank

1шт.

3

172131C1

GUARD

accumulator tank valve

1шт.

4

172138C1

PLATE, tank support

1шт.

5

172133C1

SUPPORT

STRAP, accumulator mounting

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

6

172141C1

ANGLE, accumulator

2шт.

25369R1

BOLT, 5/16 x 10-1/2 hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

172136C1

HOSE ASSY, accumulator, 20 inch

1шт.

8

172135C1

VALVE, accumulator line shut-off

1шт.

9

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 close pipe

1шт.

10

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

5/8 90 deg swivel

1шт.
