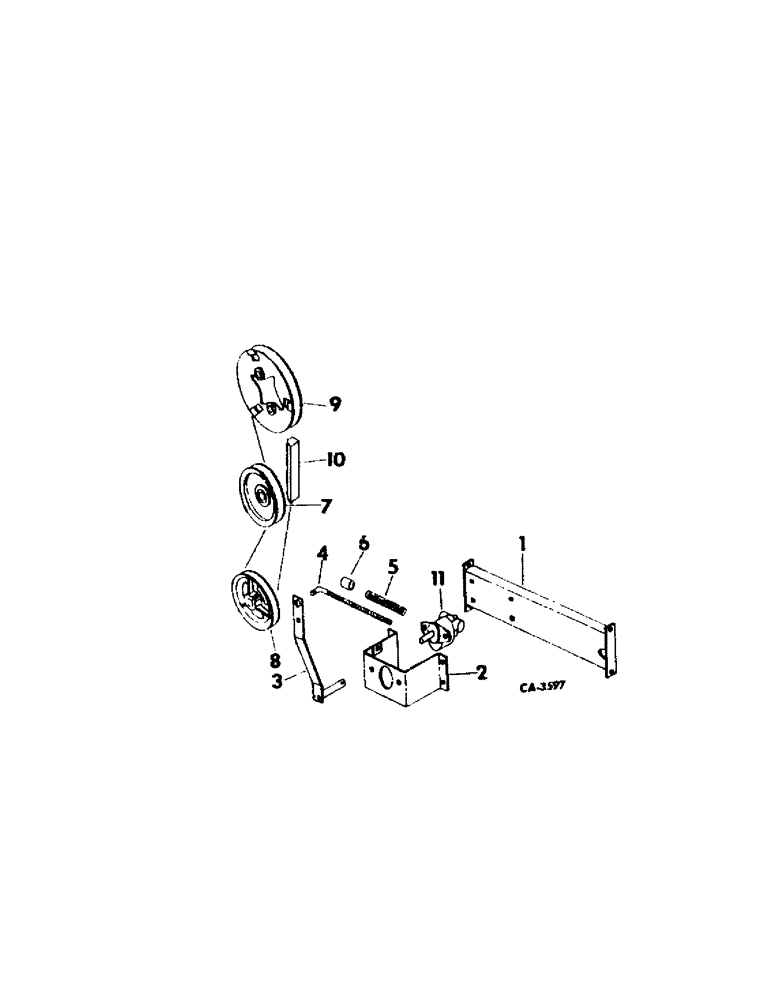

Запчасти Case IH 915 (F-26[1]) - HYDRAULICS SYSTEM, HYDRAULIC REEL PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

177186C1

SUPPORT ASSY, reel drive pump mounting

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

177183C1

BRACKET ASSY, reel drive pump mounting

1шт.

3

150677C91

ARM ASSY, reel drive belt idler pulley

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

4

177189C1

ROD, reel drive belt idler pulley adj

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

5

V679

VALVE SPRING

SPRING, idler pulley adjusting rod

1шт.

6

150682R1

SPACER, idler pulley adj rod spring

1шт.

7

570265R91

PULLEY

reel drive belt idler, 7 in. OD

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

8

177180C1

PULLEY, reel driven, 6-3/4 in. OD

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

9

177179C1

PULLEY, reel driven, 12 in. OD

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

10

177178C1

BELT, reel drive, 81-1/2 in. OC

1шт.

11

177191C91

PUMP ASSY, reel drive

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
