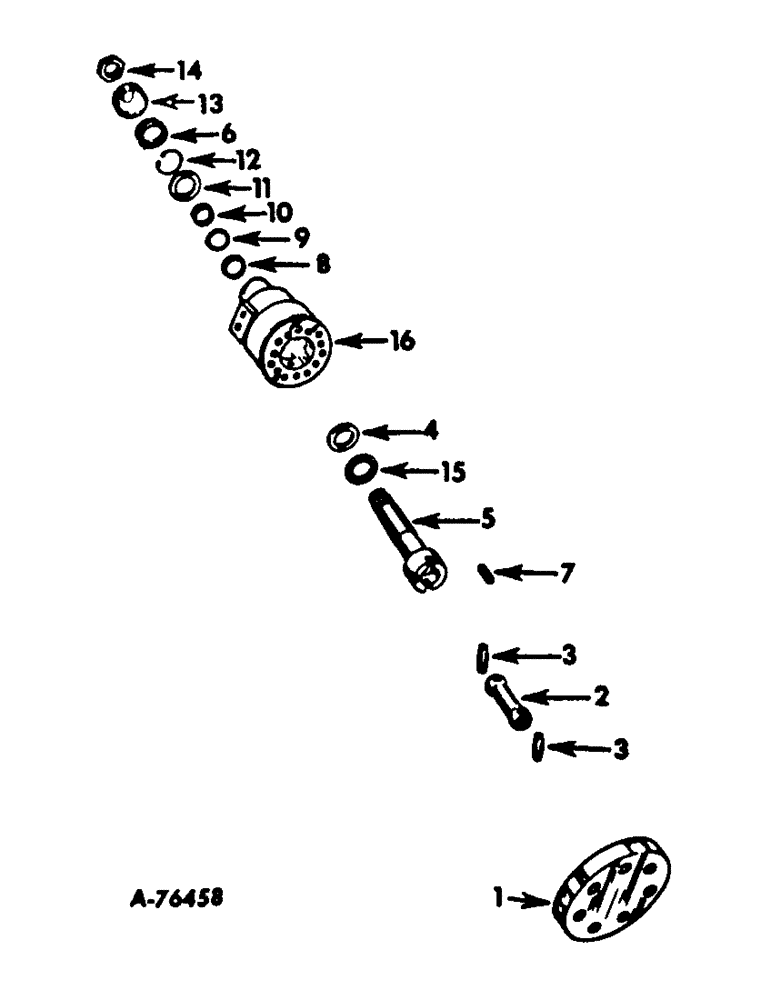

Запчасти Case IH 915 (F-25) - HYDRAULICS SYSTEM, STEERING HAND PUMP (07) - HYDRAULIC SYSTEM

160454C91

PUMP ASSY, steering hand

1шт.

1

379698R1

COVER

end

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16 x 2 C-Z hex-hd cap

7шт.

2

379701R1

LINK

pump

1шт.

3

379693R1

PIN

2шт.

4

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

5

379784R1

SHAFT

coupling

1шт.

6

10026R1

BEARING

ASSY, needle

1шт.

7

379700R1

PIN

spool

1шт.

8

PACKING, shaft, (not serviced separately) order 535122R91 package assy

1шт.

9

RING, back-up (not serviced separately) order 535122R91 package assy

1шт.

10

RING, nylon (not serviced separately) order 535122R91 package assy

1шт.

11

373005R1

RING

back up

1шт.

12

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

13

376481R1

GASKET

BUSHING, felt

1шт.

14

F19646

LOCK NUT,13/16"-20, Thin

NUT, wheel

1шт.

15

379783R91

THRUST BEARING

BEARING ASSY, needle thrust

1шт.

16

BODY, pump, (not serviced separately) order 160454C91 pump assy

1шт.

535122R91

SERVICE KIT

PACKAGE, hydrostatic hand pump service, consists of the following, (1) packing, block 379725R1, (1) ring, back-up 535123R1, (1) bushing, felt 376481R1, (1) washer, brass 535124R1

1шт.
