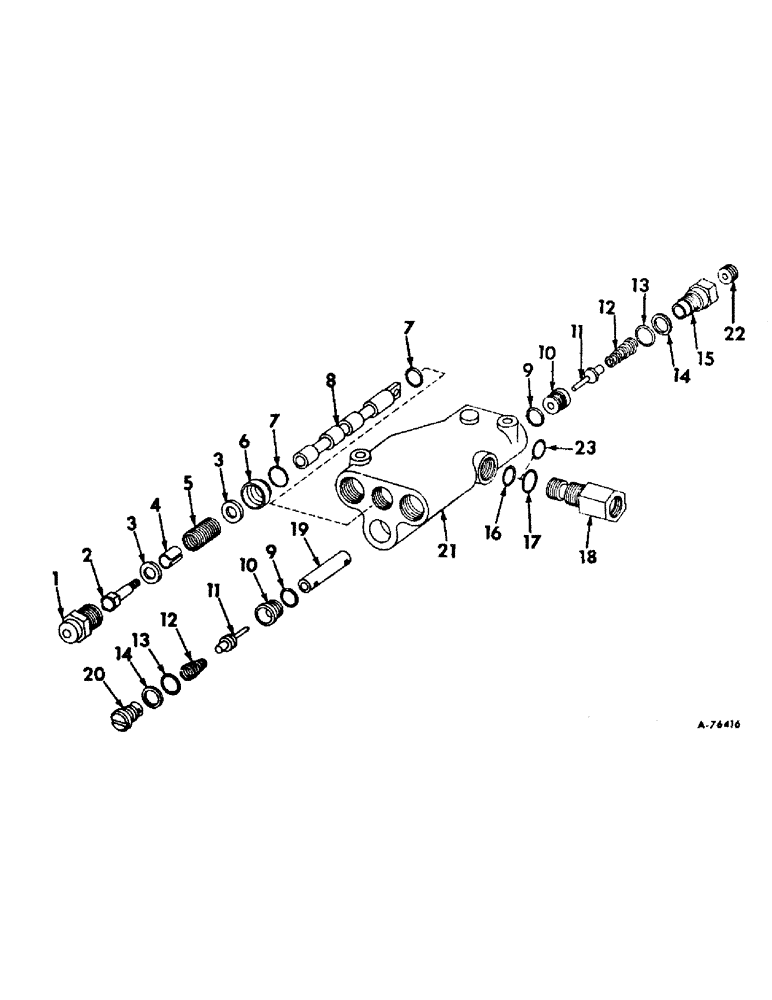

Запчасти Case IH 915 (F-24) - HYDRAULICS SYSTEM, LADDER SWING VALVE (07) - HYDRAULIC SYSTEM

166995C91

VALVE ASSY, ladder swing

1шт.

1

674493R91

CAP

ASSY

1шт.

2

674491R1

SCREW

spool

1шт.

3

674495R1

WASHER, serial no. 1777 and below

2шт.

3

673628R1

WASHER

serial no. 1778 and above

2шт.

4

674492R1

SPACER

spool

1шт.

5

674490R1

SPRING

spool center

1шт.

6

674775R1

BUSHING

1шт.

7

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 ID

2шт.

8

SPOOL, (not serviced separately) order 166995C91 valve assy

1шт.

9

370920R1

O-RING,1/2" ID

2шт.

10

674505R91

SEAT

ASSY, includes ref. no. 9

2шт.

11

588351R91

VALVE

POPPET ASSY

2шт.

12

674509R1

SPRING

lockout

3шт.

13

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

14

575585R1

O-RING

3шт.

15

674507R91

PLUG

ASSY, port adapter, includes ref. nos. 13 and 14

1шт.

16

598644R1

WASHER

backup

1шт.

17

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

18

673907R91

PLUG ASSY, serial no. 1777 and below

1шт.

18

598386R91

PLUG

ASSY, serial no. 1778 and above

1шт.

19

588352R1

PLUNGER

lockout

1шт.

20

674506R91

PLUG

ASSY, set retainer, includes ref. nos. 13 and 14

1шт.

21

BODY, (not serviced separately) order 166995C91 valve assy

1шт.

22

168187C1

PLATE, orifice

1шт.

23

370920R1

O-RING,1/2" ID

1шт.

168186C91

KIT, seal repair, consists of (2) poppet assy 588351R91, (2) o-ring 252739R1, (3) o-ring 350429R1, (3) washer, back up 587585R1, (3) o-rings 370920R1

1шт.
