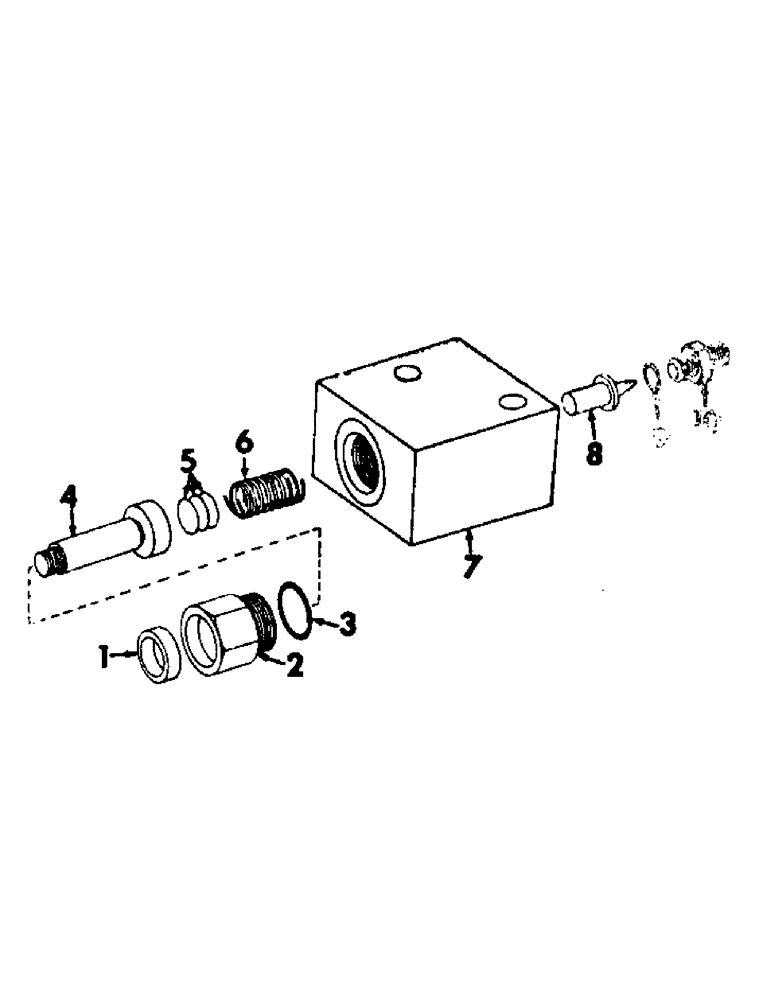

Запчасти Case IH 915 (F-23) - HYDRAULICS SYSTEM, FOOT-N-INCH VALVE (07) - HYDRAULIC SYSTEM

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch, includes ref. nos. 1 thru 10

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

OIL SEAL

1шт.

2

398707R11

GUIDE

ASSY, valve spring stop, includes ref. no. 1

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

398708R1

STOP

valve

1шт.

5

530575R91

SHIM KIT

PACKAGE, relief valve shims

1шт.

6

403434R1

SPRING

valve

1шт.

7

BODY, valve (not serviced separately) order valve assy 403347R91

1шт.

8

398710R1

VALVE POPPET

VALVE, poppet

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Valve seat

1шт.

10

398709R1

SEAT

poppet valve

1шт.
