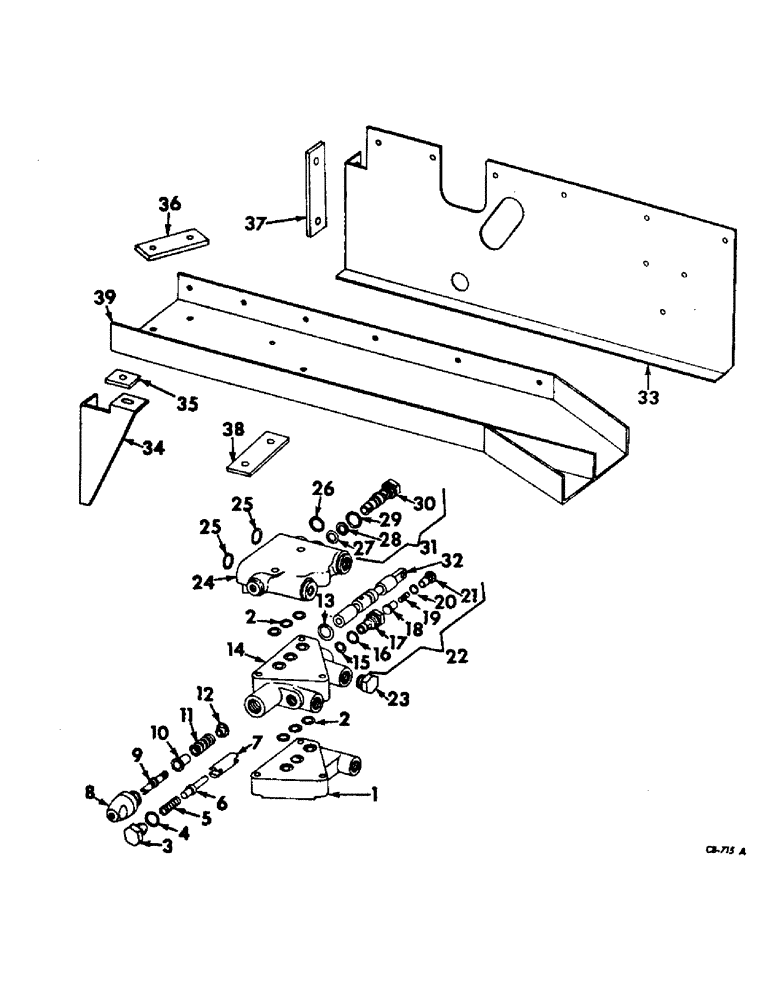

Запчасти Case IH 915 (F-20[B]) - HYD. SYS., PLATFORM LIFT VALVE & SUPPORTS,FOR COMBINES W/PLATFORM AUTOMATIC CONTROL S/N 1250 & ABOVE (07) - HYDRAULIC SYSTEM

164753C91

HYDRAULIC VALVE

VALVE ASSY, platform lift, includes ref. nos. 1 thru 32

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

166882C1

VALVE

PLATE, end RH

1шт.

2

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 ID

6шт.

3

159801C1

PLUG

hex.

1шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

5

159382C1

SPRING

lockout

1шт.

6

159380C91

VALVE

POPPET ASSY

1шт.

7

159379C1

PLUNGER

lockout

1шт.

8

937198R91

CAP

ASSY

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

9

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

10

937195R1

SPRING WASHER

spool spring

1шт.

11

588353R1

SPRING

spool centering

1шт.

12

937194R1

SPRING WASHER

spool spring

1шт.

13

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

14

159376C91

VALVE

ASSY, four-way, includes ref. nos. 3 thru 13, 15 thru 22 and 32

1шт.

15

1692401R

O-RING, 3/32 x 9/16 ID

1шт.

16

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

17

PLUG, hex. (not serviced separately) order plug assy 173827C91

1шт.

18

387436R1

TAPPET

PLUNGER, check

1шт.

19

387437R1

SPRING

check

1шт.

20

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/6 x 3/32

1шт.

21

PLUG, (not serviced separately) order plug assy 173827C91

1шт.

22

173827C91

VALVE

PLUG ASSY, check, includes ref. nos. 15 thru 21

1шт.

23

9410359

PLUG

hex.

1шт.

24

166881C91

VALVE ASSY, unloader swing, includes ref. nos. 25 and 26

1шт.

25

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

2шт.

26

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

27

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

28

587585R1

WASHER

backup

1шт.

29

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

30

BODY, (not serviced separately) order valve assy 167447C91

1шт.

31

167447C91

VALVE

ASSY, relief 1750 PSI, includes ref. nos. 27 thru 30

1шт.

32

SPOOL, (not serviced separately) order valve assy 159376C91

1шт.

166883C91

PACKAGE

KIT, major seal repair, consists of the following, (1) kit 159383C91, (2) o-ring 350667R1, (1) o-ring 352221R1, (3) o-ring 574069R1, (1) o-ring 350429R1, (1) o-ring 252707R1, (1) o-ring 673644R1

1шт.

159383C91

PACKAGE

KIT, seal repair, consists of the following (1) o-ring 252707R1, (1) o-ring 252739R1, (1) o-ring 310925R1, (1) o-ring 321956R1, (1) poppet assy 159380C91

1шт.

33

164648C1

SWITCH

SUPPORT, hyd valve front outer

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8x 1-1/4 C-Z sq-nk crg

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.

34

164646C1

BRACKET, hyd valve support

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

475954R1

NUT

3/8 C-Z flange lock

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

35

165640C1

PAD, hyd valve support left rear

1шт.

36

165767C1

STRAP, platform lift valve rubber

1шт.

37

164639C1

PAD, hyd valve support left front

1шт.

38

165767C1

PAD, hyd valve support right

1шт.

39

1672929C2

SUPPORT ASSY, hyd valve

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.
