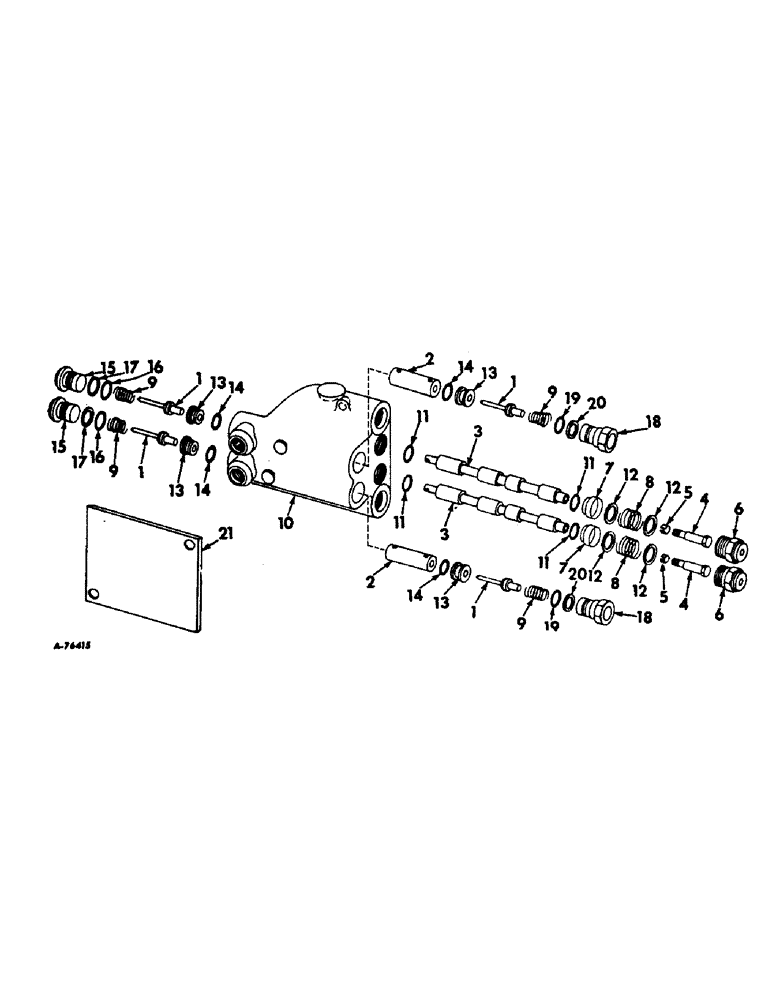

Запчасти Case IH 915 (F-18) - HYDRAULICS SYSTEM, GRAIN TANK UNLOADER TUBE SWING AND REEL LIFT VALVE (07) - HYDRAULIC SYSTEM

164754C91

VALVE

ASSY, grain tank unloader tube swing and reel lift valve, includes ref. nos. 1 thru 20

1шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

1/4 x 2-1/4 znp hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

588351R91

VALVE

POPPET ASSY

4шт.

2

588352R1

PLUNGER

lockout

2шт.

3

SPOOL, (not serviced separately) order 167754C91 valve assy

2шт.

4

674491R1

SCREW

spool

2шт.

5

674492R1

SPACER

spool

2шт.

6

674493R1

CAP

ASSY

2шт.

7

674775R1

BUSHING

2шт.

8

674490R1

SPRING

spool center

2шт.

9

674509R1

SPRING

lockout

4шт.

10

BODY, (not serviced separately) order 164754C91 valve assy

1шт.

11

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

4шт.

12

674495R1

WASHER, serial no. 1777 and below

4шт.

12

673628R1

WASHER

serial no. 1778 and above

4шт.

13

674505R91

SEAT

ASSY, includes ref. no. 14

4шт.

14

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

4шт.

15

674506R91

PLUG

ASSY, seat retainer, includes ref. no. 16

2шт.

16

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

17

587585R1

WASHER

back-up

2шт.

18

674507R91

PLUG

ASSY, port adapter, includes ref. no. 19

2шт.

19

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

20

587585R1

WASHER

back-up

2шт.

21

165769C1

STRAP, grain tank unloader tube swing & reel lift valve

1шт.

168028C91

PACKAGE, REPAIR

KIT ASSY, major seal repair, composed of (4) poppet assy 588351R1, (4) o-ring 1/2 x 11/16 x 3/32 252739R1, (4) o-ring 5/8 x 13/16 x 3/32 350429R1, (4) washer back-up 587585R1, (4) o-ring 1/2 x 5/8 x 1/16 370920R1

1шт.
