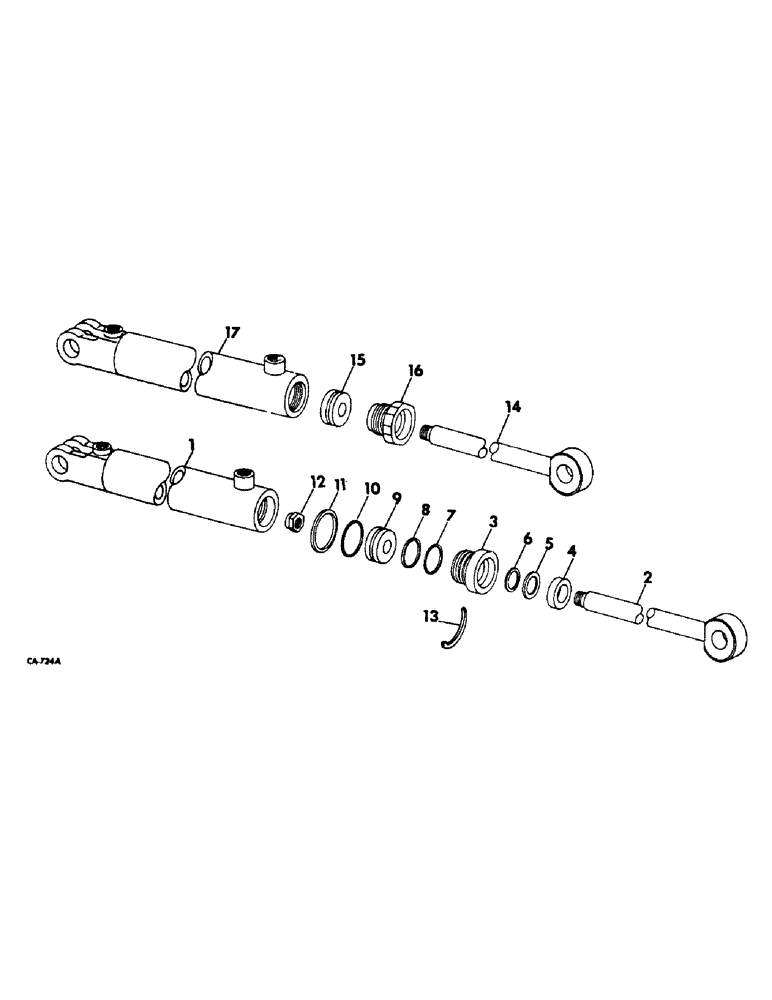

Запчасти Case IH 915 (F-17) - HYDRAULICS SYSTEM, UNLOADER TUBE SWING CYLINDER (07) - HYDRAULIC SYSTEM

532764R91

CYLINDER

ASSY, unloader tube swing, includes ref. nos. 1 thru 13 and kit assy 532775R91, optional for 160419C91 cyl

1шт.

1

532776R1

SPARE PART

BODY ASSY, hyd cyl.

1шт.

2

532780R1

ROD

ASSY, piston

1шт.

3

532783R1

NO LONGER SERVICED

HEAD, front

1шт.

4

532784R1

SEAL

WIPER, front

1шт.

5

532642R1

WASHER

back-up

1шт.

6

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32

1шт.

7

532619R1

WASHER

back-up

1шт.

8

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 3/32 class 6

1шт.

9

532528R1

PISTON

hyd cyl

1шт.

10

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32 class 6

1шт.

11

532529R1

O-RING

RING, square

1шт.

12

9415991

NUT, 7/16-20 CDP type CL hex. lock

1шт.

13

532530R1

RETAINER

front head

1шт.

532775R91

KIT

ASSY, hydraulic cyl repair, consists of the following (1) wiper 532784R1, (1) washer 532642R1, (1) o-ring 606271R1, (1) washer 532619R1, (1) o-ring 362796R1, (1) retainer 532530R1, (1) o-ring 380794R1, (1) washer 532529R1

1шт.

160419C91

CYLINDER

ASSY, unloader tube swing, includes ref. nos. 14 thru 17 and kit assy 169021C91, optional for 532764R91 cyl

1шт.

14

169024C1

ROD ASSY, piston

1шт.

15

169023C1

PISTON, rod

1шт.

16

169022C1

FITTING, rod bearing

1шт.

17

169025C1

BARREL ASSY, cylinder

1шт.

169021C91

SEAL KIT

ASSY, hydraulic cyl repair, consists of the following, (1) o-ring 350429R1, (1) o-ring 356005R1, (1) washer 673644R1, (1) o-ring 377028R1, (1) seal no number, (1) ring no number

1шт.
