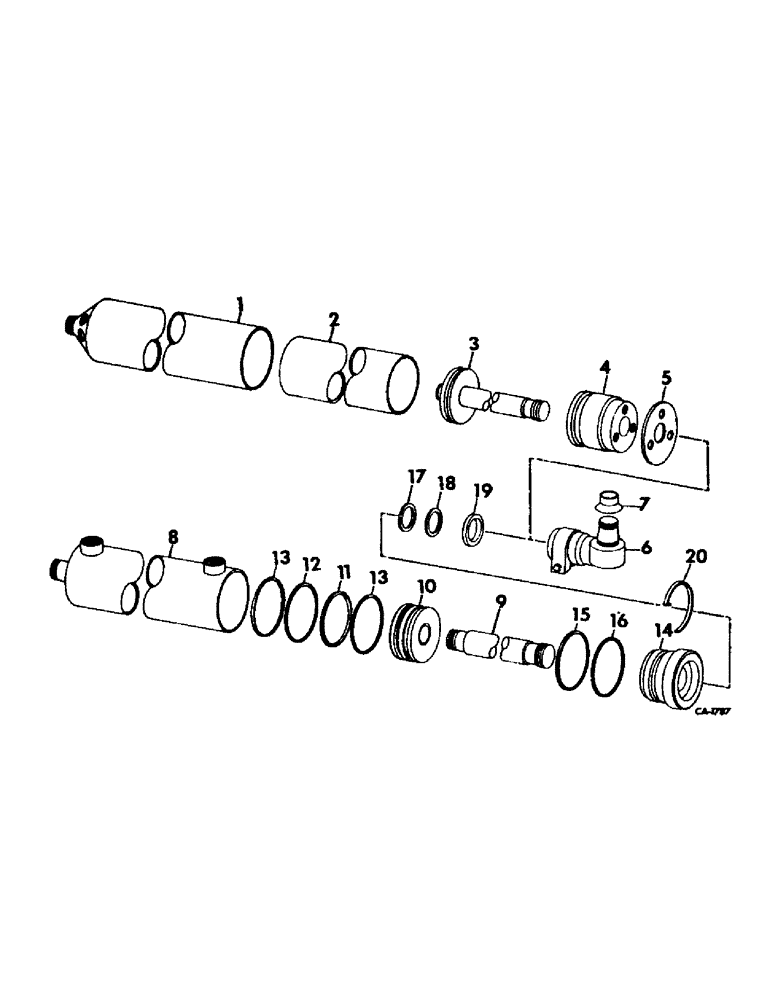

Запчасти Case IH 915 (F-16) - HYDRAULICS SYSTEM, STEERING CYLINDER (07) - HYDRAULIC SYSTEM

157422C91

CYLINDER

ASSY, steering, includes ref. nos, 1 thru 5 and kit assy 168957C1, optional for 547247R91 cyl

1шт.

1

CYLINDER HEAD AND TUBE ASSY, (not serviced separately) order 157422C91 cylinder assy

1шт.

2

TUBE, inner cylinder, order cyl assy 157422C91

1шт.

3

168953C1

PISTON & ROD ASSY

1шт.

9411648

LOCK NUT,1/2"-20, GC

NUT, 1/2-20 C-Z hex. lock

1шт.

4

GLAND, cylinder, order cyl assy 157422C91

1шт.

5

241880R1

LARGE PLATE

PLATE, end

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4 x 5/8 C-Z hex-hd

3шт.

6

157432C91

SOCKET

ASSY, steering cylinder end

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-16 C-Z SLT hex.

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

7

382562R1

SEAL

steering cyl end socket

1шт.

168957C1

KIT

ASSY, steering cylinder

1шт.

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSY, steering, includes ref. nos. 8 thru 20 and kit assy 548357R91, optional for 157422C91 cyl

1шт.

8

548248R1

BODY

ASSY, cylinder

1шт.

9

548251R1

ROD

piston

1шт.

232-4609

LOCK NUT,9/16"-18, GC

NUT, 9/16-18 CAD torque lock

1шт.

10

548252R1

PISTON

steering cylinder

1шт.

11

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-9/16 x 1-3/4 x 3/32

1шт.

12

327220R1

RING, piston

1шт.

13

548253R1

BEARING WASHER

brg piston

2шт.

14

548354R1

HEAD

front

1шт.

15

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16

1шт.

16

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

back-up

1шт.

17

23907R1

O-RING,-212, 90 Duro, .859" ID x .139" Thk

1шт.

18

548355R1

WASHER

back-up

1шт.

19

548358R1

SEAL, rod wiper

1шт.

20

461180R1

RETAINER

RING, retaining

1шт.

548357R91

SEAL KIT

ASSY, cylinder service

1шт.
