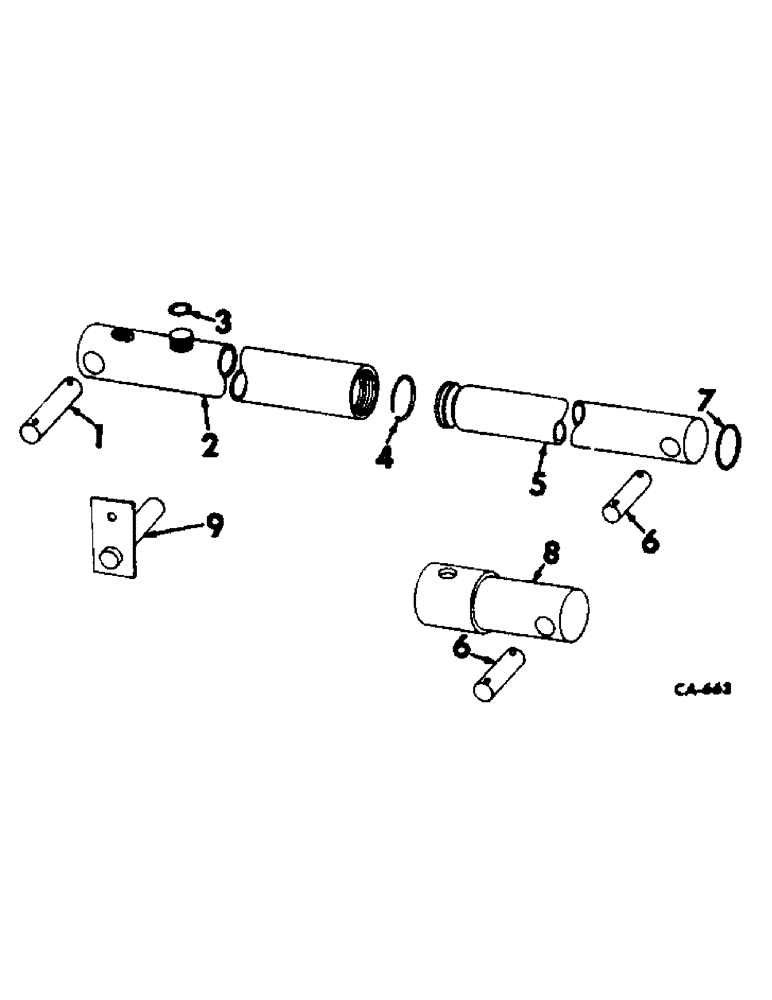

Запчасти Case IH 915 (F-15) - HYDRAULICS SYSTEM, PLATFORM LIFT CYLINDER AND EXTENSIONS, HEAVY DUTY 2-1/2" CYLINDER (07) - HYDRAULIC SYSTEM

160418C91

CYLINDER ASSY, platform lift, 2-1/2 in. cylinder heavy duty, includes ref. nos. 1 thru 7

1шт.

1

164533C1

PIN

platform lift cylinder rear

2шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

4шт.

2

167885C1

BARREL ASSY

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/32 x 41/64 ID

1шт.

4

RING, .118 x 2.226 ID snap

1шт.

5

167886C1

ROD, piston

1шт.

6

569335R1

PIN, platform lift cylinder front, 2 used standard, 4 used w/cyl extensions

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

7

O-RING, 3/16 x 2-1/2 ID

1шт.

8

162173C91

EXTENSION ASSY, platform lift

2шт.

9

167788C1

PIN ASSY, feeder lift cyl lower, for machines w/track att

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

168040C91

KIT, seal repair

1шт.
