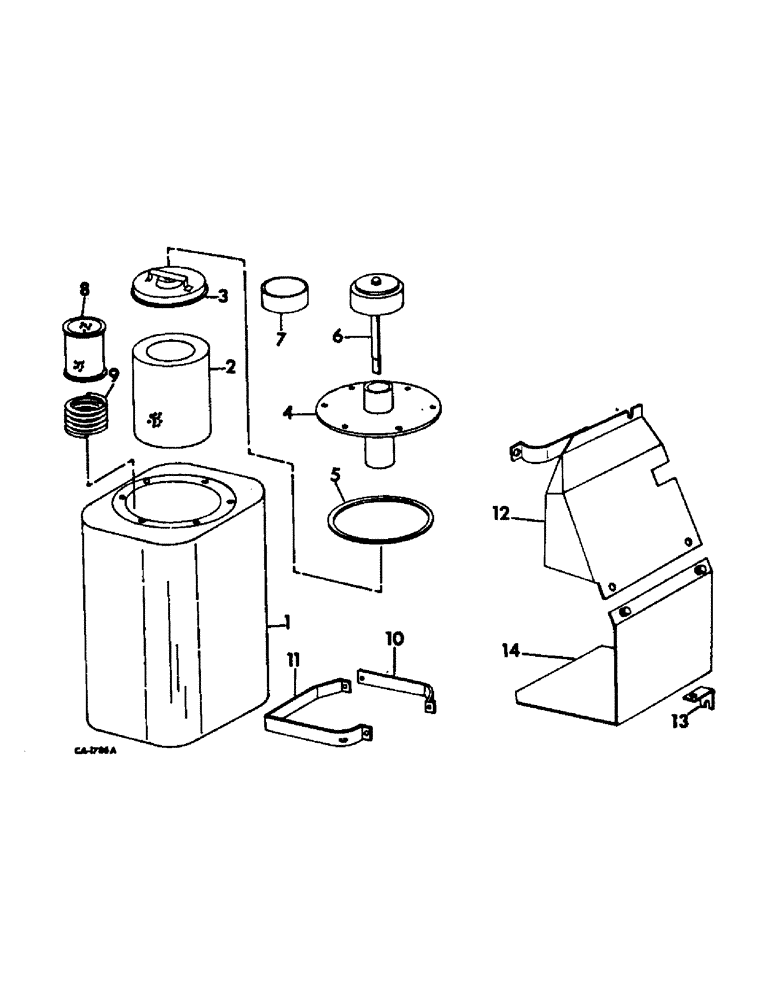

Запчасти Case IH 915 (F-13) - HYDRAULICS SYSTEM, HYDRAULIC RESERVOIR, 171956C91 (07) - HYDRAULIC SYSTEM

171956C91

RESERVOIR ASSY, oil, includes ref. nos. 1 thru 9

1шт.

1

BODY, reservoir, (not serviced separately) order reservoir assy 171956C91

1шт.

2

386120R1

FILTER, ENGINE OIL

ELEMENT ASSY, filter

1шт.

3

173131C1

COVER ASSY

LID ASSY, filter

1шт.

4

173132C1

COVER ASSY, reservoir

1шт.

5

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4

1шт.

6

167461C91

CAP

w/DIPSTICK AND FILTER, includes ref. no. 7

1шт.

7

167852C1

ELEMENT, filter

1шт.

8

173929C1

STRAINER ELEMENT

STRAINER

1шт.

9

173930C1

SPRING

strainer

1шт.

10

160995C1

SUPPORT, hyd oil reservoir

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 C-Z hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

160996C1

SUPPORT, hyd oil reservoir

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

175821C1

SHIELD ASSY, reservoir upper, V-8 engines serial no. 3180 and above

1шт.

13

175825C1

ANGLE, reservoir shield support, V-8 engines serial no. 3180 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

14

175819C1

SHIELD ASSY, reservoir lower, V-8 engines serial no. 3180 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.
