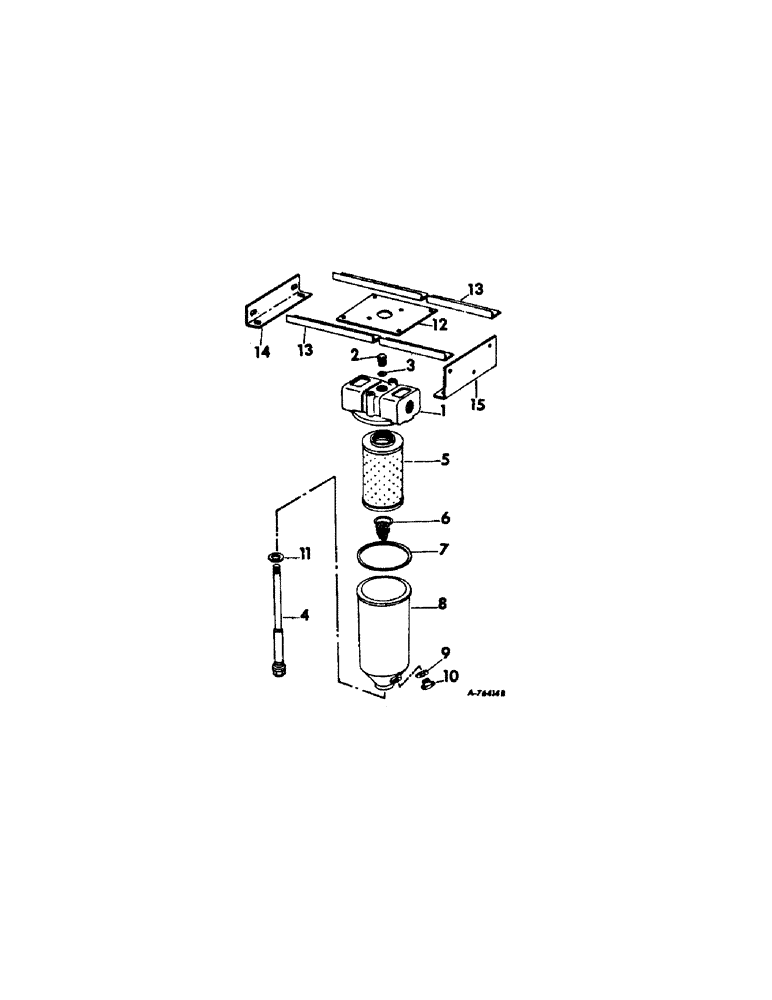

Запчасти Case IH 915 (F-12) - HYDRAULICS SYSTEM, HYDRAULIC OIL FILTER AND SUPPORTS, FOR RESERVOIR ASSY 172003C91 (07) - HYDRAULIC SYSTEM

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil

1шт.

1

(Not serviced separately)

1шт.

2

9410359

PLUG

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

471632R1

BOLT, holdown

1шт.

5

381256R91

ELEMENT

ASSY

1шт.

6

471633R1

SPRING

1шт.

7

381627R1

RUBBER WASHER

GASKET

1шт.

8

471634R1

BODY AND FITTING

1шт.

9

381618R1

COPPER WASHER

GASKET

1шт.

10

445078

PLUG

1шт.

11

381629R1

GASKET

1шт.

12

160682C1

SUPPORT, hydraulic oil filter

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

167908C1

ANGLE, hydraulic oil filter support, for diesel engine

2шт.

13

170578C1

ANGLE, oil filter support, for gasoline or LP gas engine

1шт.

14

166508C1

ANGLE, hydraulic oil filter support

1шт.

15

170577C1

ANGLE, oil filter support, for gasoline or LP gas engine

1шт.
