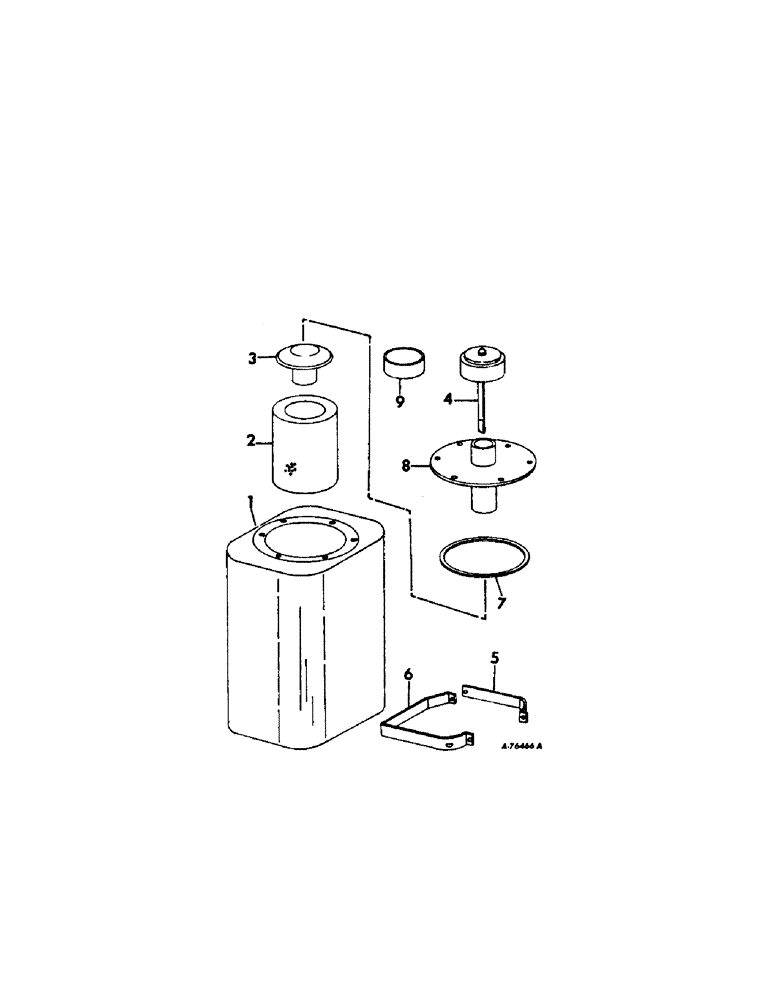

Запчасти Case IH 915 (F-12[1]) - HYDRAULICS SYSTEM, HYDRAULIC RESERVOIR 172003C91 (07) - HYDRAULIC SYSTEM

172003C91

RESERVOIR ASSY, hydraulic oil, includes ref. nos. 1 thru 4, 7, 8 & 9

1шт.

1

BODY, reservoir, (not serviced separately) order reservoir assy 172003C91

1шт.

2

386120R91

FILTER CARTRIDGE

ELEMENT ASSY, oil reservoir

1шт.

3

386121R92

VALVE

ASSY, relief

1шт.

4

167461C91

CAP

w/DIPSTICK & FILTER, reservoir, includes ref. no. 9

1шт.

5

160995C1

SUPPORT, hydraulic oil reservoir

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

160996C1

SUPPORT, hydraulic oil reservoir

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4

1шт.

8

172004C1

COVER ASSY, reservoir

1шт.

9

167852C1

ELEMENT, reservoir cap filter

1шт.
