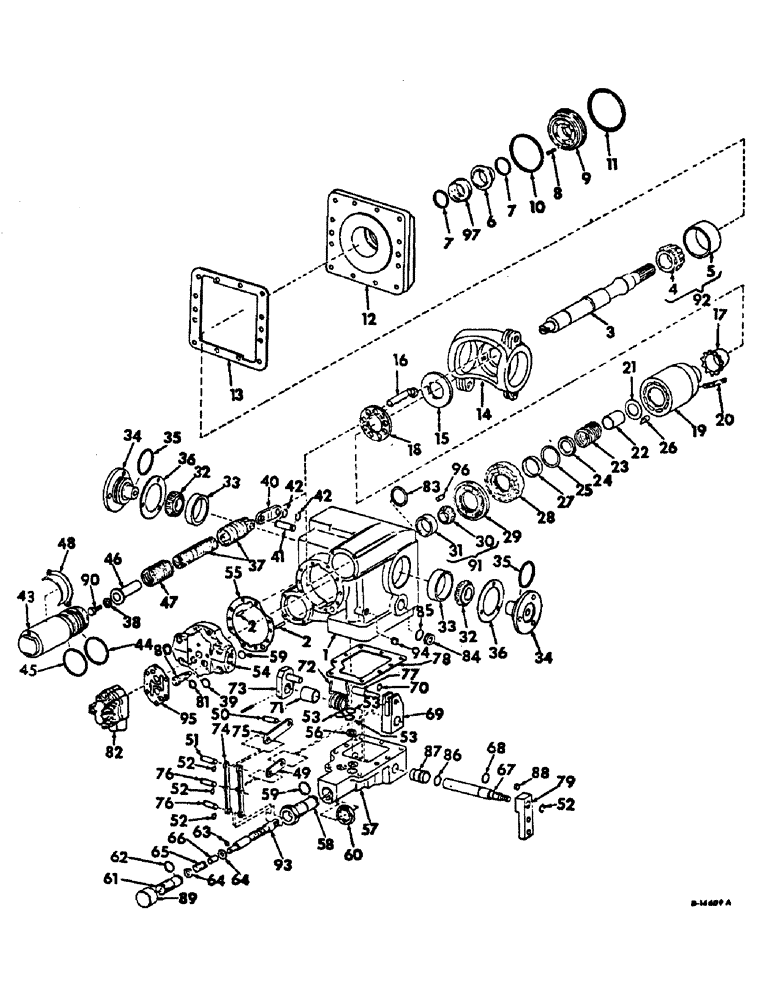

Запчасти Case IH 915 (F-07) - HYDRAULICS SYSTEM, HYDROSTATIC PUMP (07) - HYDRAULIC SYSTEM

67797C91

PUMP

ASSY, transmission

1шт.

67797C92

REMAN-HYD PUMP

Remanufactured PUMP - for N.A. Only

1шт.

1949109C1

CORE-HYDRAULIC PUMP

Return No, PUMP - for N.A. Only

1шт.

1

405123R1

HOUSING, transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

4шт.

3

405124R1

SHAFT, pump drive

1шт.

4

CONE, drive shaft bearing, (not serviced separately) order 405186R91

1шт.

5

CUP, drive shaft bearing, (not serviced separately) order 405186R91

1шт.

6

SEAL, shaft, (not serviced separately) order o-ring and seal package 405125R92

1шт.

7

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2 x 2-3/16 x 3/32, replaces 21480R1

2шт.

8

393882R1

SPRING

drive shaft face seal retainer

8шт.

9

405126R1

RETAINER

ASSY, drive shaft face seal

1шт.

10

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8

1шт.

11

22325R1

SNAP RING,3.875", Int, #387

Ring, Snap, , drive shaft face seal 3.875", Int, #387

1шт.

12

405127R1

COVER

transmission pump front

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4

4шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, 7/16-14 x 1-1/2

8шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

12шт.

13

405129R1

GASKET

transmission pump front cover

1шт.

14

405130R1

HOUSING

SWASHPLATE, transmission pump

1шт.

15

400965R3

PLATE

piston slipper thrust

1шт.

16

538703R1

PISTON

ASSY, cylinder block, replaces 405131R2

9шт.

17

405132R1

GUIDE

cyl block piston slipper

1шт.

18

405133R1

RETAINER

cyl block piston slipper

1шт.

19

67821C1

BLOCK

ASSY, piston cylinder

1шт.

20

67822C1

SPRING

slipper retainer

9шт.

21

405136R1

SEAT

piston cyl block spring

1шт.

22

405137R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

23

532303R2

SPRING

cylinder block

1шт.

24

405139R1

RETAINER

drive shaft rear spring

1шт.

25

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

527636R1

PIN

cylinder block brg plate, replaces 394196R1

1шт.

27

405140R1

RING

cyl block brg plate pilot

1шт.

28

405141R1

PLATE

cyl block brg

1шт.

29

530772R1

LARGE PLATE

PLATE, cyl block valve LH

1шт.

30

CONE, drive shaft pilot bearing, (not serviced separately) order 405152R91

1шт.

31

CUP, drive shaft pilot bearing, (not serviced separately) order 405152R91

1шт.

32

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, swashplate cone

2шт.

33

ST977

TAPERED BEARING,1.7715" ID x 3.277" OD x 0.9575"

BEARING, swashplate cup

2шт.

34

405143R1

TRUNNION

swashplate brg

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

6шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

6шт.

35

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2-3/4 x 3 x 1/8

2шт.

36

405144R1

SHIM

SET, swashplate brg trunnion gasket, consists of two gaskets

1шт.

37

537761R1

PISTON

ASSY, servo, on orders for 529300R1 furnish 537761R1 and 537762R1, includes ref. no. 43

2шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube

1шт.

40

549724R1

LINK

servo piston, replaces 406111R1

2шт.

41

65797C1

PIN

servo piston link

4шт.

42

267805R1

RING

servo piston link pin

8шт.

43

403074R2

SLEEVE

servo piston

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston spring

2шт.

47

549726R1

SPRING

servo piston, replaces 394212R1

2шт.

48

394213R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

10-24 x 3/8 CDP self-tap

4шт.

49

394214R1

LINK

control valve

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

404781R1

PIN

pivot

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

385180R1

WASHER

9/32 x 1/2 x .065

1шт.

52

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , control valve link pin, replaces 233045R1 #25, Ext, E-Type

7шт.

53

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

3шт.

54

530733R1

CAP

transmission pump rear end

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

4шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 hex-hd cap

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

8шт.

55

405147R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

57

HOUSING, control valve, (not serviced separately) order control valve and spool kit 533856R1

1шт.

58

394222R1

HOUSING

centering spring

1шт.

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

59

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

2шт.

60

394223R1

LOCK NUT

centering spring housing lock

1шт.

61

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring adjusting

1шт.

219753

BACK-UP RING

3/4-16 hex. jam

1шт.

62

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

63

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Spring adjusting #25, Ext, Crescent

1шт.

64

527553R1

SPRING WASHER

centering spring

2шт.

65

527554R1

SPRING

centering

1шт.

66

394227R1

SLEEVE

centering spring

1шт.

67

394228R1

SHAFT

control valve handle

1шт.

68

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

69

406903R1

LINK

control valve handle shaft

1шт.

70

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

71

394230R1

SLEEVE

control valve handle shaft return spring

1шт.

72

394231R1

SPRING

control valve handle shaft return

1шт.

73

394232R1

ARM

ACTUATOR, control valve handle return spring

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

74

394233R1

LINK, control valve, replaces 404712R1

2шт.

75

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link

1шт.

76

394235R1

PIN

control valve link pivot

2шт.

77

406905R1

PIN

control valve handle shaft link

1шт.

78

394237R2

GASKET

control valve housing

1шт.

79

404782R1

HANDLE

control valve shaft

1шт.

80

394238R91

VALVE

ASSY, charge pump check

2шт.

81

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

82

405073R91

HYDROSTATIC PUMP

PUMP ASSY, charge LH

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

83

405128R1

SHIM

pump shaft rear brg .010

1шт.

84

9410356

PLUG

7/16-20 hex-hd o-ring boss

3шт.

85

369751

O-RING, .351 x .072

3шт.

86

23178R1

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

87

404711R1

BUSHING

control shaft

1шт.

88

404783R1

SPACER

control valve handle

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

121753

WASHER

1/4 ext-tooth lock

1шт.

89

400546R1

COVER

centering spring housing

1шт.

90

537762R1

SCREW

1/4-20 x 5/8 he-xhd nylon coated cap

2шт.

91

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, drive shaft rear pilot

1шт.

92

4051869R1

BEARING ASSY, drive shaft front

1шт.

93

VALVE, control, (not serviced separately) order control valve and spool kit 533856R1

1шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, 1/4-20 x 2-1/4 hex-hd cap

9шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

94

444687

PLUG,Hex Soc, 1/8"-27

Automotive, Pipe Hex Soc, 1/8"-27

1шт.

95

533858R1

GASKET

charge pump, replaces 404784R1

1шт.

96

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

97

SEAL, housing, (not serviced separately) order o-ring and seal package 405125R92

1шт.

533855R91

VALVE ASSY, control, replaces 394220R93, consists of ref. nos. 57 thru 72, 86, 87 and 93

1шт.

405125R92

PACKAGE

o-ring and seal, consists of (1) seal (NSS), (1) seal (NSS), (2) o-ring 26079R1, (8) spring 393882R1, (1) o-ring 610411R1

1шт.
