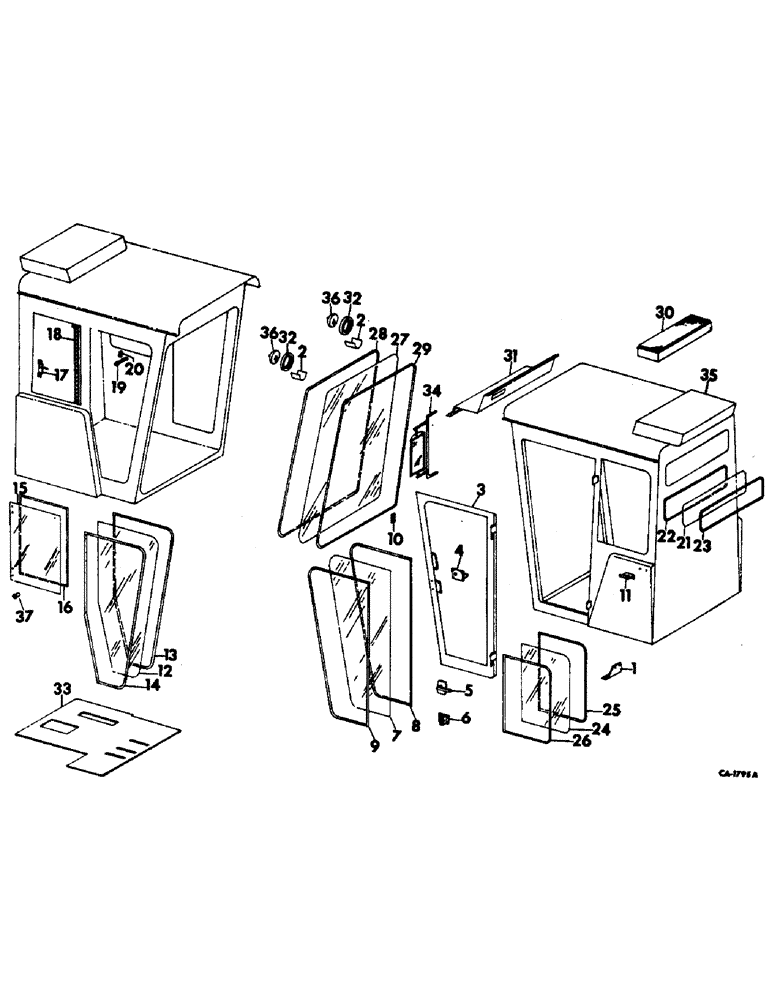

Запчасти Case IH 915 (N-04) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB, SERIAL NO. 1865 AND ABOVE, CAB W/ REAR AIR INTAKE Accessories & Attachments

Артикул

Название

Примечание

Количество

1

169186C1

BRACKET, separator shield support

1шт.

587640R1

NUT, 1/4 speed

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

1шт.

2

168925C1

SHIELD

headlight

2шт.

3

173918C91

DOOR ASSY, cab, includes ref. nos. 4 thru 9

1шт.

4

169156C1

LATCH

LOCK ASSY, door

1шт.

5

393237R91

HANDLE

ASSY, door

1шт.

6

173897C1

LATCH

ASSY, door holder

1шт.

7

173905C1

GLASS, door

1шт.

8

886263C1

SEAL, glass moulding, 137 inches

1шт.

9

886262C1

STRIP, filler, 137 inches

1шт.

10

392801R1

STRIKER PLATE

PLATE, door striker

1шт.

11

173911C1

LATCH, door

1шт.

12

173903C1

GLASS, RH side front

1шт.

13

169148C1

SEAL, glass mounting, 136 inches

1шт.

14

169153C1

STRIP, filler, 136 inches

1шт.

15

173904C1

GLASS, RH rear side vent

1шт.

16

173900C1

MOULDING, rear RH window, 100 inches

1шт.

17

170404C1

HANDLE

ASSY, vent window

1шт.

18

173912C1

HINGE ASSY, vent window

1шт.

19

168914C1

LATCH, vent window holding

1шт.

20

168913C1

SPRING, vent window latch

1шт.

21

168814C1

GLASS, rear

1шт.

22

169146C1

SEAL, glass mounting, 96 inches

1шт.

23

169151C1

STRIP, filler, 96 inches

1шт.

24

168811C1

GLASS, LH rear side

1шт.

25

169145C1

SEAL, glass moulding, 88 inches

1шт.

26

169150C1

STRIP, filler, 88 inches

1шт.

27

168809C1

GLASS, windshield

1шт.

28

169149C1

SEAL, glass moulding, 190 inches

1шт.

29

169154C1

STRIP, filler, 190 inches

1шт.

30

167870C1

FILTER

ASSY

1шт.

31

173919C91

WRAPPER w/DOME LIGHT & LOUVERS, pressurizer, refer to cab pressurizer unit for listing

1шт.

32

676078R1

RETAINER

shockproof light

2шт.

33

165067C1

MAT

operators cab floor, for chain drive feeder

1шт.

33

169205C1

MAT, operators cab floor, for belt drive feeder

1шт.

34

167477C91

MIRROR ASSY, rear view, refer to rear view mirror unit for listing

1шт.

35

173917C1

AIR SCOOP, assy

1шт.

36

535850R1

LAMP

headlight

2шт.

37

896274C1

BUSHING

5шт.

Выбрано товаров: 40
