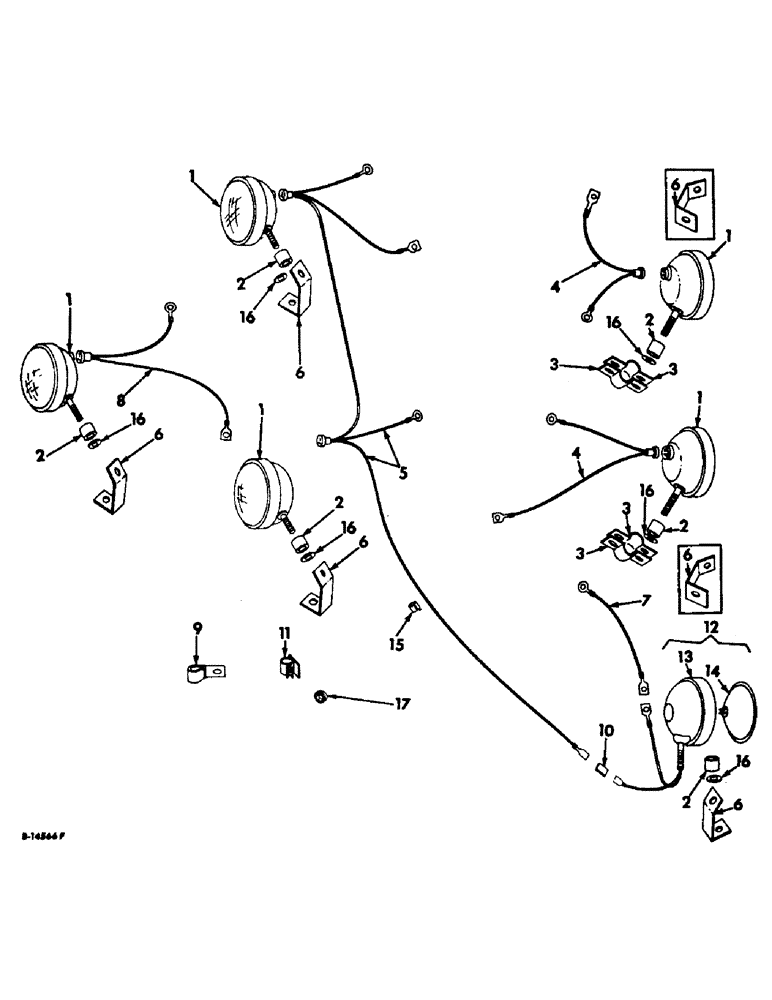

Запчасти Case IH 915 (G-27) - ELECTRICAL SYSTEM, NIGHT LIGHT ATTACHMENT (06) - ELECTRICAL SYSTEMS

1

391005R91

HEADLIGHT

LAMP ASSY, head, grain tank & rear

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

5шт.

2

49069D

SPACER

lamp, serial no. 1849 and below

6шт.

3

167032C1

CLAMP, head light, not used w/operators cab

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

166059C91

CABLE ASSY, front light, not for use w/operators cab

2шт.

4

167412C1

CABLE

ASSY, front light, for use w/operators cab

2шт.

5

163812C91

HARNESS ASSY, grain tank light cable, 75 in.

1шт.

6

561915R1

BRACKET

lamp mounting, 4 used w/grain tank not oper cab, 6 used w/grain tank and oper cab

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

388825R91

CABLE ASSY, right front head light, 6 in.

1шт.

8

165669C91

CABLE ASSY, rear light

1шт.

9

362127R1

CLIP

light cable

1шт.

9

366460R1

CABLE CLIP

CLIP, grain tank right front

1шт.

10

376749R1

BODY

CONNECTOR, plastic body single line

1шт.

11

166921C1

CLIP, grain tank light cable

9шт.

12

402080R91

LAMP ASSY, right front, serial no. 1249 and below

1шт.

12

391005R91

HEADLIGHT

LAMP ASSY, right front, serial no. 1250 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

13

676078R1

RETAINER

shock proof light, serial no. 1249 and below

1шт.

14

373662R91

LAMP

UNIT ASSY, sealed beam, serial no. 1249 and below

1шт.

14

371443R91

LAMP BASE

UNIT ASSY, sealed beam, serial no. 1250 and above

1шт.

15

163489C1

STRIP

grain tank light cable rubber

1шт.

16

936476R1

SQ HOLE WASHER

lamp spacer, serial no. 1850 and above

1шт.

17

117959

GROMMET,5/16" ID x .719" x .062"

rubber plain diagonal cut, for grain tank right front

1шт.
