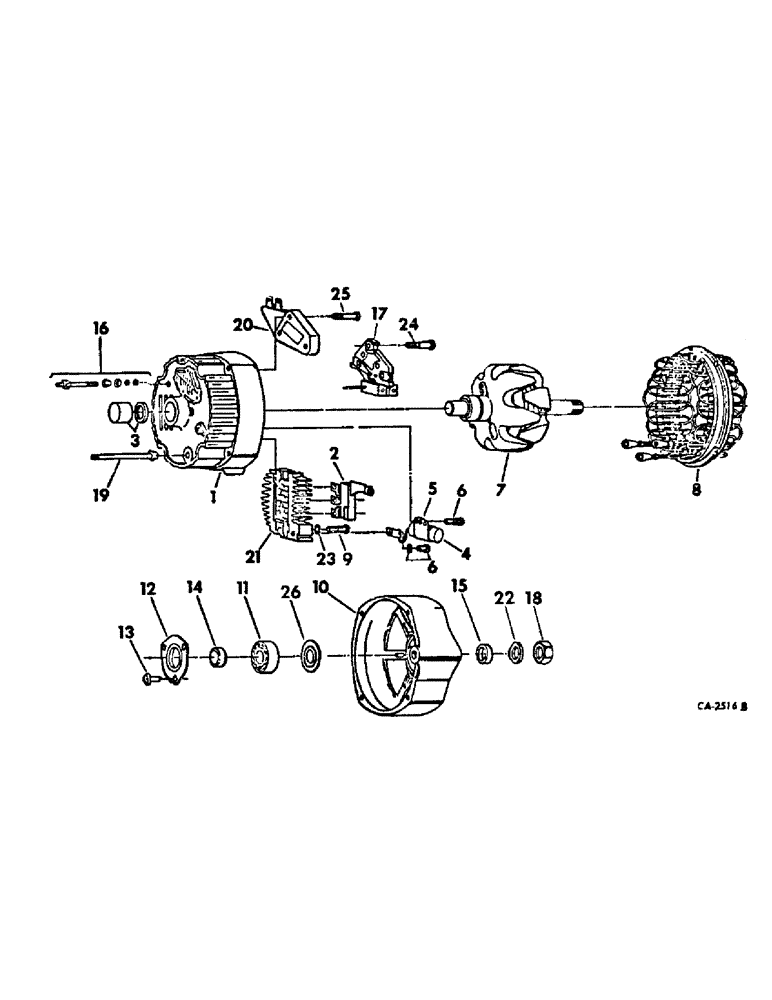

Запчасти Case IH 915 (G-22) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR (06) - ELECTRICAL SYSTEMS

1100587

ALTERNATOR

GENERATOR, ALTERNATOR, Delco Remy

1шт.

87297246

REMAN-ALTERNATOR

Reman For New P/N 1100587

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1100587

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N 1100587

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

121743

CHAIN,#12 - 24

1/2-20 C-Z hex. mach screw

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

1

1846523

SPARE PART FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1971990

ROTOR

ROTOR ASSY

1шт.

8

1851572

STATOR

STATOR ASSY

1шт.

9

1846548

CLIP

CLIP, stator lead terminal

3шт.

10

1970525

FUNNEL

FRAME FRAME, drive end

1шт.

11

539103R1

BALL BEARING,16.99mm ID x 40mm OD x 12mm W

BEARING, drive end ball

1шт.

12

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end

1шт.

15

1959991

COLLAR

COLLAR, outside drive end

1шт.

16

1846900

PACKAGE

TERMINAL PACKAGE, battery

1шт.

17

1852002

BRUSH HOLDER

BRUSH HOLDER & BRUSH

1шт.

18

1964117

SPRING

SPRING, brush

2шт.

19

1956975

BOLT

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

20

1116387GV

VOLTAGE REGULATOR

REGULATOR

1шт.

21

1971987

SPARE PART BRIDGE, positive rectifier

1шт.

22

453434

NUT

NUT, rectifier bridge

3шт.

23

1847933

WASHER

WASHER, rectifier bridge attaching screw spring

3шт.

24

1846864

SCREW

SCREW, insulated brush holder

2шт.

25

1971519

SCREW

SCREW, regulator attaching

1шт.

26

1847933

WASHER

WASHER, brush holder screw spring

3шт.

27

800832

WASHER

WASHER, drive end grease slinger

1шт.

28

1915172

NUT

NUT, drive end shaft

1шт.

29

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

30

1847940

SCREW

SCREW, rectifier bridge attaching

1шт.
