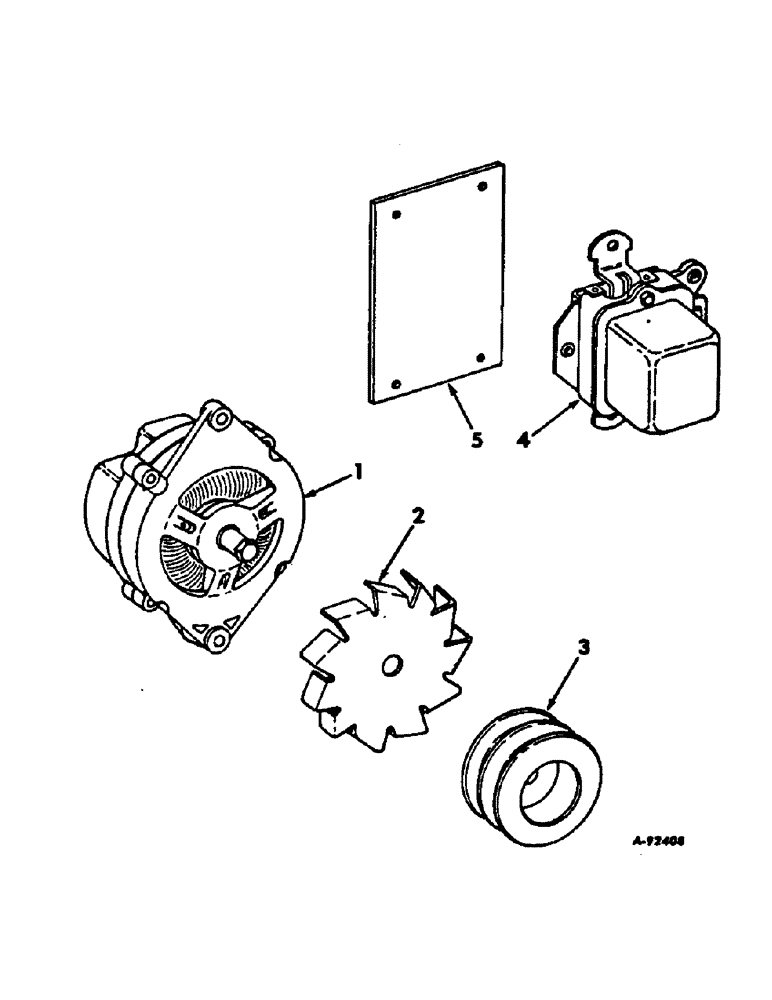

Запчасти Case IH 915 (G-19) - ELECTRIC. SYSTEM, ALTERNATOR-GENERATOR AND CONNECTION,GASOLINE OR LP GAS ENGINE W/ VOLTAGE REGULATOR (06) - ELECTRICAL SYSTEMS

1

1100791

GENERATOR

ALTERNATOR-GENERATOR, 397091R91, order alternator-generator 1100883

1шт.

1

1100883

GENERATOR

ALTERNATOR-GENERATOR, 532176R91, for components see list of parts under details of alternator-generator

1шт.

1

87297246

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 Amp Alternator

1шт.

1

103804A1GV

ALTERNATOR

Value

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

221425R1

FAN

FAN, alternator-generator

1шт.

3

400131R1

PULLEY

PULLEY, alternator-generator

1шт.

4

1119513

VOLTAGE REGULATOR

REGULATOR, voltage, 336410R91, consists of (1) regulator 1119507, (1) cover 1958151, (2) screw 1962733, (1) package 1962629

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, whiz lock

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

5

405428R1

SPARE PART BRACKET, voltage regulator mounting

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, whiz lock

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER, 3/8 znd int-tooth lock

1шт.
