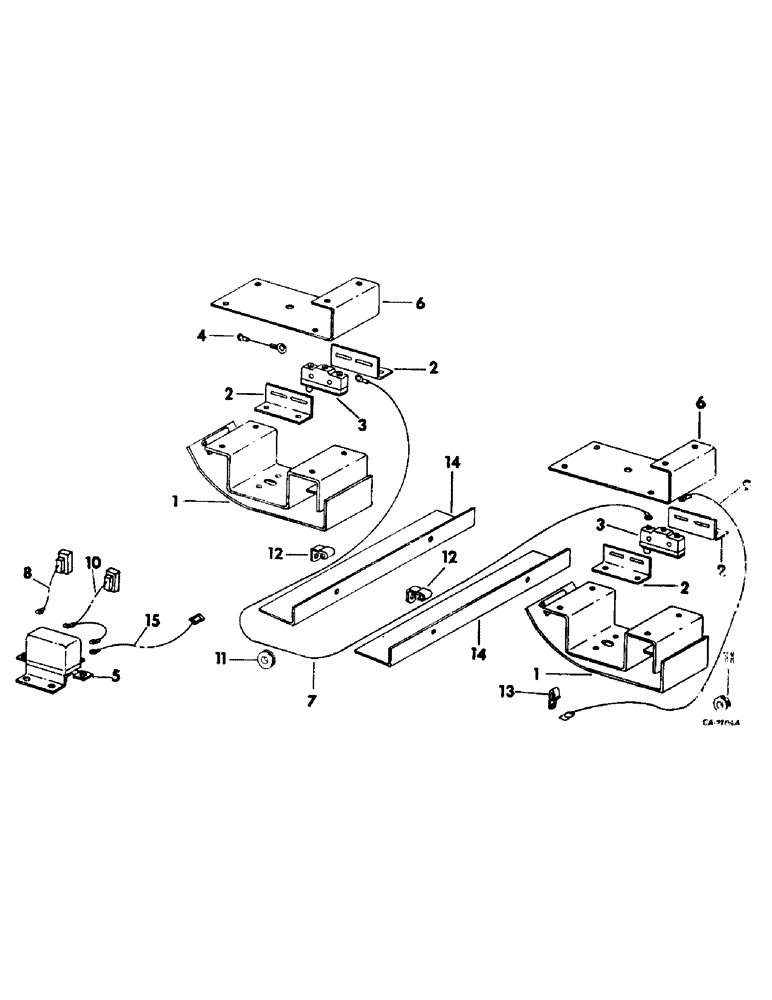

Запчасти Case IH 915 (G-17) - ELECTRICAL SYSTEM, STRAW RACK WARNING SYSTEM (06) - ELECTRICAL SYSTEMS

174955C91

STRAW RACK WARNING SYSTEM, parts accessories, consists of the following

1шт.

1

166220C92

BRACKET

ASSY, warning switch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

2

166225C2

SUPPORT

warning switch

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

8шт.

3

574649R91

SWITCH

micro

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan-hd

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

4

WIRE, micro switch ground, use 2.5 inches of 14 wire from 100-ft roll marked 995055R1, one terminal 54771R2 & one terminal 54772R2

1шт.

5

921926C1

SWITCH

RELAY, straw rack warning horn

1шт.

19302R1

NUT

no. 10 C-Z hex.

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z slt-pan hd

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 C-Z slt-pan hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, no. 10 C-Z med lock

2шт.

6

161704C1

SUPPORT, straw rack micro switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

7

174495C1

CABLE, front to rear micro switch

1шт.

8

174496C1

CABLE, Serial Range: relay-horn

1шт.

9

174497C1

CABLE

engine to micro switch

1шт.

10

174498C1

CABLE, relay to fuse panel

1шт.

11

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 rubber diagonal cut

2шт.

12

365584R1

CLIP

front to rear micro switch cable

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

13

366460R1

CABLE CLIP

CLIP, engine to micro switch cable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

14

173861C2

RETAINER, straw rack wire

2шт.

564791R1

SPRING NUT

1/4 C-Z speed

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

6шт.

15

174092C1

WIRE ASSY, relay to micro switch

1шт.
