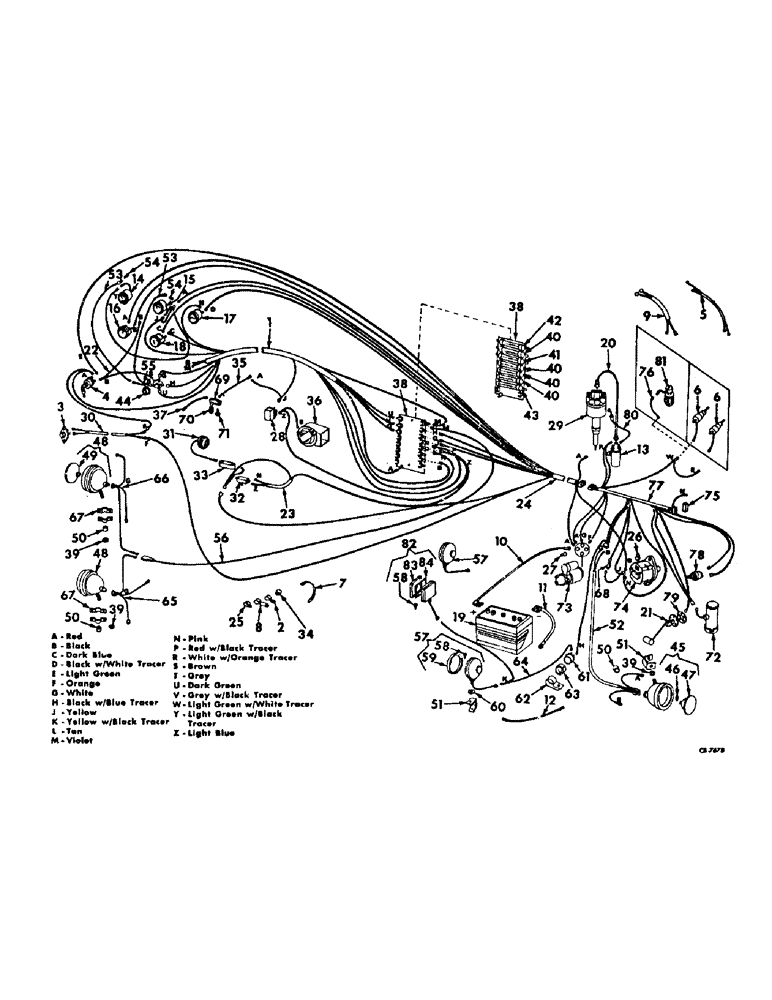

Запчасти Case IH 915 (G-08) - ELECTRICAL SYSTEM, WIRING DIAGRAM, GASOLINE AND LP GAS ENGINES, S/N 1250 AND ABOVE (06) - ELECTRICAL SYSTEMS

1

170526C1

HARNESS ASSY, main cable front, serial no. 1849 and below

1шт.

1

172921C1

HARNESS ASSY, main cable front, serial no. 1850 thru 2349

1шт.

1

174490C1

HARNESS ASSY, main cable front, serial no. 2350 and above

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

2

362127R1

CLIP

cable

1шт.

2

362667R1

CLIP

cable

1шт.

2

362126R1

CLIP

cable

1шт.

2

362123R1

CLIP

cable

1шт.

2

370383R1

CLIP

cable

1шт.

3

366317R93

SWITCH

ASSY, starting

1шт.

3

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 C-Z sq

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 C-Z pan-hd

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

4

164895C91

SWITCH

ASSY, ignition

1шт.

365502R1

NUT

13/16-20 hex.

1шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

5

170522C1

HARNESS ASSY, air cleaner 36 in.

1шт.

6

403534R2

VALVE

solenoid fuel shut off, for gasoline engine

2шт.

7

702093C1

CABLE TIE

STRAP, wiring tie

1шт.

8

363660R1

CLIP

cable twisted

1шт.

8

370820R1

CLIP

cable

1шт.

9

170521C1

HARNESS ASSY, fuel pump, 57 in.

1шт.

10

158475C91

CABLE ASSY, battery, 106 in.

1шт.

11

158476C91

CABLE

ASSY, battery ground, 66 in.

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

158477C91

CABLE

ASSY, engine ground, 18 in.

1шт.

13

403071R91

COIL AND CLAMP ASSY, ignition

1шт.

14

GAUGE ASSY, water temperature, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

15

GAUGE ASSY, oil pressure, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

16

GAUGE ASSY, ammeter, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

17

GAUGE ASSY, air cleaner restriction, serial no. 2349 and below, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

18

GAUGE ASSY, fuel, for gasoline engine, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

19

395587R1

BATTERY, 12 volt dry charged, prestolite 2429X

1шт.

20

403510R2

CABLE ASSY, distributor to coil high tension

1шт.

21

162018C91

GAUGE ASSY.

UNIT ASSY, fuel gauge sending, for gasoline engine

1шт.

168527C1

SCREW,Sl Pan Hd, #10 - 24 x 1/2", W/ Rbr Wshr, 90 Duro

no. 10 x 1/2 C-Z pan washer hd

4шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z SLT pan-hd

1шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

22

163807C91

CABLE ASSY, ammeter gauge, 16 in.

1шт.

23

170525C1

CABLE ASSY, brake warning light, serial no. 1849 and below

1шт.

23

172920C1

HARNESS ASSY, brake warning light, serial no. 1850 thru 2349

1шт.

23

174493C1

HARNESS ASSY, brake warning light, serial no. 2350 and above

1шт.

24

170518C1

HARNESS ASSY, main center, serial no. 2349 and below

1шт.

24

174492C1

HARNESS ASSY, main center, serial no. 2350 and above

1шт.

25

400505R1

CLAMP

CLIP, cable double

1шт.

25

366460R1

CABLE CLIP

CLIP, flasher to flasher light cable

2шт.

26

399470R1

BOOT

main center harness terminal

1шт.

27

364910R1

BOOT

battery terminal

1шт.

28

241120R91

RELAY

ASSY, warning, 2 used serial no. 1849 & below, 1 used serial no. 1850 & above

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

404944R91

DISTRIBUTOR ASSY, refer to eng-3 parts catalog, unit AJ, BJ or CJ for listing

1шт.

30

165667C91

HARNESS ASSY, starting switch, 24 in.

1шт.

31

166827C91

LIGHT

ASSY, warning

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

32

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

68107H

LOCK NUT

parking brake warning light

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436668

SCREW, no. 6 x 7/8 C-Z pan-hd

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

166817C1

WASHER

.281/.344 SLT x 2 x .06

1шт.

33

303236R91

INDICATOR LIGHT

FLASHER, warning light signal

1шт.

34

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

no. 5 plain rubber diagonal

1шт.

34

23406R1

GROMMET,3/16" ID x 7/16" x .125", Diag Cut

3/16 rubber diagonal

1шт.

34

115329R1

GROMMET

tailings elevator cable rubber

1шт.

34

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 diagonal cut

1шт.

34

117959

GROMMET,5/16" ID x .719" x .062"

rubber plain diagonal cut, for flasher to flasher light cable

1шт.

35

167411C1

CABLE ASSY, elevator clutch, 120 in., not for use w/monitor control

1шт.

36

166166R91

HORN

ASSY, elevator clutch warning

1шт.

37

CABLE ASSY, elevator ground, use 4 inches of 14 ga wire from 100 ft. roll marked 995055R1, one 54771R2 terminal and one 54775R2 terminal

1шт.

38

170523C3

PANEL

ASSY, fuse

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 C-Z pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

936476R1

SQ HOLE WASHER

lamp spacer, serial no. 1850 and above

1шт.

40

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

4шт.

41

9426333

FUSE,15 Amp, Type 3AG

cartridge type 15 amp

1шт.

42

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

1шт.

43

120144

FUSE, cartridge type 30 amp

1шт.

44

166380C92

SWITCH

ASSY, light

1шт.

45

387729R91

LIGHT

LAMP ASSY, tail, includes ref. nos. 46 and 47

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

46

455490

BULB,C-6, #1003, 12V, .94W

light

1шт.

47

371461R91

LENS

UNIT ASSY, sealed beam

1шт.

48

391005R91

HEADLIGHT

LAMP ASSY, head, includes ref. no. 49

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

49

371443R91

LAMP BASE

UNIT ASSY, sealed beam

2шт.

50

49069D

SPACER

lamp, serial no. 1849 and below

3шт.

51

561915R1

BRACKET

lamp mounting, 2 for serial no. 1777 and below, 3 for serial no. 1778 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

52

163815C92

HARNESS ASSY, tail light, 177 in.

1шт.

53

372546R91

CABLE

SOCKET ASSY, instrument light

5шт.

54

127934

BELT, TRANSMISSION

INSTRUMENT LIGHT

5шт.

55

165668C91

CABLE ASSY, instrument light

1шт.

56

170519C1

CABLE ASSY, head light, 60 in.

1шт.

57

394129R91

LIGHT

LAMP ASSY, flasher, round removable lens, includes ref. nos. 58 & 59

1шт.

57

675389C1

GASKET

LIGHT ASSY, flasher, round lens not serviced on this light, includes ref. no. 58

2шт.

120371

NUT,1/2"-20, G5

2шт.

58

9417866

BULB,C6, #1156, 12.8V

no. 1156 flasher

1шт.

59

396585R1

LENS

warning light, amber

1шт.

59

397442R1

LENS, warning light, red, for use w/394129R91 ref 57

1шт.

60

394262R1

WASHER

flasher lamp

2шт.

61

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

62

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

63

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

64

165670C91

CABLE ASSY, flasher to flasher light, 108 in., serial no. 1849 and below

1шт.

64

173107C1

CABLE ASSY, flasher to flasher light, 103 inches & 74 inches, serial no. 1850 and above

1шт.

65

167033C1

CABLE ASSY, head light rail LH, 44 in.

1шт.

66

167034C1

CABLE ASSY, head light rail RH, 80 in.

1шт.

67

167032C1

CLAMP, head light rail

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

68

548239R1

DIODE

ASSY, serial no. 2350 and above

1шт.

69

574649R91

SWITCH

ASSY, elev slip clutch micro, not for use w/monitor control

1шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 C-Z pan-hd

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga C-Z

2шт.

70

M296

SPRING

elevator micro switch

1шт.

71

175806C1

BOLT ASSY, elevator slip clutch micro switch

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

72

170351C1

PUMP

ASSY, fuel, for gasoline engine

1шт.

73

1108344

MOTOR ASSY, cranking, 396523R92, refer to cranking motor unit for listing

1шт.

74

1100883

GENERATOR

ALTERNATOR, 532176R91, refer to alternator generator unit for listing

1шт.

75

1119513

VOLTAGE REGULATOR

REGULATOR, voltage, 336410R91, serial no. 2349 and below, refer to alternator generator and voltage regulator unit for listing

1шт.

76

527378R1

CABLE ASSY, breakaway conn socket, for LP gas engine

1шт.

77

532392R1

HARNESS ASSY, main cable, serial no. 2349 and below

1шт.

77

548655R1

HARNESS

ASSY, main cable, serial no. 2350 and above

1шт.

78

389682R91

SWITCH

electric air cleaner

1шт.

79

168515C1

GASKET,3.05mm Thk

fuel gauge sending unit, for gasoline engine

1шт.

80

274747R91

CABLE ASSY, distributor

1шт.

81

243698R91

STRAINER ASSY, LP gas fuel, for LP gas engine

1шт.

82

536679R91

LIGHT

ASSY, flasher, includes ref. nos. 58, 83 & 84

2шт.

120371

NUT,1/2"-20, G5

2шт.

83

537011R1

LENS

warning light red, square lens

4шт.

83

537012R1

LENS

warning light amber, square lens

4шт.

84

537010R1

GASKET

warning light, square lens

2шт.
