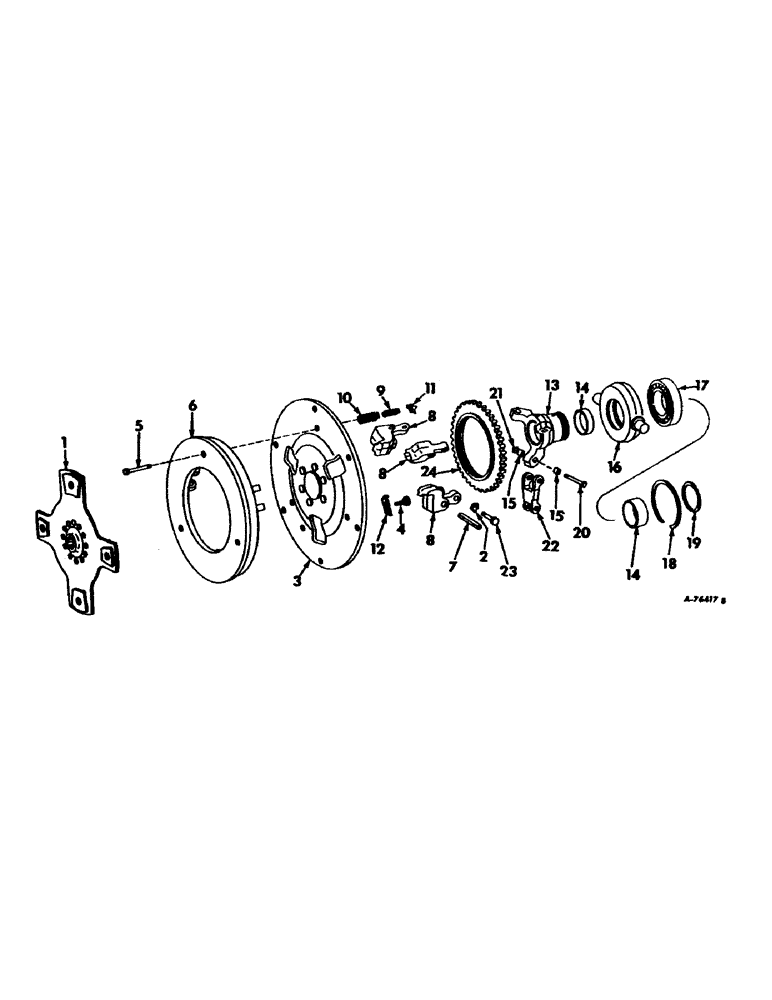

Запчасти Case IH 915 (B-12) - POWER TRAIN, SEPARATOR DRIVE CLUTCH (03) - POWER TRAIN

167968C93

COVER ASSY

includes ref. nos. 2 thru 24

24шт.

1

167967C91

CLUTCH DISC

MEMBER ASSY, clutch driven

1шт.

115323

RIVET, 5/16 x 7/16 sm-flat-hd

12шт.

2

175847C1

CIRCLIP

RING, retaining

3шт.

3

168070C91

PLATE, THRUST

PLATE ASSY, back, includes REF 4

1шт.

4

303242R1

SCREW

adj lock

1шт.

5

374001R1

STUD

return

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

3шт.

6

168117C1

PLATE ASSY.

PLATE, pressure

1шт.

7

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

3шт.

8

388952R1

LEVER

release

3шт.

9

374002R1

SPRING

return inner

3шт.

10

382142R1

SPRING

return outer

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

3шт.

11

267689R1

LOCK WASHER

X

3шт.

12

377938R1

STOP LOCK

LOCK, adjusting

1шт.

120369

NUT,3/8"-24, G5

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13

168066C91

HOUSING

SLEEVE AND BUSHING ASSY, includes ref nos 14 and 15

1шт.

14

168067C1

BUSHING

split

2шт.

15

168068C1

BUSHING

solid

6шт.

16

168065C93

STOP

CARRIER ASSY, bearing, includes ref nos 17 and 18

1шт.

17

175244C91

BALL BEARING,2.3622" ID x 3.7402" OD x 0.7087"

BEARING

1шт.

18

304780R1

RING, SNAP

RING, internal snap

1шт.

19

29780D

RING

external snap

1шт.

20

168069C3

PIN

link long

3шт.

21

175847C1

CIRCLIP

RING, retaining

3шт.

22

374003R1

LINK

connecting

3шт.

23

168071C3

PIN

link short

3шт.

169263C1

WASHER

link pin

6шт.

24

RING, adjusting, order cover assy, 167968C

1шт.
