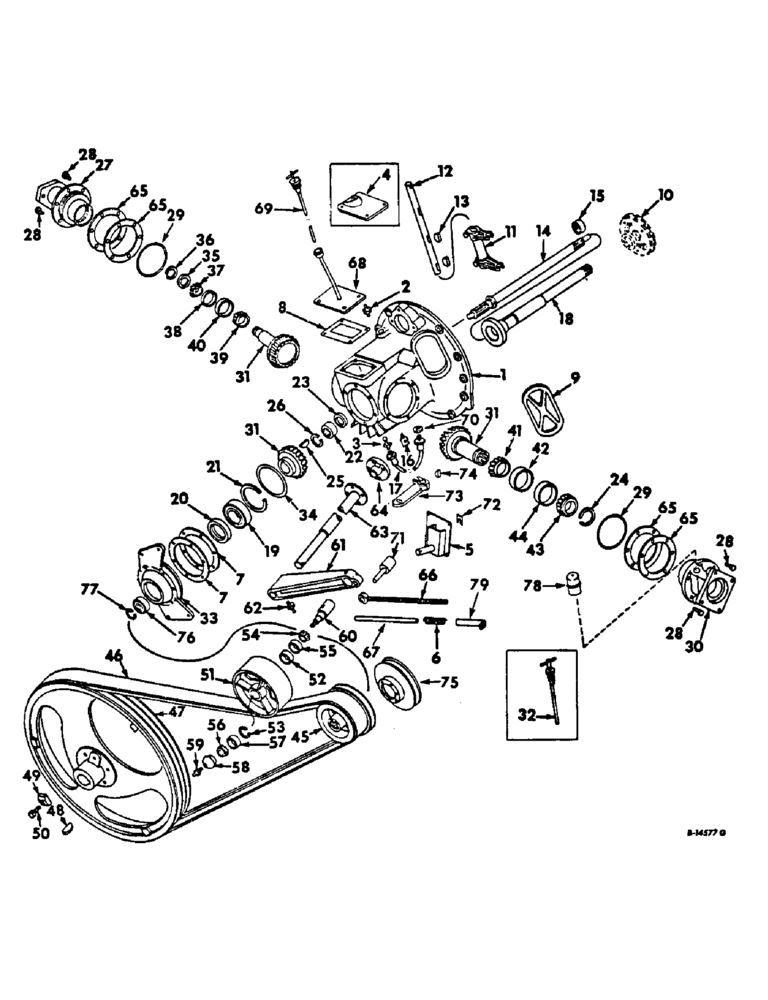

Запчасти Case IH 915 (B-09) - POWER TRAIN, SEPARATOR DRIVE (03) - POWER TRAIN

1

160370C1

HOUSING, separator drive

1шт.

211216R1

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2 x 4 hex-hd

1шт.

173243C1

PLUG

1/2-14 auto hex-soc-hd

1шт.

20960R1

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto sq-hd pipe

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex hd cap, not for diesel engine

8шт.

23566R1

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

SCREW, 1/2 x 3-3/4 znd hex-hd cap, not for diesel engine

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg str lub

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

4

158200C1

COVER

separator drive housing inspection, serial no. 1903 and below

1шт.

23910R1

BOLT

SCREW, 5/16 x 1 znp hex-hd cap

4шт.

5

170353C1

BRACKET

ASSY, idler pivot arm, serial no. 1250 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

PIN, 1/4 x 1-3/4 C-Z cot.

1шт.

22050R1

WASHER

1.281 x 2.75 x .06

1шт.

6

173863C1

SPRING

separator drive belt tightener pulley draw bolt

1шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga C-Z

1шт.

7

166065C91

PACKAGE

pump shft housing shim service

1шт.

8

158199C1

GASKET

separator drive housing inspection cover

1шт.

9

158255C1

PLUG

separator drive housing rubber

1шт.

10

CLUTCH ASSY, separator, refer to separator clutch for listing

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

11

266664R91

CLEVIS COUPLING

YOKE ASSY, separator clutch

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

12

158191C1

SHAFT

SEPARATOR CLUTCH PIVOT

1шт.

13

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

14

158186C2

SHAFT

separator drive

1шт.

543386R1

LOCK NUT,7/8"-14, G5

NUT, 7/8-14 C-Z lock

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

15

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

separator drive shaft pilot

1шт.

15

524598R91GV

BEARING

Value, Ball Bearing

1шт.

16

173032C1

CLIP, clutch pivot shaft lube hose anchor

1шт.

17

937778R91

HOSE

Clutch Pivot Shaft Lube 17 inches, Serial No. 2350 and Above

1шт.

18

158185C2

SHAFT

pump drive

1шт.

19

BEARING, pump drive shaft left, not serviced separately order ref no. 33, 173218C91 housing assy

1шт.

20

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

pump drive shaft left oil

1шт.

21

23484R1

RING

pump drive shaft left snap

1шт.

22

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

BEARING, pump drive shaft right

1шт.

23

173559C91

SEAL

pump drive shaft right oil

1шт.

24

644771R1

SNAP RING,#225, Ext

Ring, Snap, , pump drive shaft rear outer #225, Ext

1шт.

25

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff

1шт.

26

23483R1

SNAP RING,#200, Ext

Ring, Snap, , pump drive gear #200, Ext

1шт.

27

160176C1

HOUSING, pump adapter front, not hydraulic reel drive

1шт.

27

160534C1

HOUSING, pump adapter front, for hydraulic reel drive

1шт.

28

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap type 8

12шт.

366862C1

LOCK WASHER,3/8"

3/8"

12шт.

29

25620R1

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

5-1/8 x 5-3/8 x 18, 1 used w/hydraulic reel drive, 2 used w/o hydraulic reel drive

1шт.

30

160194C11

HOUSING ASSY, pump adapter rear

1шт.

31

165213C91

GEARS, set of separator drive, for V-8 engine w/hydraulic reel drive

1шт.

31

165214C91

GEARS, set of separator drive, for V-8 engine w/mechanical reel drive

1шт.

31

165216C91

GEAR

S, set of separator drive, for diesel engine w/mechanical reel drive

1шт.

31

165215C91

GEARS, set of separator drive, for diesel engine w/ hydraulic reel drive

1шт.

32

170420C3

GAUGE ASSY, oil level, serial no. 1903 and below

1шт.

33

173218C91

HOUSING ASSY.

HOUSING, pump shaft, includes ref. nos. 19, 20 & 21

1шт.

879083R1

BOLT

SCREW, 3/8 x 1 C-Z hex-hd cap type 4

6шт.

34

25621R1

O-RING,-255, Cl 7, 5.609" ID x .139" Thk

5-5/8 x 5-7/8 x 1/8

1шт.

35

158206C1

WASHER

pump shaft front outer brg back up, not hydraulic reel

1шт.

35

160191C2

WASHER

pump shaft front outer brg back up, for hydraulic reel

1шт.

36

152450R1

SNAP RING,#125, Ext

Ring, Snap, , pump shaft front outer brg, not hydraulic reel drive #125, Ext

1шт.

36

69339R1

SNAP RING,#150, Ext

Ring, Snap, , pump shaft front outer brg, for hydraulic reel drive #150, Ext

1шт.

37

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, pump shaft front outer brg, not hydraulic reel drive

1шт.

37

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE, pump shaft front outer brg, for hydraulic reel drive

1шт.

38

651817R1

BEARING CUP

CUP, pump shaft front outer brg, not hydraulic reel drive

1шт.

38

478793R1

BEARING CUP

CUP, pump shaft front outer brg, for hydraulic reel drive

1шт.

39

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, pump shaft front inner brg

1шт.

40

663558R1

BEARING CUP

CUP, pump shaft front inner brg

1шт.

41

158238C91

ROLLER BEARING,2.2655" ID x 3.876" OD x 0.8268"

CONE, pump shaft rear inner brg

1шт.

42

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, pump shaft rear inner brg

1шт.

43

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

CONE, pump shaft rear outer brg

1шт.

44

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, pump shaft rear outer brg

1шт.

45

166600C2

PULLEY, separator drive, 8.6 in. BD, for gasoline or LP gas engine

1шт.

45

168666C2

PULLEY

separator drive, 9.8 IN. OD, for diesel engine

1шт.

46

166598C1

BELT

Separator Drive, for Gasoline or LP Gas Engine

1шт.

46

168665C1

BELT

separator drive, for diesel engine

1шт.

47

166599C1

PULLEY, separator driven 31.9 in OD

1шт.

48

218216

WOODRUFF KEY,#V, 1/2" x 2 3/4", HT

KEY, 1/2 x 2-3/4 Woodruff

1шт.

49

166876C1

WEIGHT

separator driven pulley balance

1шт.

50

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, 1/4 x 1-1/2 hex-hd self tap balance

1шт.

51

174756C1

PULLEY

separator drive belt tightener, 8 in. OD, serial no. 4277 and above

1шт.

52

564403R91

SEAL

separator drive belt tightener pulley oil, serial no. 4276 and below

1шт.

53

564405R1

RING, SNAP

RING, separator drive belt tightener pulley snap, serial no. 4276 and below

1шт.

54

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, separator drive belt tightener pulley inner cone, serial no. 4276 and below

1шт.

55

651817R1

BEARING CUP

BEARING ASSY, separator drive belt tightener pulley inner cup, serial no. 4276 and below

1шт.

56

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, separator drive belt tightener pulley outer cone, serial no. 4276 and below

1шт.

56

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

57

651814R1

BEARING CUP

BEARING ASSY, separator drive belt tightener pulley outer cup, serial no. 4276 and below

1шт.

58

589951R1

PLUG

CAP, separator drive belt tightener pulley, serial no. 4276 and below

1шт.

59

19588R1

FITTING

1/4-28 str lub

1шт.

60

158216C1

SHAFT, separator drive belt tightener pulley, serial no. 4276 and below

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 C-Z slt hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

61

179446C1

LEVER

sep. dr. belt tightener pulley

1шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

1шт.

62

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

63

160415C91

SHAFT ASSY, separator drive belt tightener pulley lever, serial no. 1249 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

PIN, 1/4 x 1-3/4 cot. C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga C-Z

6шт.

64

160409C1

SUPPORT, separator drive belt tightener pulley lever shaft, serial no. 1249 and below

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z SQ NK CRG

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

65

166066C91

SHIM

PACKAGE, pump adapter housing shim serv

1шт.

66

158215C1

BOLT

separator drive belt tightener pulley draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 C-Z std-hd dld

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

1шт.

67

158217C1

TUBE

separator drive belt tightener pulley draw bolt

1шт.

68

174472C91

COVER ASSY, separator drive, serial no. 1904 and above

1шт.

665447R1

BOLT,Hex, 5/16" - 18 x 3/4", Pellet

SCREW, 5/16 x 3/4 znp nylock hex-hd

4шт.

69

173872C1

GAUGE

ASSY, oil level, serial no. 1904 and above

1шт.

70

581873R1

TUBE NUT,4.8 mm Length

clutch pivot shaft lube hose

1шт.

71

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

sep. dr. tightener lever, serial no. 4277 and above

1шт.

72

589713R1

SHIM

separator drive idler pivot arm bracket

8шт.

73

164523C1

ARM

separator clutch control

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

74

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

75

173217C91

PULLEY

ASSY, unloader jackshaft drive 9 in. OD, includes ref. nos. 76 & 77

1шт.

454873

BOLT

SCREW, 5/16 x 1-3/4 C-Z hex-hd cap

6шт.

366861C1

LOCK WASHER

5/16 C-Z rib lock

6шт.

76

BEARING, separator shaft left, not serviced separately order ref no. 75, pulley assy 173217C91

1шт.

77

659380R1

SNAP RING,#137, Ext

Ring, Snap, , separator drive shaft #137, Ext

1шт.

78

367677R91

BREATHER

ASSY, separator drive housing oil, serial no. 1904 and above

1шт.

79

175227C1

GAUGE, separator drive belt tightener pulley draw bolt spring check

1шт.

173009C91

HOUSING ASSY, separator drive PTO, for mechanical reel drive w/gas or LP gas engine, includes ref. nos. 1, 2, 7, 8, 9, 11, 12, 13, 14, 18 thru 31, 33 thru 45, 65, 68, 69, & 73 thru 78

1шт.

173875C91

HOUSING ASSY, separate drive PTO, for mechanical reel drive w/diesel engine, includes ref. nos. 1, 2, 7, 8, 9, 11, 12, 13, 14, 18 thru 31, 33 thru 45, 65, 68, 69, & 73 thru 78

1шт.

173012C91

HOUSING ASSY, separator drive PTO, for hyd reel drive w/gas or LP gas engine, includes ref. nos. 1, 2, 7, 8, 9, 11, 12, 13, 14, 18 thru 31, 33 thru 45, 65, 68, 69, 71, and 73 thru 78

1шт.

173876C91

HOUSING ASSY, separator drive PTO, for hyd reel drive w/diesel engine, includes ref. nos. 1, 2, 7, 8, 9, 11, 12, 13, 14, 18 thru 31, 33 thru 45, 65, 68, 69, 71, and 73 thru 78

1шт.
