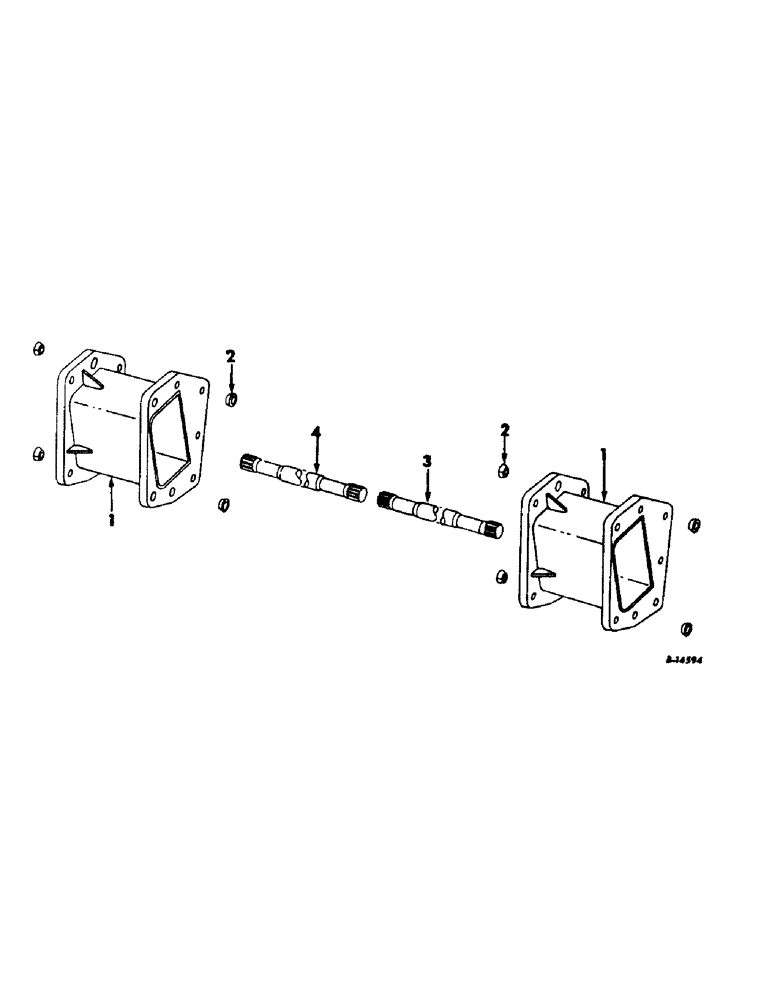

Запчасти Case IH 915 (B-08) - POWER TRAIN, MAIN AXLE EXTENSION (03) - POWER TRAIN

1

162475C91

EXTENSION ASSY, main axle

2шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3/4 x 2-1/4 C-Z hex-hd type 4

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 C-Z hex-hd type 4

10шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

3/4 x 2-1/2 znp hex-hd type 4

14шт.

22049R1

NUT,3/4"-10, G8

3/4 C-Z hex type 4

14шт.

138561

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 C-Z int-tooth lock

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

28шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

4шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL, main axle ext end flange

8шт.

3

162467C2

SHAFT, LH final drive

1шт.

4

162468C2

SHAFT, RH final drive

1шт.
