(E-23) - FUEL SYSTEM, FUEL PUMP, FOR DT-414 DIESEL ENGINES, SERIAL NO. 2350 AND ABOVE

Запчасти Case IH 915 (E-23) - FUEL SYSTEM, FUEL PUMP, FOR DT-414 DIESEL ENGINES, SERIAL NO. 2350 AND ABOVE (02) - FUEL SYSTEM

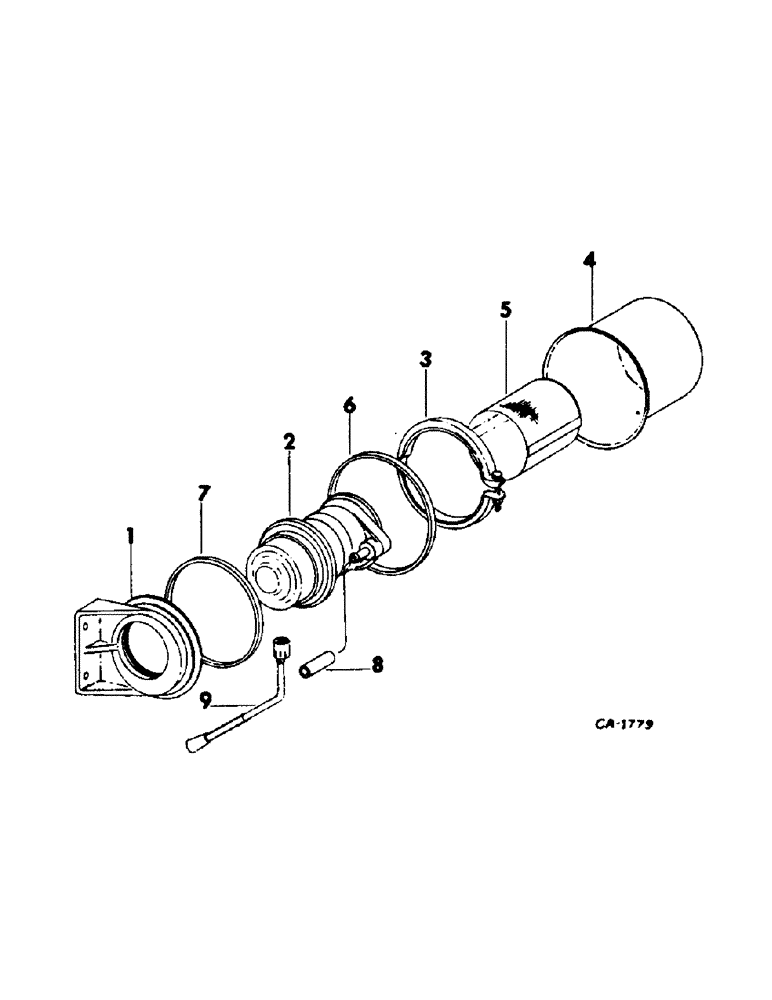

Схема запчастей Case IH 915 - (E-23) - FUEL SYSTEM, FUEL PUMP, FOR DT-414 DIESEL ENGINES, SERIAL NO. 2350 AND ABOVE (02) - FUEL SYSTEM
6
9
2
8
7
3
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

174362C91

FUEL PUMP

PUMP ASSY, fuel, consists of the following

1шт.

1

174480C1

FLANGE, mounting

1шт.

2

174475C91

PUMP, HYDRAULIC

PUMP ASSY

1шт.

3

174474C1

CLAMP

V-BAND

1шт.

4

174479C1

HALF SHAFT

CAN

1шт.

5

174473C1

FILTER SCREEN

SCREEN

1шт.

6

174476C1

GASKET

can

1шт.

7

174477C1

GASKET

1шт.

8

487843R1

TUBE, fuel discharge

1шт.

9

174478C1

CABLE ASSY.

CABLE ASSY, electric

1шт.
