(E-10[1]) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER

Запчасти Case IH 915 (E-10[1]) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM

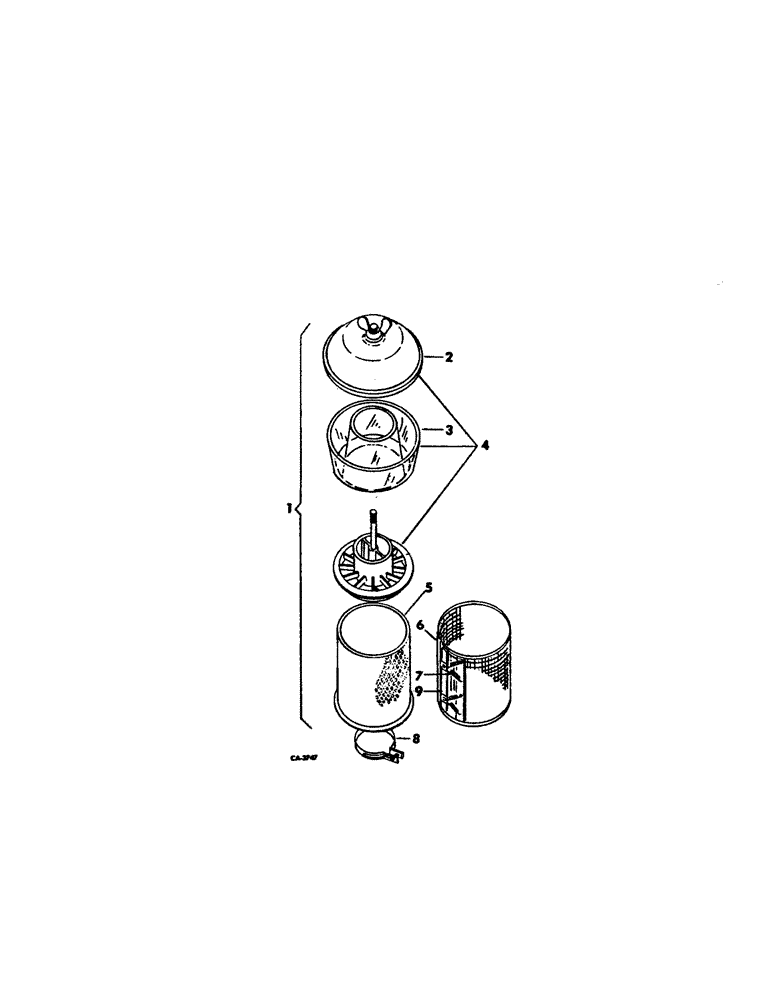

Схема запчастей Case IH 915 - (E-10[1]) - FUEL SYSTEM, PRE-CLEANER, PRE-SCREENER (02) - FUEL SYSTEM
5
2
7
1
9
4
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

530160R92

PRE-CLEANER, PRE-SCREENER

1шт.

2

COVER ASSY, pre-cleaner, (not serviced separately) order ref. no. 4

1шт.

3

277377R1

FILTER BOWL

BOWL

1шт.

4

321261R91

PRECLEANER

PRE-CLEANER ASSY

1шт.

5

534801R1

BODY

ASSY

1шт.

6

539985R91

SCREEN

ASSY

1шт.

7

353639R1

VALVE SPRING

SPRING

4шт.

8

875912R91

CLAMP

ASSY

1шт.

9

353758R1

CLIP

2шт.
