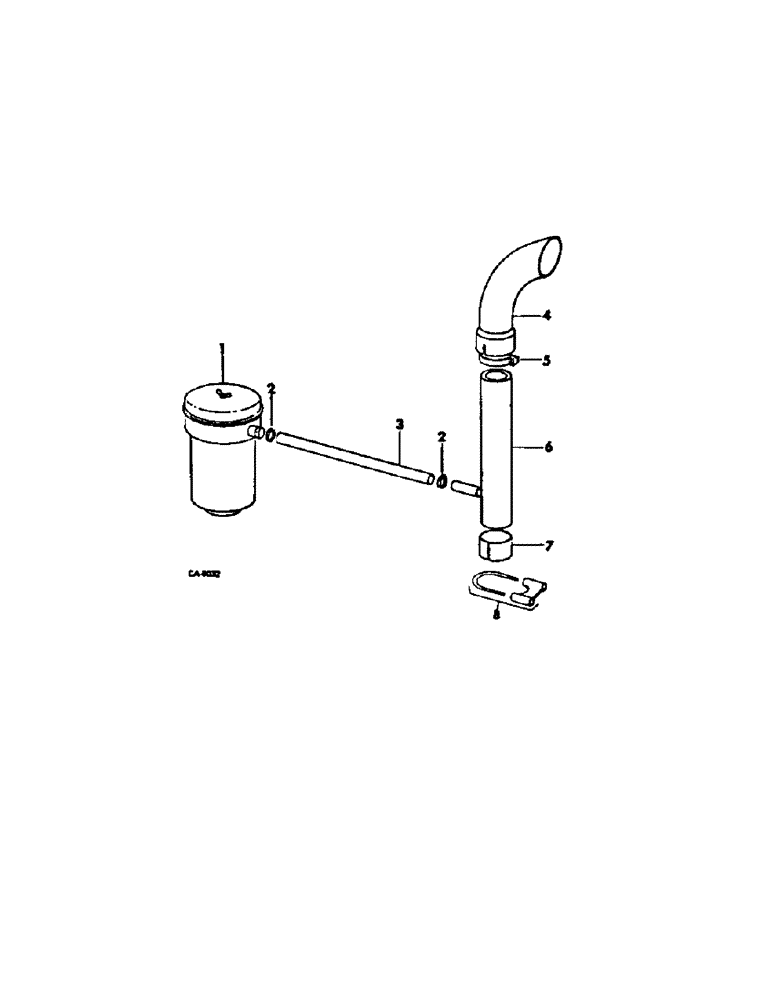

Запчасти Case IH 915 (E-09) - FUEL SYSTEM, ASPIRATED PRE-CLEANER, PRE-SCREENER, COMBINES W/ DT-407 ENGINES, S/N 2349 AND BELOW (02) - FUEL SYSTEM

533258R91

PARTS ACCESSORY, aspirated pre-cleaner, pre-screener

1шт.

1

533100R91

PRESCREENER

PRE-CLEANER, PRE-SCREENER, for components see list of parts under details of pre-cleaner, pre-screener

1шт.

2

3111649C1

CLAMP, ejector hose

2шт.

3

533101R1

HOSE

exhaust ejector

1шт.

4

549918R1

PIPE

exhaust

1шт.

5

58937C1

CLAMP

exhuast pipe

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

533183R1

MUFFLER

EJECTOR, exhaust

1шт.

7

533184R1

SLEEVE

exhaust ejector

1шт.

8

61156C91

PACKAGE

muffler clamp

1шт.

535993R1

NUT

muffler clamp

2шт.
