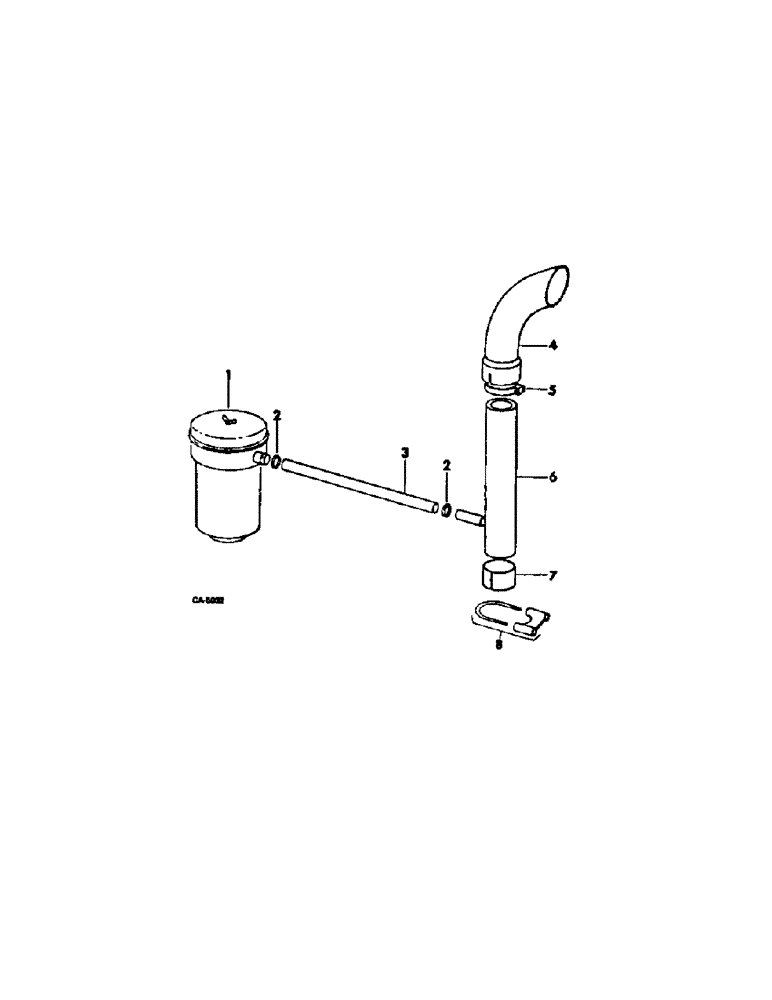

Запчасти Case IH 915 (E-09[1]) - FUEL SYS., ASPIRATED PRE-CLEANER, PRE-SCREENER, COMBINES W/DT-414 ENGINES, SERIAL NO. 2350 AND ABOVE (02) - FUEL SYSTEM

549917R91

PARTS ACCESSORY, aspirated pre-cleaner, pre-screener

1шт.

1

533100R91

PRESCREENER

PRE-CLEANER, PRE-SCREENER, for components see list of parts under details of pre-cleaner, pre-screener

1шт.

2

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

Switch Mounting, ejector hose

2шт.

3

533101R1

HOSE

exhaust ejector

1шт.

4

549918R1

PIPE

exhaust

1шт.

5

650985C1

CLAMP

exhaust pipe

1шт.

NLS

NO LONGER SERVICED

3/8-16 znd hex.

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

533183R1

MUFFLER

EJECTOR, exhaust

1шт.

7

533184R1

SLEEVE

exhaust ejector

1шт.

8

(Not used in this application)

1шт.
