(E-08) - FUEL SYSTEM, AIR CLEANER ASSEMBLY, DONALSON

Запчасти Case IH 915 (E-08) - FUEL SYSTEM, AIR CLEANER ASSEMBLY, DONALSON (02) - FUEL SYSTEM

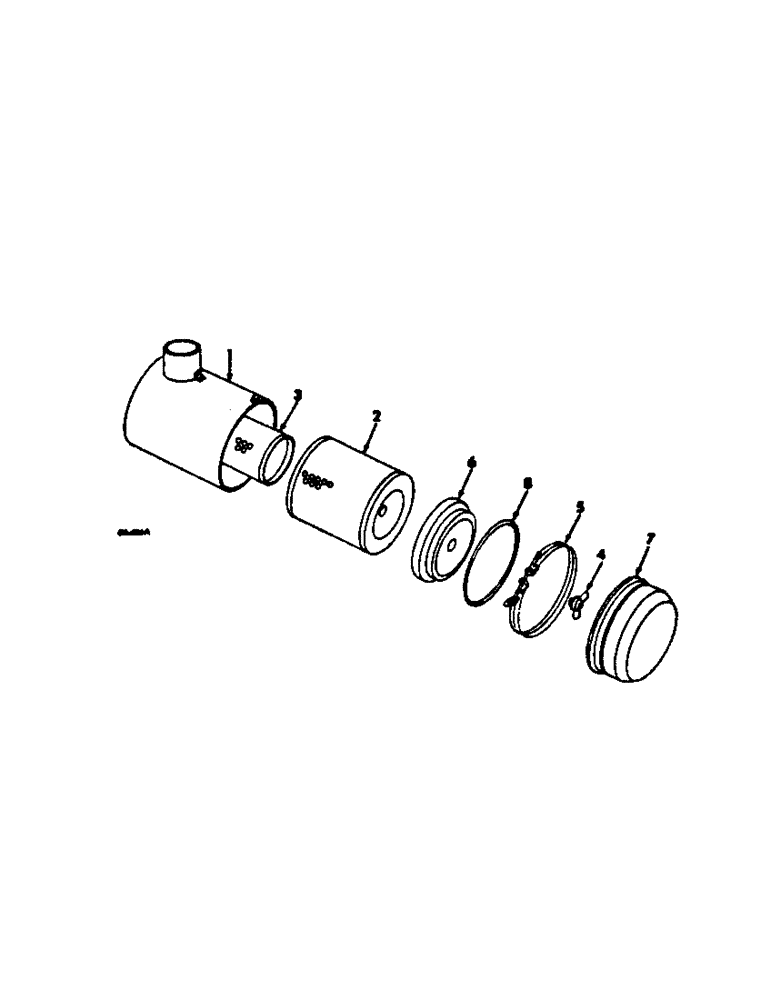

Схема запчастей Case IH 915 - (E-08) - FUEL SYSTEM, AIR CLEANER ASSEMBLY, DONALSON (02) - FUEL SYSTEM
7
2
3
4
1
5
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

530751R92

CLEANER ASSY.

CLEANER ASSY, dry type, Donalson, includes ref. nos. 1 thru 8

1шт.

1

(Not serviced separately) order air cleaner assy 530751R92

1шт.

2

529821R1

ELEMENT

ASSY

1шт.

3

530270R2

AIR CLEANER

ELEMENT ASSY, safety

1шт.

4

412078C1

WING NUT

NUT ASSY, replaces 381342R92

1шт.

5

891128R91

CLAMP

ASSY

1шт.

6

383610C1

BAFFLE

ASSY

1шт.

7

529820R1

CUP

ASSY

1шт.

8

225067R1

O-RING,10.62" ID x 0.27" Width

1шт.
