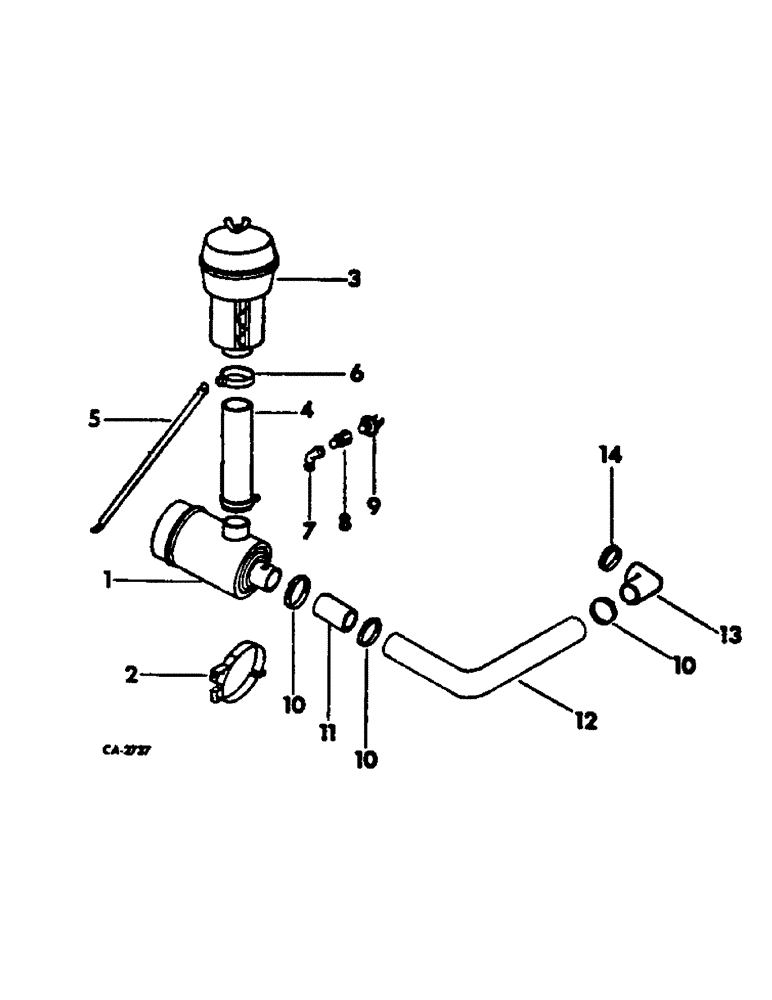

Запчасти Case IH 915 (E-07) - FUEL SYSTEM, AIR CLEANER AND CONNECTIONS, COMBINES W/DT-414 ENGINES, SER. NO. 2350 AND ABOVE (02) - FUEL SYSTEM

1

530751R92

CLEANER ASSY.

CLEANER ASSY, dry type, Donalson, optional w/528505R93

1шт.

1

528505R93

FILTER CARTRIDGE

CLEANER ASSY, dry type, air maze, optional w/530751R92, for components see list of parts under details of air cleaner assy

1шт.

2

702070C91

BAND ASSY, air cleaner mounting, Donalson, optional w/259922C91

2шт.

2

259922C91

BAND

ASSY, air cleaner mounting, air maze, optional w/702070C91

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

446363

WASHER,5/16"

3/8 x 7/8 x .064 znd

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

3

530160R92

PRE-CLEANER PRE-SCREENER, for components see list of parts under details of pre-cleaner pre-screener

1шт.

4

533088R1

PIPE, pre-cleaner pre-screener

1шт.

5

530195R1

BRACE, pre-cleaner

1шт.

6

653239C1

CLAMP

pre-cleaner pipe

1шт.

271501

SOCKET

NUT, 7/16 hex.

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

120401

PLATE

ELBOW, 1/8 90 deg street, optional w/127960

1шт.

7

127960

ELBOW

1/8 90 deg street, optional w/120401

1шт.

8

389908R91

ADAPTER

ASSY, vacuum switch, used w/air maze air cleaner

1шт.

9

538724R1

SWITCH

ASSY, electric air

1шт.

10

397270R1

HOSE CLAMP,#72, 4.06/5.00 Type F Worm, W/liner

CLAMP, air cleaner hose

3шт.

11

548219R1

INTAKE AIR HOSE,4.00" ID x 4.00"

HOSE, air cleaner

1шт.

12

548220R1

PIPE ASSY, air cleaner

1шт.

13

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW, inlet

1шт.

14

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, turbo inlet

1шт.
