Запчасти Case IH 915 (20) - PULLEY AND BELT DIAGRAM, RIGHT SIDE (00) - GENERAL

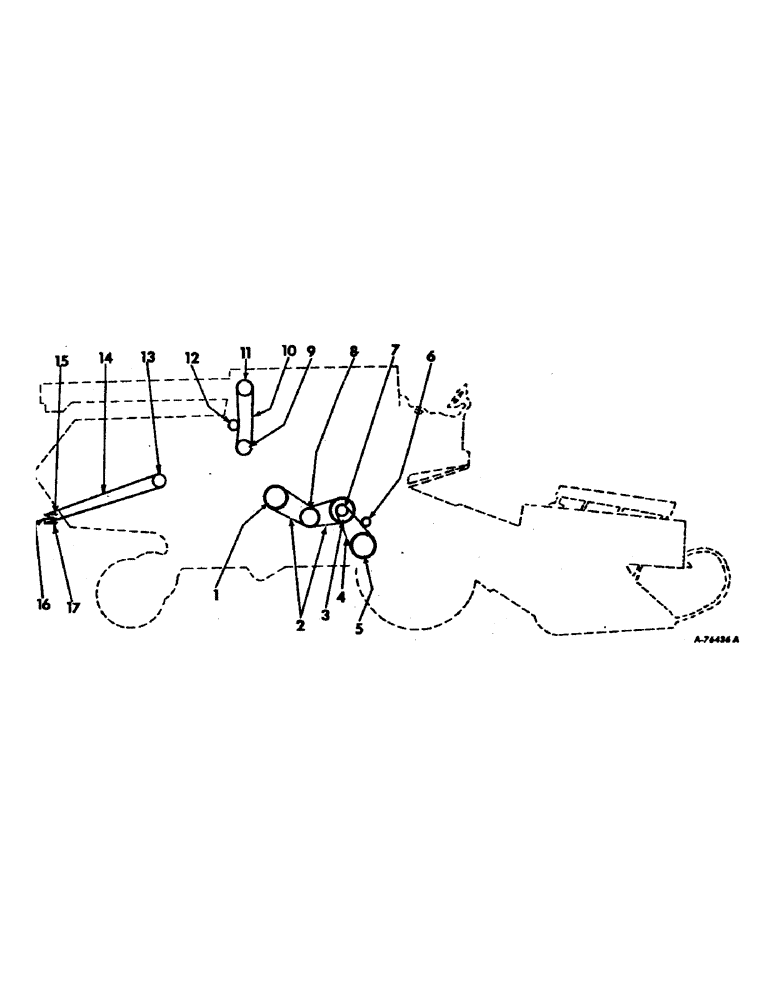

Схема запчастей Case IH 915 - (20) - PULLEY AND BELT DIAGRAM, RIGHT SIDE (00) - GENERAL
14
7
10
16
3
8
2
9
6
11
13
1
17
12
15
5
4

Артикул

Название

Примечание

Количество

1

PULLEY, fan driven, see section R under separator fan drive

1шт.

2

BELTS, pair fan drive, see section R under separator fan drive

1шт.

3

PULLEY, fan drive, see section R under separator fan drive

1шт.

4

BELT, shaker shaft drive, see section R under shaker shaft drive

1шт.

5

PULLEY, shaker shaft drive, see section R under shaker shaft drive

1шт.

6

PULLEY, shaker shaft drive belt tightener, see section R under shaker shaft drive

1шт.

7

PULLEY, shaker shaft drive, see section R under shaker shaft drive

1шт.

8

PULLEY, fan jackshaft outer, see section R under separator fan drive

1шт.

9

PULLEY, rotary air screen drive, see secton A under radiator rotary air screen and drive

1шт.

10

BELT, rotary air screen drive, see section A under radiator rotary air screen and drive

1шт.

11

PULLEY, rotary air screen driven, see section A under radiator rotary air screen and drive

1шт.

12

PULLEY, rotary air screen drive tightener, see section A under radiator rotary air screen and drive

1шт.

13

PULLEY ASSY, straw spreader drive, refer to section R under straw spreader

1шт.

14

BELT, straw spreader drive, refer to section R under straw spreader

1шт.

15

PULLEY ASSY, straw spreader idler, refer to section R under straw spreader

1шт.

16

PULLEY ASSY, straw spreader driven, refer to section R under straw spreader

1шт.

17

PULLEY ASSY, straw spreader tightener, refer to section R under straw spreader

1шт.

Выбрано товаров: 17
