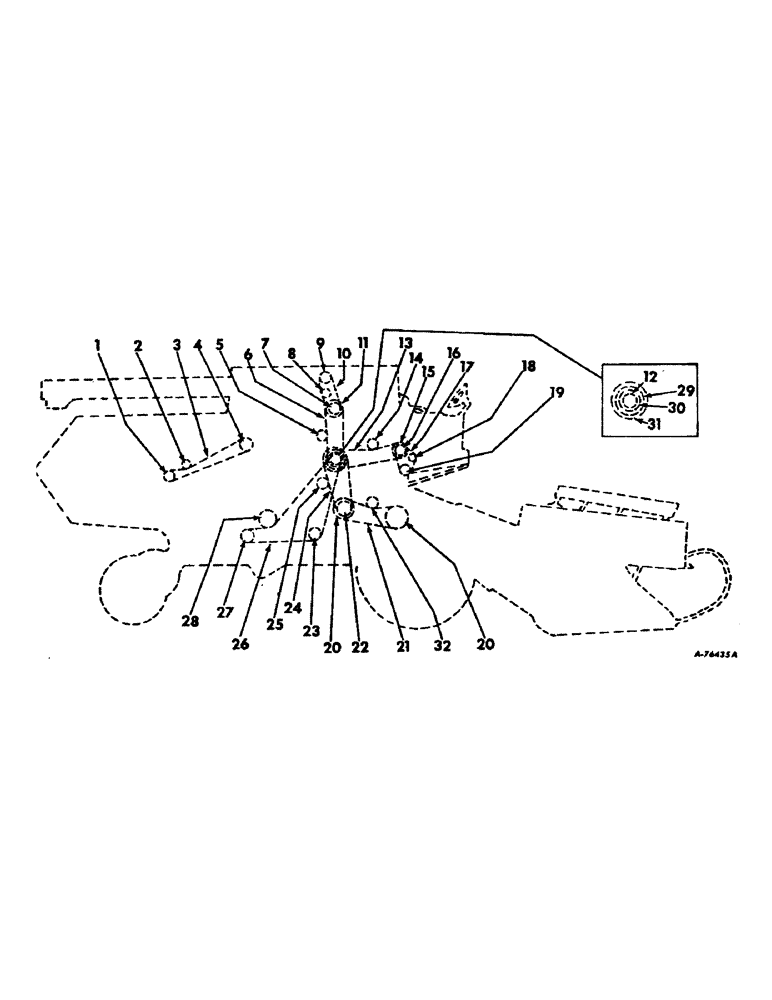

Запчасти Case IH 915 (18) - SPROCKET AND CHAIN DIAGRAM, RIGHT SIDE (00) - GENERAL

1

SPROCKET, rotary air screen drive, section A under radiator rotary air screen and drive

1шт.

2

SPROCKET, rotary air screen drive tightener, see section A under radiator rotary air screen & drive

1шт.

3

CHAIN, rotary air screen drive, see section A under radiator rotary air screen and drive

1шт.

4

SPROCKET, rotary air screen driven, see secton A under radiator rotary air screen and drive

1шт.

5

SPROCKET, grain tank distributor auger drive chain tightener, see section T under grain tank distributor auger and drive

1шт.

6

CHAIN ASSY, grain tank leveling auger, see section T under grain tank distributor auger and drive

1шт.

7

SPROCKET, grain elevator drive, see section S under grain elevator drive

1шт.

8

SPROCKET, grain elevator drive chain tightener, see section S under grain elevator drive

1шт.

9

SPROCKET, grain elevator driven, see section S under grain elevator drive

1шт.

10

CHAIN ASSY, grain elevator drive, see section S under grain elevator and drive

1шт.

11

SPROCKET, grain tank distributor auger, drive, see section T under grain tank distributor auger & drive

1шт.

12

SPROCKET, elevator drive slip clutch, see section S under tailings elevator drive and trough

1шт.

13

CHAIN ASSY, tailings elevator drive, see section S under tailings elevator drive and trough

1шт.

14

SPROCKET, tailings elevator drive idler, see section S under tailings elevator drive and trough

1шт.

15

SPROCKET, tailings elevator driven, see section S under tailings elevator drive and trough

1шт.

16

SPROCKET, tailings delivery auger drive, see section S under tailings delivery auger and drive

1шт.

17

CHAIN ASSY, tailings delivery auger drive, see section S under tailings delivery auger and drive

1шт.

18

SPROCKET, tailings delivery auger drive tightener, see section S under tailings delivery auger & drive

1шт.

19

SPROCKET, tailings delivery auger driven, see section S under tailings delivery auger and drive

1шт.

20

SPROCKET, cylinder drive, see section R under standard cylinder drive

1шт.

20

SPROCKET, cylinder drive slip clutch, see section R under cylinder slip clutch and speed indicator

1шт.

21

CHAIN, cylinder drive, see section R under standard cylinder drive

1шт.

22

SPROCKET, elevator jackshaft drive, see section S under grain elevator drive

1шт.

23

SPROCKET, straw rack drive idler, see section R under straw rack and drive

1шт.

24

CHAIN ASSY, elevator jackshaft drive, see section S under grain elevator drive

1шт.

25

SPROCKET, jackshaft drive tightener, see section S under grain elevator drive

1шт.

26

CHAIN ASSY, straw rack drive, see section R under straw rack and drive

1шт.

27

SPROCKET, straw rack drive tightener, see section R under straw rack and drive

1шт.

28

SPROCKET, straw rack driven, see section R under straw rack and drive

1шт.

29

SPROCKET, tailings elevator drive, see section S under tailings elevator drive and trough

1шт.

30

SPROCKET, straw rack drive, see section R under straw rack and drive

1шт.

31

SPROCKET, elevator jackshaft driven, see section S under grain elevator drive

1шт.

32

SPROCKET, cylinder drive tightener, see section R under standard cylinder drive

1шт.
